DW7020H
FYI
Silver
1PCS
China
By TT or LC
APPLICATION:

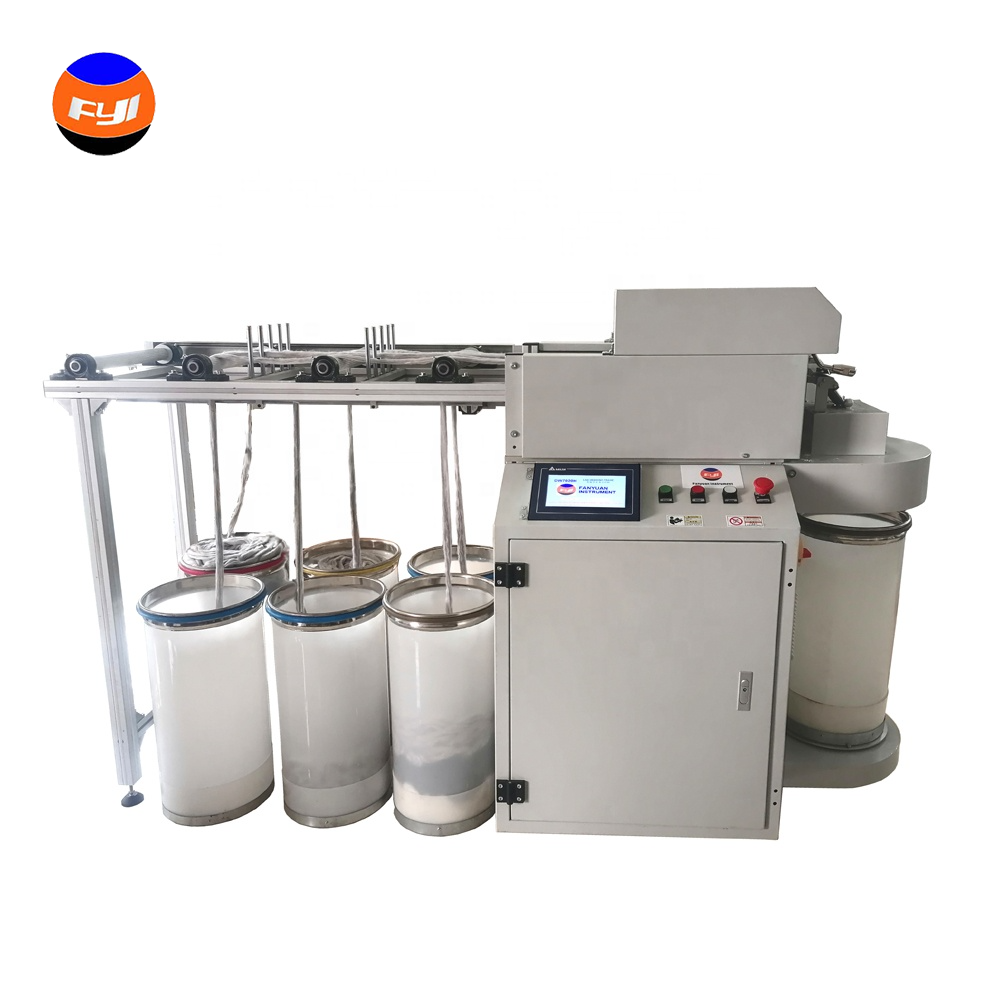

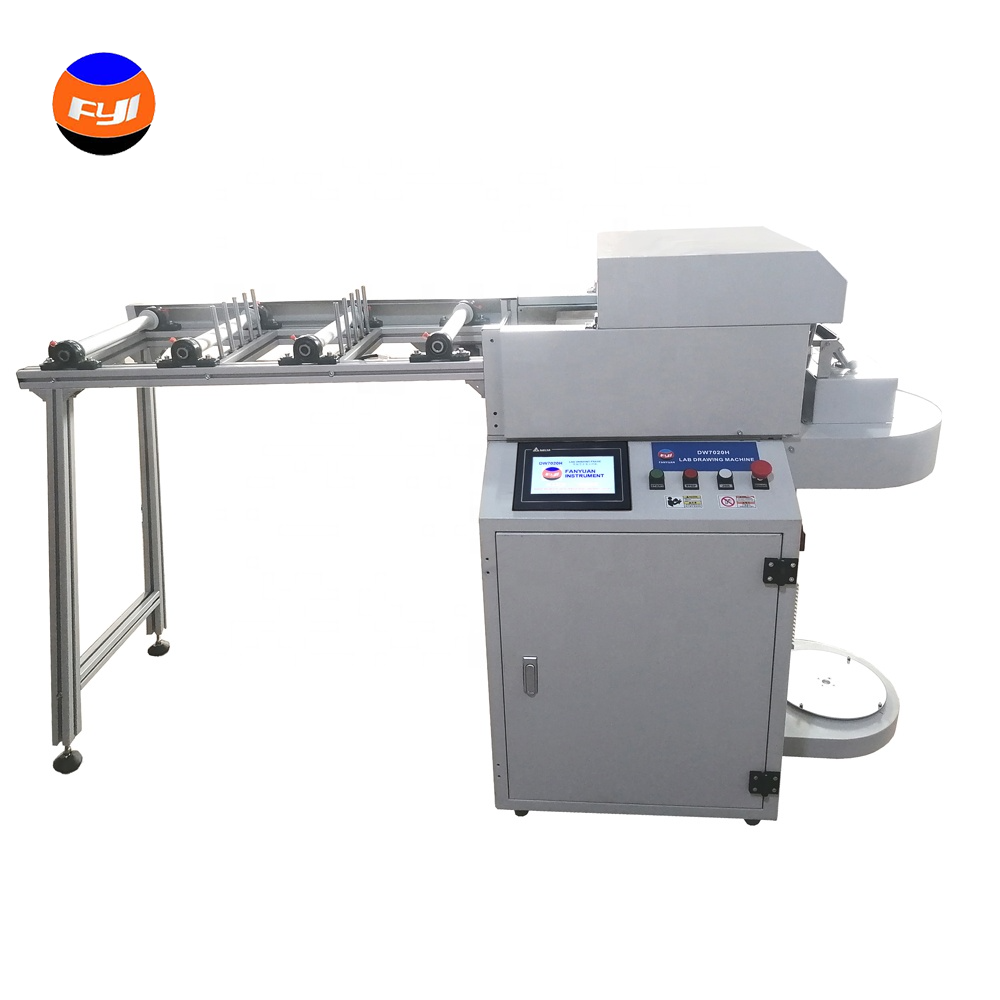

Drawing Frame Machine of Spinning Mills And Laboratories in Textile DW7020H
is suitable for sheep wool, cashmere, Laboratory wool drawing frame is used to make drawn sliver
from carded sliver.It is widely used in universities and researching for wool spinning system ..
drawing frame machine DW7020H is applicable for drafting fibers of bending cotton sliver to
be straight and improve the degree of uniformity of cotton sliver through combining.
It’s the ideal system for teaching, researching, etc.
FEATURES:
FEATURES:
1.Delta brand PLC + touch screen control, easy to learn and operate;
2.Automatically and positively feed card sliver;
3.Use standard can coiler to output cotton sliver;
4.Use touch screen as man-machine interface, input technical parameters and show machine running state
by touch screen;
5. Multi-functional design, easy to clean, set and maintain.
KEY SPECIFICATION:
Control mode | Touch screen & Delta brand PLC |
Applicable fiber length | 22~50mm |
Doubling(X) | Up to 8 |
Draft multiple | 4~12 times |
Drafting type | Three over three downward pressure bars with curvilinear draft of guiding upper roller |
Draft roller size | Φ45/35/35mm (front/middle/back) |
Roller pressure mode | |
Feed & Output | Feed card sliver, output drawn sliver |
Feeding mode | Positive and active feeding |
Sliver output speed | 4~24m/min, adjustable |
Capacity | 0.25~0.6kg/h |
Can size | Φ250×550mm |
Power supply | AC220V, 50Hz |
Dimensions | 2,050*660*1,300mm(L*W*H) |
Net weight | 300kg |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
2. | Can | 8 pcs |
