DW7021G
FY
90248000
White
1pcs
made in China
By TT or LC
15-20 days
APPLICATION:

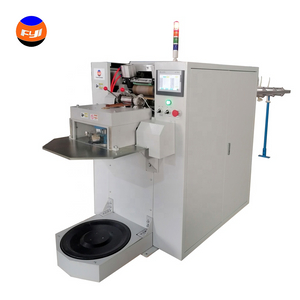

Wool Processing Equipment Wool Combing Machine DW7021G is is frequently used in the
long fiber spinning system, such as worsted spinning system.
The shorter fibers are further removed and the longer fibers are aligned as parallel as possible. It also helps to remove any impurities left during the carding process.
Wool Processing Equipment Wool Combing Machine is one of the most important equipment in the worsted fiber processing system. The main task of the needle-comb process is to improve the uniformity of the middle and long fiber in the sliver by means of multi-merging and drawing.
It cannot be spun directly, especially in the worsted spinning system. If directly use such sliver on combing machine, it is easy to cause fiber damage as well as reduce the rate of production.
In order to improve the combing process, the Lab Wool Gilling Machine is frequently used in the former
spinning process.It is small scale wool processing equipment
KEY SPECIFICATION:
Control mode | PLC & Touch screen |
Applicable fiber length | 50~220mm |
Doubling | Max. 8 |
Draft multiple | 3~15 |
Drafting type | Single zone cross need plate draft |
Feeding | Sliver (or web, please specify when order) |
Output | Sliver (or web, please specify when order) |
Needle gauge | 7pcs/cm |
Number of need plate | 88pcs |
Max. times of beating | 800/min |
Max. feeding quantity | 60g/m |
Front roller output speed | 5~30m/min, adjustable |
Auto-stop device | Door open auto-stop, output break auto-stop |
Power supply | AC220V, 50Hz |
Dimensions | Main machine with coiler: 180*90*164cm (L*W*H) Feeding frame for sliver: length 170cm |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
