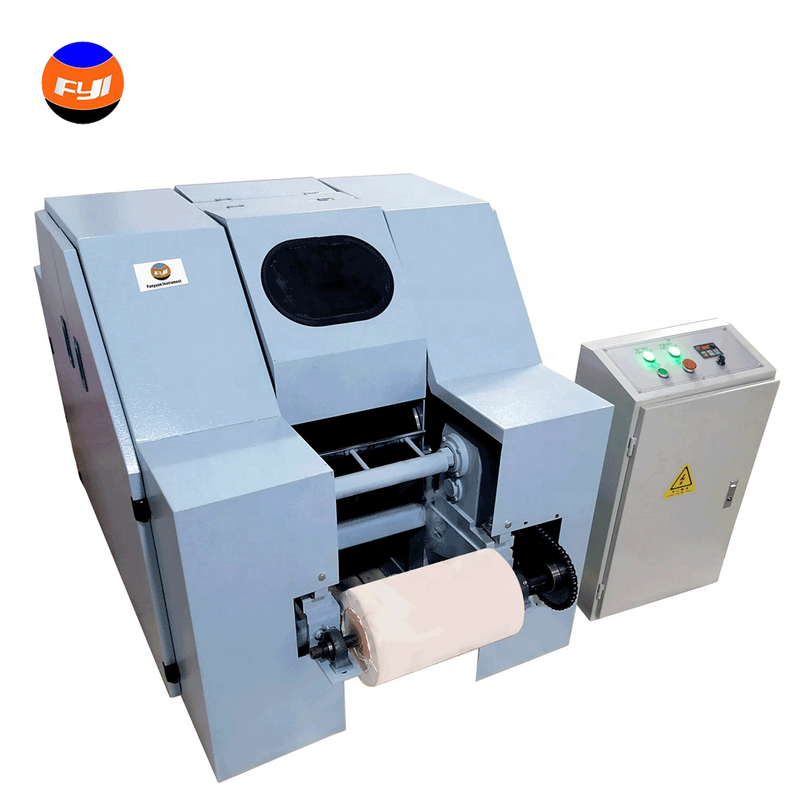

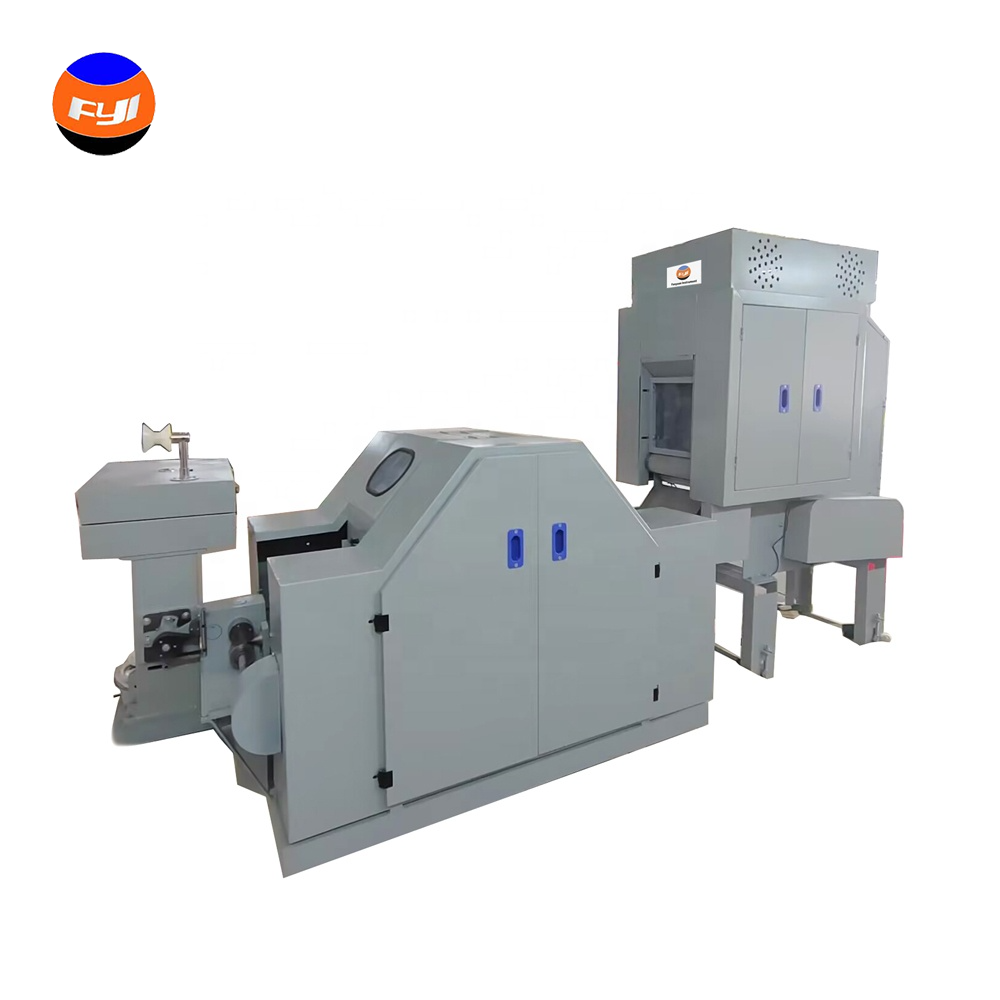

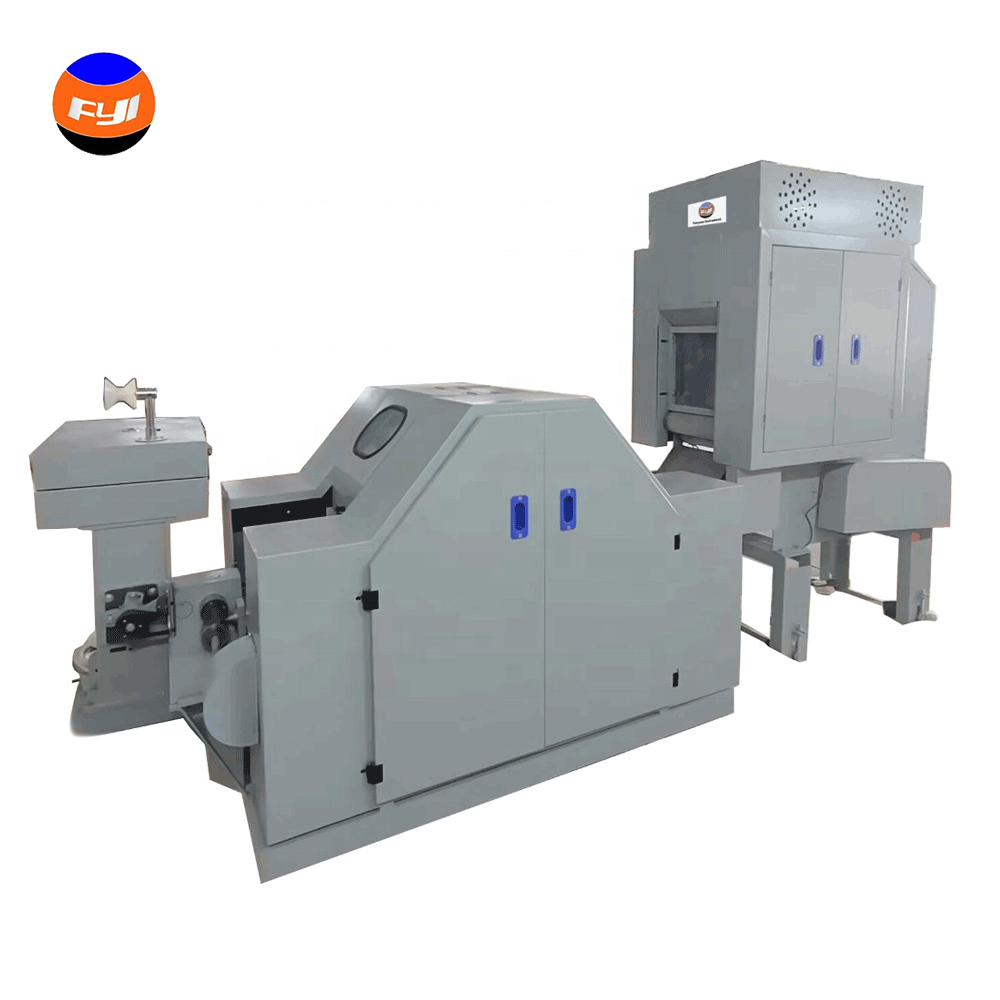

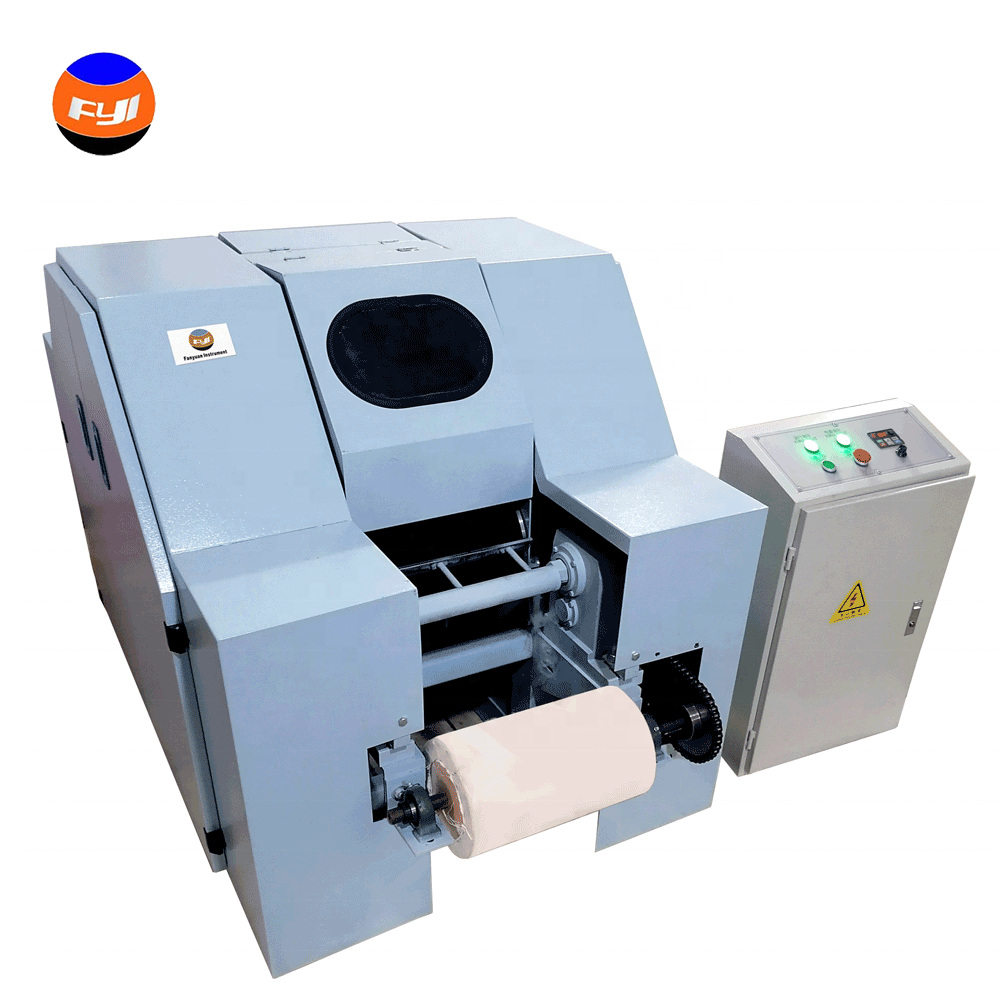

Wool Carding Machine or Cotton Carding Machine in Spinning for Fiber Semi-Worsted Mills and Textile Laboratories DW7010M is used to comb a variety of clean cotton, wool, and chemical fiber and so on into web or sliver, for woolen mills, semi-worsted mills, material factory and other special carding
DW7010M
FYI
White
1pcs
China
By TT or LC
Application
Wool Carding Machine or Cotton Carding Machine in Spinning for Fiber Semi-Worsted Mills
and Textile Laboratories DW7010M is used to comb a variety of clean cotton, wool, and chemical
fiber and so on into web or sliver, for woolen mills, semi-worsted mills, material factory and other special
carding .This Carding Wool machine is mainly work with Cylinder,working roller to open .
After output by stripping roller,you can get the dehaired wool for wool batt (web).
You can use this this carding machine to remove andruff and other impurities .
This Sheep Wool Machine work effect is perfect.
This Carding Wool machine is mainly work with Cylinder,working roller to open and card.
After output by stripping roller,you can get the dehaired wool for wool batt (web).
You can use this this carding machine to remove andruff and other impurities .
This Sheep Wool Machine work effect is perfect. and
FEATURES of Carding Machine in Spinning for Fiber Semi-Worsted Mills
and Textile Laboratories
(1) The Wool Carding machine is three stripper rollers device .
(2) Wool Carding machine is used to remove coarse wool and impurities.
(3)
Installation in customer's lab Training in FYI showroom
The frame parts are composed of a frame and a wall board .
(4). Additive licker-in carding segment
(5). Doffer braked in short time
(6). Doffer driven by synchronous belt
(7). Latest model coiler
(8). Closed cover with right and left side
(9) The working roller and stripping roller parts will working with cylinder, to open the wool again more fluffy.
(10) The chopper part is composed of a chopper arm, chopper holder and a chopper blade,
which is the main used to strip the wool from doffer.
Key Specification
Working Width | 360mm |
Diameter of cylinder | φ450mm |
Diameter of doffer | φ220mm |
Diameter of licker-in | φ165mm |
Diameter of working roller | φ110mm |
Diameter of stripping roller | φ90mm |
Carding speed | Frequency control |
Output mode | Web or sliver |
Max. fiber length | 100mm |
Output capacity | About 1kg/h |
Hopper wording width | 360mm |
Hopper belt motor power | 0.75 KW |
Hopper beater motor power | 0.75KW |
Carding main machine power | 1.5KW |
Power supply | AC220V, 50Hz |
Dimension (L×W×H) | Output web: Main machine: 2,010×1,050×1,030mm Output sliver: Main machine: 2,060×1050×1,030mm Control box: 460×250×750mm Can coiler: 820×500×1,020mm Hopper: 1,380×790×2,130mm |
Net weight | Output web: Main machine with control box: approx. 530kg Output sliver: Main machine with control box, hopper and can coiler: approx. 1300kg |
Standard configuration
No. | Item | Quantity |
1. | Main machine | 1 set |
2. |
