DW7091A
FYI
1PCS
China
By TT or LC
APPLICATION:

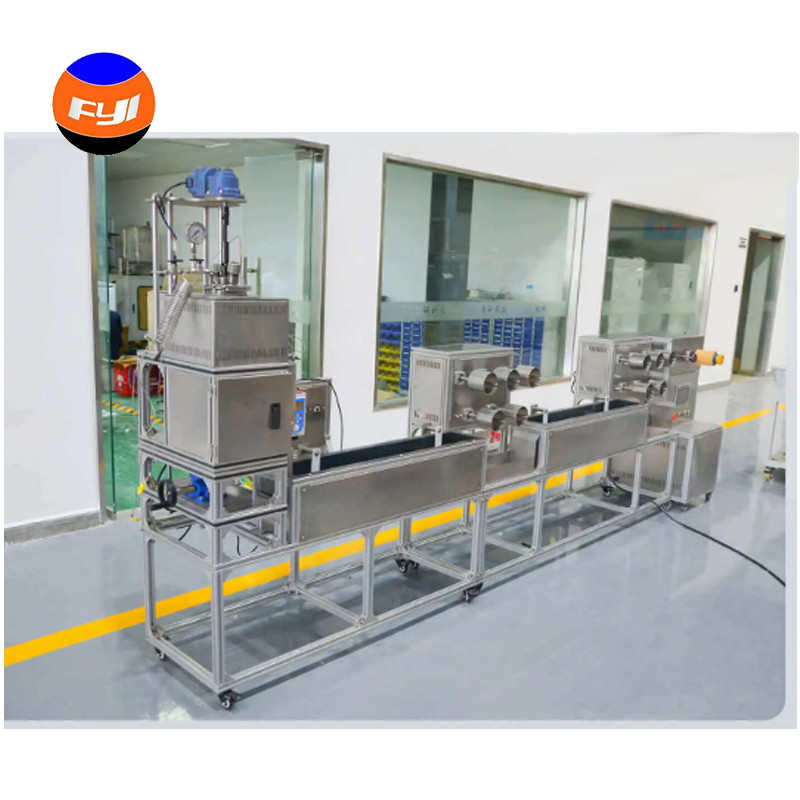

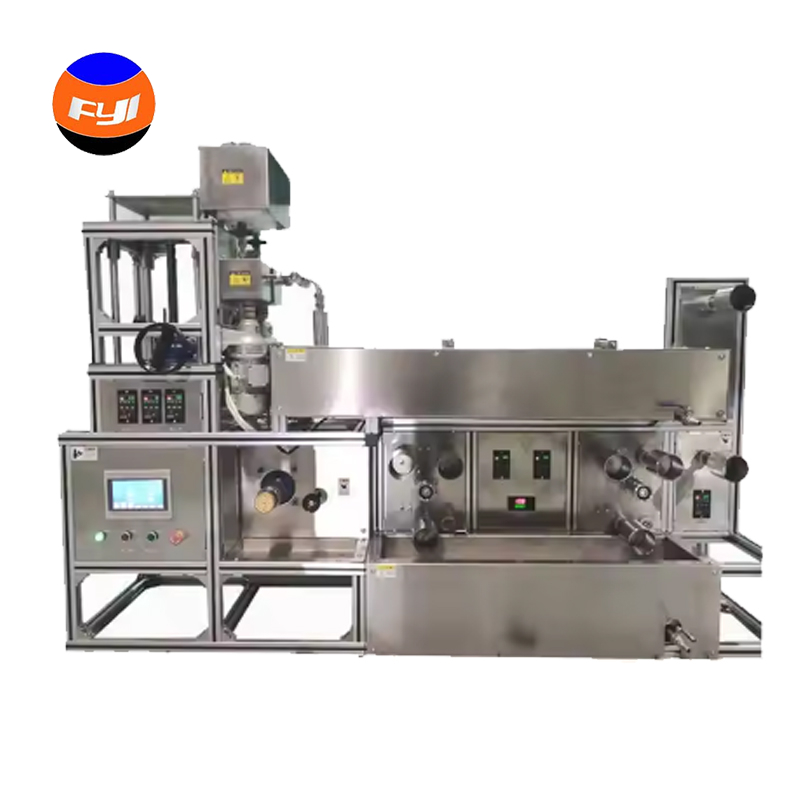

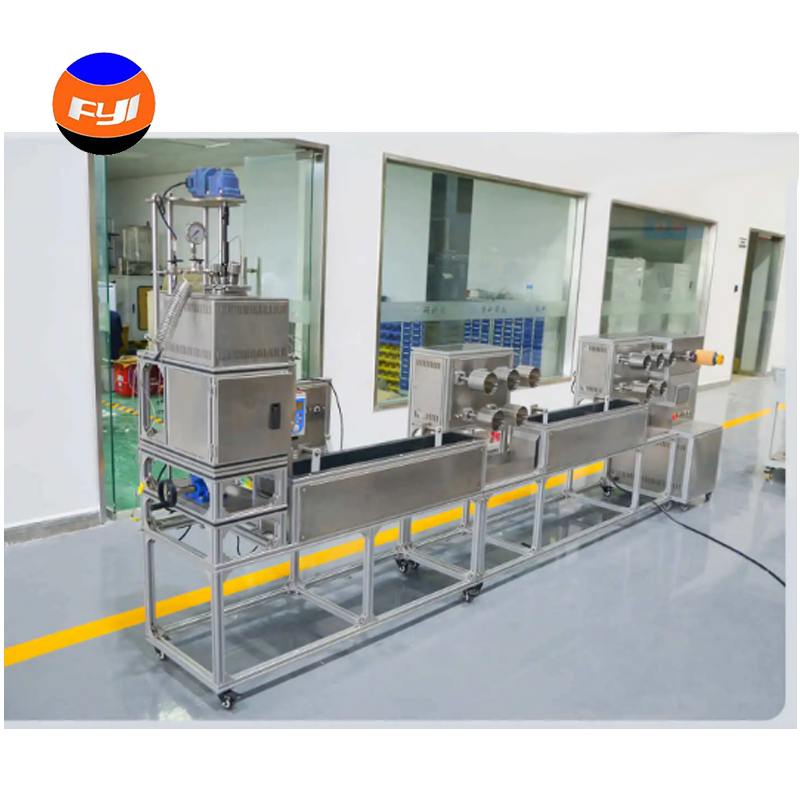

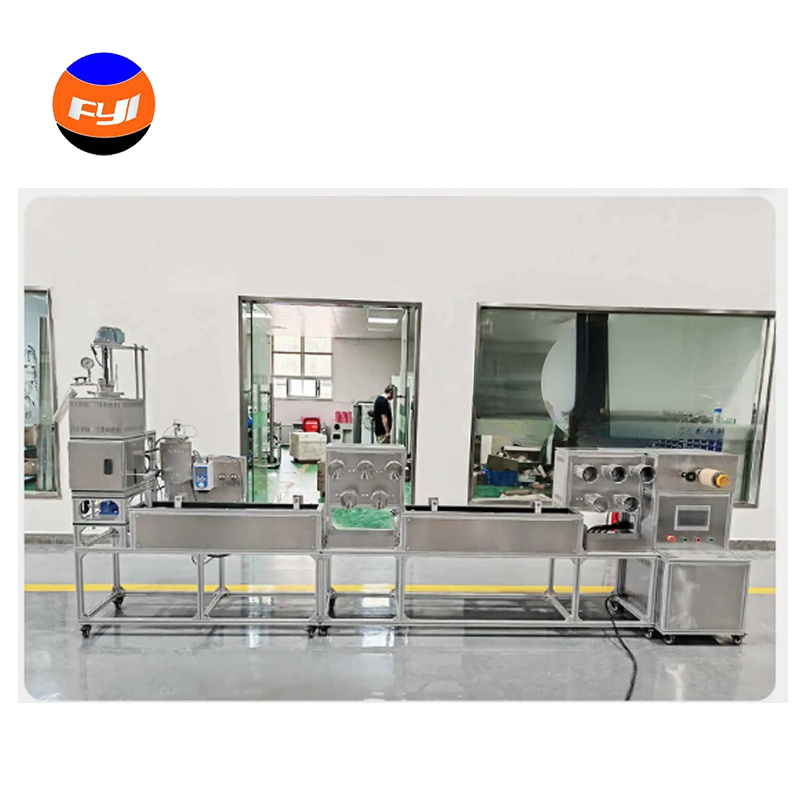

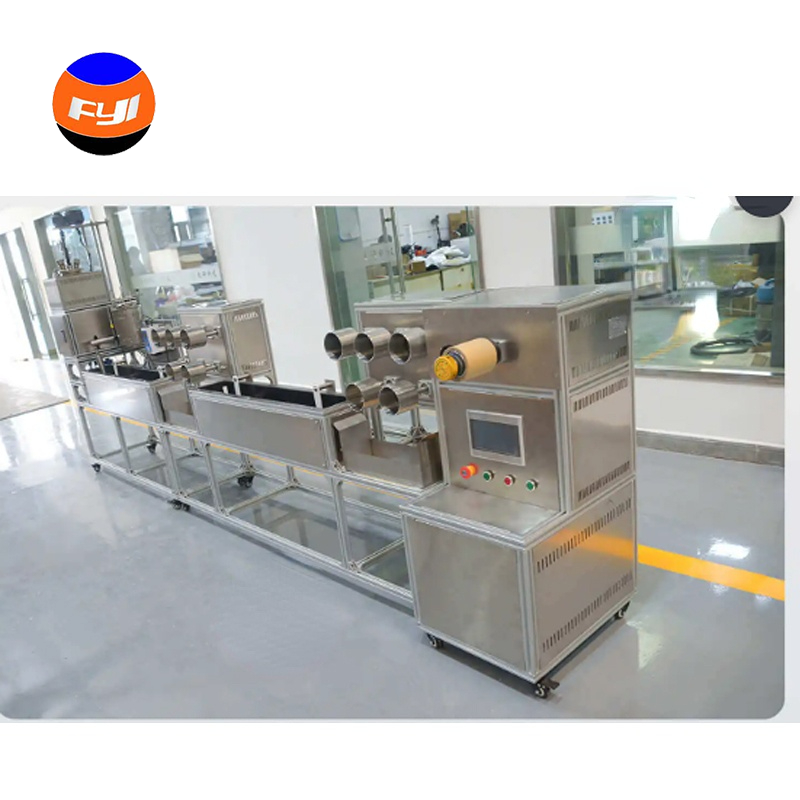

Multi-layer Wet Spinning Machine Milk Fiber Carbon Fiber Spinning Machine
DW7091A is suitable for preparation of various chemical fiber materials including polyacrylonitrile,
polyvinyl alcohol, rubber, chitin, vinylon, aramid, acrylic, polyvinyl chloride, ordinary viscose.
Features:
1. The spinning machine mainly consists of raw material tank (with heating, stirring), metering pump (heating), filter screen, spinneret cap, coagulation bath (with heating), water bath (with heating), drafting roller, heating box (drying/setting) and winding roller;
2. Touch screen control and display interface;
3. Real-time acquisition and control the temperature of the raw material tank, metering pump, coagulation bath, water bath and heating box;
4. Real-time acquisition and display the raw material tank pressure;
5. Real-time display the flow of metering pump;
6. Roller and metering pump frequency control.
KEY SPEICIFCIAOTN :
No. | Item | Detailed specification | Quantity |
1. | Spinning kettle | 1. Tank material: 316L 2. Tank volume: 2 L 3. Interface configuration: upper feed, bottom | 1set |
2. | Core liquid system | 1. Structure: 2L storage tank+ pump 2. Flow rate: 0-130ml 3. Heating temperature of storage tank: ≥ 100 ℃ 4. Material: 316L | 1set |
3. | Bottom filter | 1. Material: 316L stainless steel 2. Filtration accuracy: 140um 3. Y-type filter | 1 set |
4. | Pump front end connection pipe | 1. Material: 316L stainless steel 2. Use: Connect the kettle filter to the metering pump input end | 1 PCS |
5. | Measurement system | 1. Metering pump flow: 3cc/rpm 2. Transmission mode: cycloidal reducer motor 3. Motor power: 370W 4. Reduction ratio of reducer: 1:59 | 1PCS |
6. | Pump back end connection tube | 1. Material: 316L stainless steel 2. Use: metering pump output end to candle filter | 1PCS |
7. | Candle filter | 1. Material: 316L stainless steel 2. Filtration accuracy: 6.5-13um | 1PCS |
8. | Gooseneck | 1. Material: 316L stainless steel 2. Size: Outer diameter 12mm inner diameter 6mm | 1pcs |

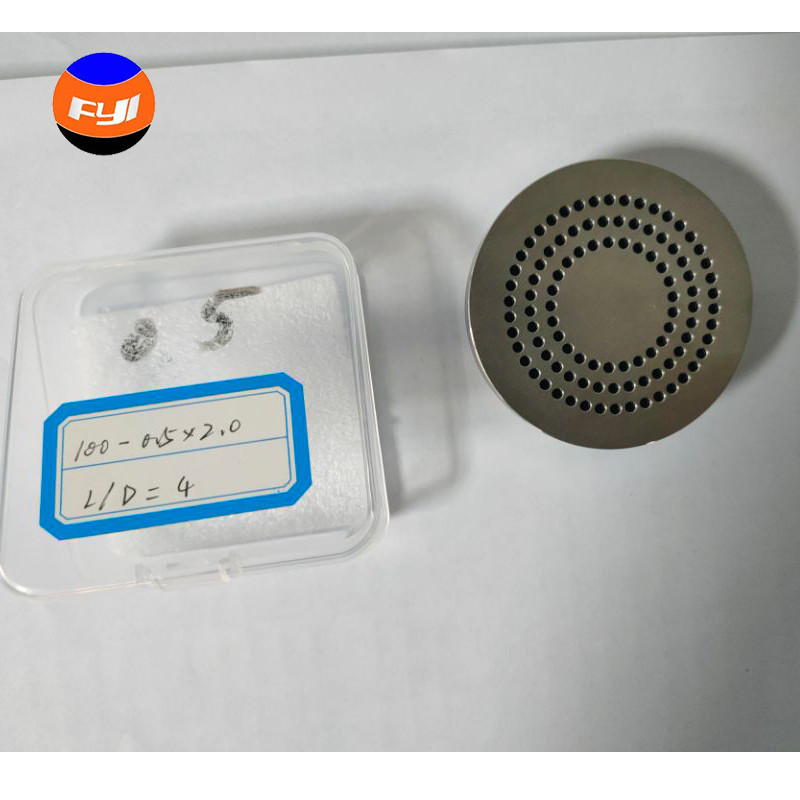

9. | Spinneret | 1. Material: 316L stainless steel 2. Composition: gooseneck connecting seat, pressing cap, sealing gasket, spinning tube | 1set |
10. | Coagulation bath/water bath | 1. Material: 316L stainless steel 2. Dimensions: 1000x160x160 3. Inlet and outlet diameter DN15 4. With two sets of press roller, temperature sensor port | 2 sets |
11. | Hot water circulation system | 1. Material: 316L stainless steel 2. Structure: closed hot water tank; 3. Temperature control range: RT-90℃, accuracy: ±0.5℃ 4. Circulation mode: high temperature and corrosion resistant circulation pump | 1set |
12. | Intermediate winding/drawing roll | 1. Active speed regulating winding roller 2. With in and out of the deviation correction driven wheel 3. Frequency control motor | 1set |
13. | Rewinding | 1. Open the paper tube quickly 2. Common cabling device 3. Frequency conversion deceleration speed regulation 4. Winding speed: ≤40m/min | 1set |
14. | Touch screen control | 1. Control mode: PLC+ touch screen + software 2.. Integrated centralized control box, 3.. Centralized touch interface: temperature control/temperature measurement/flow/pressure/speed 4. Data can be saved and remote transmitted 5 .380V power supply | 1set |
15. | Bottom frame of bench, | 1. Material: 30x30 aluminum alloy frame 2. Overall design, section connection, | 1 m |
