DW7020H
FYI
Blue
1PCS
China
By TT or LC
10-30 days
APPLICATION:
Draw Frame Machine for Spinning Lab DW7020H is parts of Mini Lab Sinning Machine .
Fiber Drawing Frame Machine is applicable for drafting fibers of bending cotton sliver,
It’s the ideal system for teaching, researching, etc.
Laboratory Drawing Frame machine is drafting fibers of bending cotton sliver to be straight and improve the degree of uniformity of cotton sliver through combining.
This mini drawing frame has small dimension with PLC & touch screen control,
simple to operate and adjust, so as to suitable for schools, research institutes and R&D centers.
FEATURES:
1. With four up and four down drafting structure;
2.Use can coiler to output cotton sliver;
3.Controlled by small size, high speed, and high-performance PLC control system;;
4. High-efficiency imported frequency converter;

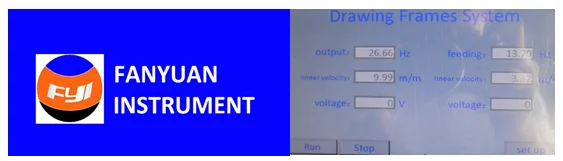

5. Use touch screen as man-machine interface, input technical parameter and show machine run state by touch screen;
6.Aluminum profile body frame ,free to move;
7. Special design,With Four rollers with different speed .
8. Equipped with More spare parts
9. Multi-functional design, easy to clean, set and maintain;
KEY SPECIFICATION:
Suitable fiber length | 21 to 42mm (cotton or chemical fiber) |
Output per hour | Approx. 0.25-1kg |
Max sliver speed | 2~16m/min, continuous adjustable |
Roller size | Φ35mm |
Doubling(X) | Up to 8 |
Draw type | 4 rollers 2 straight line drawing |
Total draw ratio | Approx. 2-100 times |
Delivery can | Φ100*200mm |
Feed can | Φ250*530mm |
Roller pressure mode | Spring-weighted |
Feed type | Sliver, cotton rolls |
Output type | Sliver, cotton rolls |
Output speed | 2-16m/min |
Control system | Controlled by small size, high speed, and high-performance PLC control system |
Dimension | 1200×800×1200mm (L×W×H) |
Power | 600W |
Dimension | AC 220V/380V, 50/60Hz |
Standard configuration:
No. | Item | Quantity |
1 | Main machine | 1 set |
2 | Can | 5pcs |
