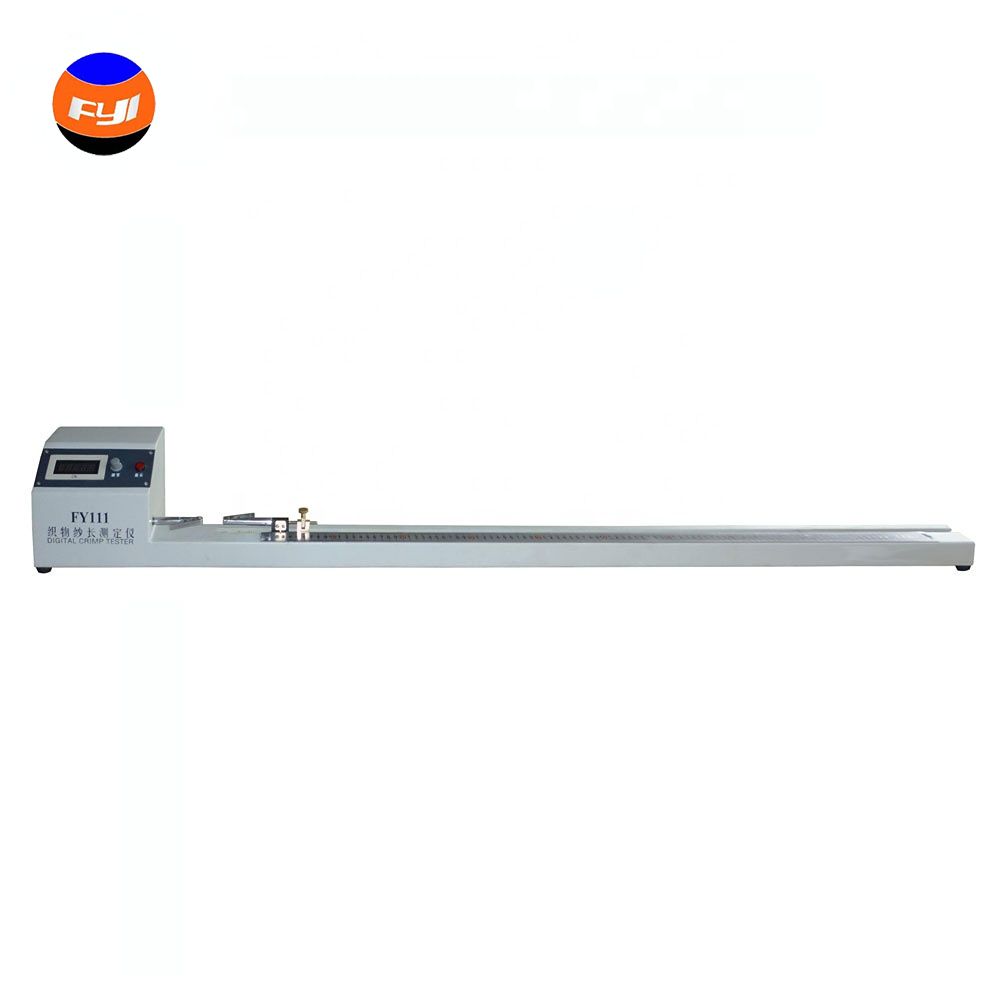

ASTM D3833 Digital Yarn Crimp Tester FY111 is used to measure the stretched length, yarn crimp or take-up of yarns detached from fabrics, under specified tension conditions
FY111
FYI
Grey
1PCS
China
APPLICATION:
ASTM D3833 Digital Yarn Crimp Tester FY111 is used to measure the stretched length,
yarn crimp or take-up of yarns detached from fabrics, under specified tension conditions
Detach the yarn from a piece of given-length fabric; straighten it by a tension
and measuring its length. To calculate the crimp in yarn affected by knitting or weaving, to determine actual yarn usage.
RELATED STANDARDS:
STANDARDS | ISO 7211 | ASTM D3883 | GB/T 29256.3/5 |
Note: this Yarn Crimp Tester can conform to but not limit to the standards above, for more standards conformance, please contact us.
FEATURES:
Manual testing mode, simple operation;
Equipped with two tension kits, can satisfy test requirement of various yarns;
Equipped with reflection mirror and calibration scale, easy to check the length is correct or not.
KEY SPECIFICATION:
Scale length | 1,000mm |
Length accuracy | 1mm |
Calibration scale length | 150±0.05mm |
Range of tension | 0~35cN, 0~175cN |
Dimensions | 1,250×90×60mm (L×W×H) |
Weight | 5kg |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
2. | Calibration scale | 1 pc |
3. | Tension kit | 2 sets |
