YG086D OR YG086E
FYI
White
1PCS
China
By TT or LC
APPLICATION:
ISO 2060, ASTM D1907/2260, BS 2010 Warp Reel Electronic Wrap Reel Machine YG086 serials
is designed to produce up to 6 skeins of yarn of a pre-determined length and number of turns for
count or strength testing. Complete with yarn package stand and pre-tension device, fitted with
pre-determined counter.
STANDARD
STANDARDS | ISO 6939 | ASTM D1907 |
Note: this Electronic Warp Reel can conform to but not limit to the standards above, for more standards conformance, please contact us.
FEATURES:
1. The innovative design concept makes the instrument structure more compact than conventional models;

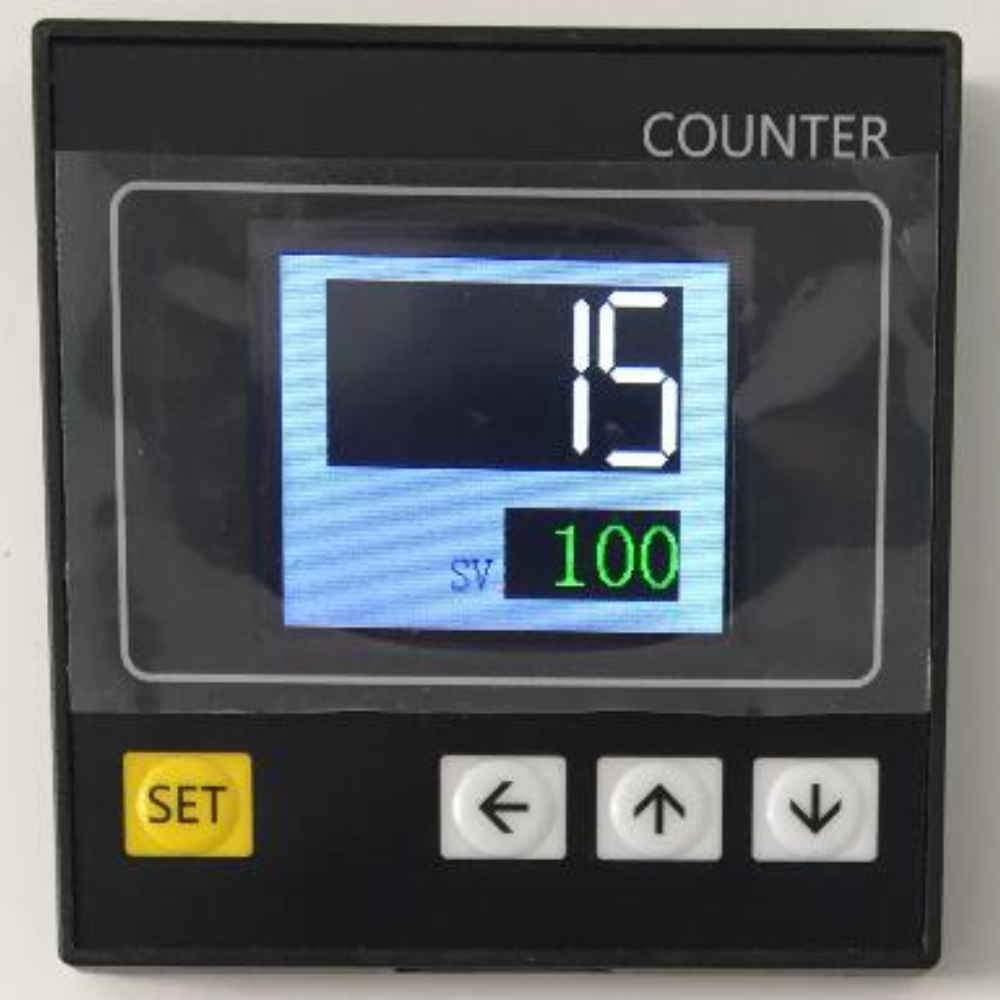

2. Microcomputer control, LCD display. The number of winding turns can be set and the set number of turns can be accurately reeled (the upper row shows the actual number of turns, the lower row shows the set number of turns);
3. DC servo motor is adopted, which runs smoothly and reliably without noise;
4. The parts through which the yarn passes are made of corrosion-resistant materials such as stainless steel, aluminum alloy or ceramics, which are durable and rust-free.
KEY SPECIFICATIONS:
Model No. | YG086D | YG086E |
Reel circumference | 1,000 mm (metric system) | 54 inches (1.5 yard) (English system) |
Working position no. | 6 | |
Rotating speed of reel | 30~250RPM (stepless adjustable) | |
Number of turns | 1~9999, LCD display | |
Tension range | 0~100cN | |
Reciprocating distance | 35mm | |
65mm | ||
Power supply | AC220V, 50Hz | |
Dimensions | 780×610×500mm(L×W×H) | |
Weight | 40kg | |
