SPIN6000
FYI
Blue
1PCS
China
By TT or LC
15-20 days
APPLICATION OF Automatic Yarn Evenness Tester for Yarn And Sliver SPIN6000
Yarn evenness is the most important parameter that affects fabric appearance.
SPIN6000 Series Yarn Evenness Tester adopts capacitance detection to test the evenness of sliver, roving and spun yarn. It can quickly measure and analyze linear density (mass) variations and defects, realize high efficiency and accuracy as well as excellent stability and consistency.

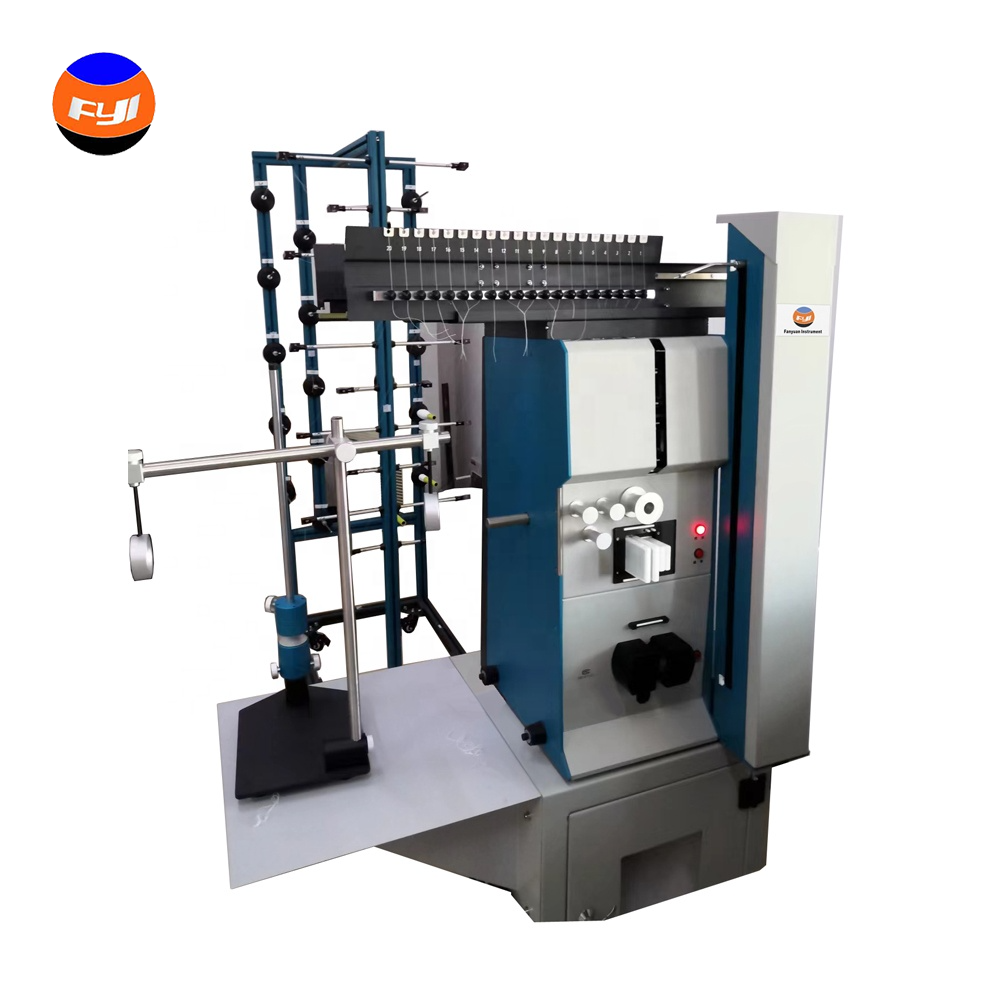

Automatic Yarn Evenness Tester SPIN6000
1.Output thin places, thick places and neps for 12 sensitivity levels in yarns.
Ø Thin places: -30%, -40%, -50%, - 60%
Thick places: +35%, +50%, +70%, +100%
Ø Neps: +140%, +200%, +280%, +400%

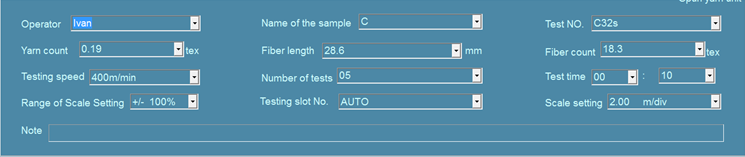

2.The testing slot can be chosen automatically after users input the yarn count, definitely improve the test efficiency and avoid mistake.

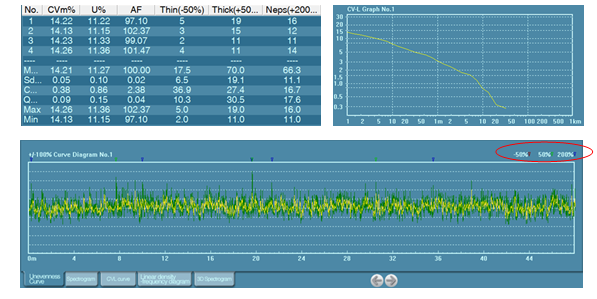

3.. Unevenness curve can be saved and marked out the position of yarn defects on it.
4..Unique CV-L curve analysis can make real-time quantitative analysis for yarn’s aperiodic unevenness and help users trace back to the produce process.
5.. Powerful statistical and analysis function can provide users annual and monthly product quality graphics and trend, which is the basis of scientific management.
SPECIFICATIONS OF YARN EVENNESS TESTER:
No. of capacitance testing slot: | 4 |
Yarn count range: | 4 tex ~ 12 ktex |
Test speed: | 4, 8, 25, 50, 100, 200, 400, 800 m/min |
Test time: | 10 sec ~ 20 min, can be settable |
Unevenness curve scale range | +/- 100%, +/-50%, +/-25%, +/-12.5%, +/-6.25% |
CV%, U% range: | 0.2% ~ 100% |
Variation-length curve: | Cutting length 1cm ~ 1000m |
Output four DR% value: | DR (1m, +5%), DR (1m, -5%), DR (20cm, +35%), DR (20cm, -30%) |

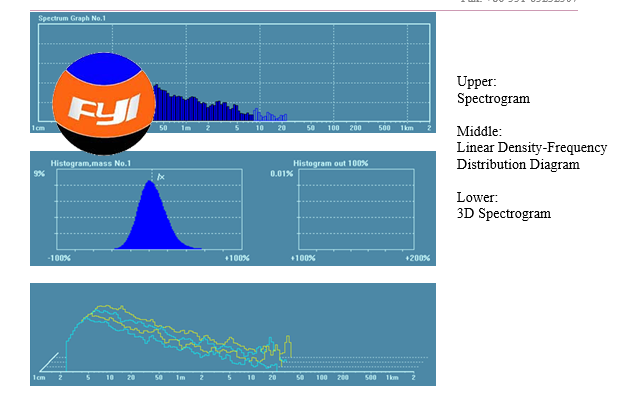

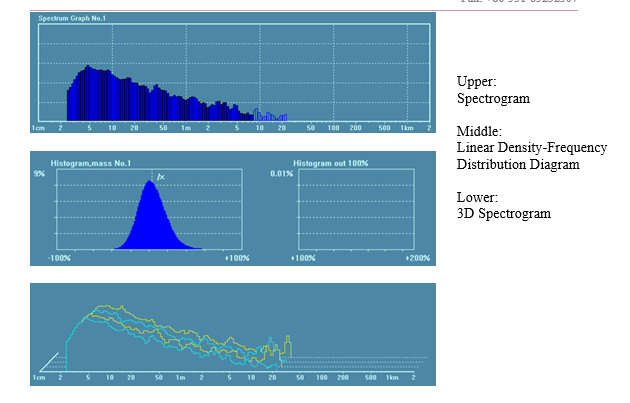

Spectrogram: | 170 channels |
Wavelength range: | 1cm ~ 2000m |
Linear density histogram: | -100% ~ +100%, +100% ~ +200% |
Spun yarn creel capacity: Number of measurements in a single set | Max. 20 ≤20, two variety tests can be achieved in one set |
Power supply: | AC 220V, 50Hz, ≤500W |
