SPIN5600
FYI
Blue
1PCS
China
By TT or LC
15-20 days

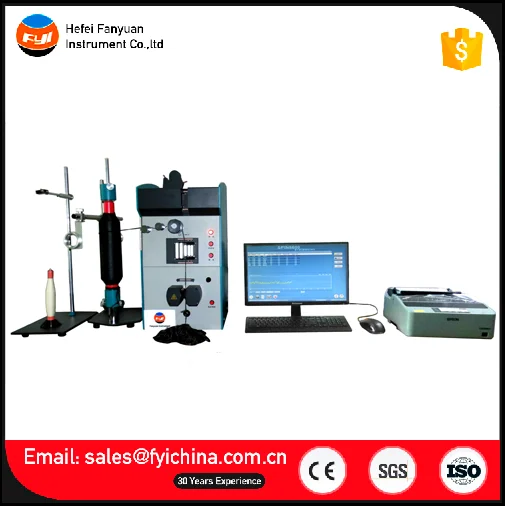

Yarn Evenness TesterAutomatic Yarn and Sliver Evenness Tester SPIN5600
APPLICATION OF Automatic Yarn and Sliver Evenness Tester :
Yarn evenness is the most important parameter that affects fabric appearance. SPIN5600 Series Yarn Evenness Tester adopts capacitance detection to test the evenness of sliver, roving and spun yarn. It can quickly measure and analyze linear density (mass) variations and defects, realize high efficiency and accuracy as well as excellent stability and consistency.
SPECIFICATIONS OF YARN EVENNESS TESTER:
Capacitance testing slot: | 4 |
Test range: | 4 tex ~ 12 ktex |
Test speed: | 4, 8, 25, 50, 100, 200, 400, 800 m/min |
Test time: | 10 sec ~ 20 min, can be settable |
CVm%, U% range: | 0.2% ~ 100% |
Variation-length curve: | Cutting length 1cm ~ 1000m |
Output four DR% value: | DR (1m, +5%), DR (1m, -5%), DR (20cm, +35%), DR (20cm, -30%) |
Spectrogram: | 170 channels |
Wavelength range: | 1cm ~ 2000m |
Linear density histogram: | -100% ~ +100%, +100% ~ +200% |
Power supply: | AC 220V, 50Hz, 300W |
Ambient conditions: | Temperature: 20±3℃, Humidity: 65±5%RH No obvious vibration and ensure reliable grounding (The temperature and humidity must be maintained stable with no frequent fluctuation, in order to avoid any influence on the test result.) |
Gross weight: | YG139C-J |
Package dimensions: | 1.2cbm |
