DW7090C
FYI
White
1PCS
China
By TT or LC
APPLICATION

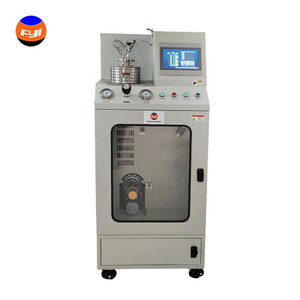

Melt Centrifugal Spinning Machine DW7090C is suitable for the test and teaching of centrifugal short fiber method of melt.
Melt Centrifugal Spinning Machine is an ideal melt spinning testing machine for
Micro-batch Intermittent centrifugal spinning test
Melt centrifugal spinning machine uses pitch-based carbon fiber or high-molecular polymer
as raw material. → The melt is formed through precision heating and temperature control. →
The quantitative and uniform melt flows into precise dropper module under the function of
stable and precise gas pressure. → The melt drops into a precise temperature control and high speed
rotating centrifugal disk through the precise dropper. → The melt passes through the annular grooves
of the centrifugal disk to form thin film. → The melt passes through hundreds of toothed grooves to
divide into several trickles. → The melt trickle flies out of the centrifugal disk and under the clamping
function of air flow, it is cooled and solidified into short fibers. → Then the short fibers are collected
or followed by netting.
FEATURES:
1.Adopt PLC + touch screen control, simple operation, high degree of automation;
2.A small amount of raw materials is needed for proofing, saving costs;
3. Adopt precision pressure control, injecting material stably;
4.Independent temperature control of three sections of material cylinder makes the material temperature more accurate;
5.The centrifugal disk is resistant to high temperature;
6. The channel of centrifugal disk adopts precise processing, stable and smooth spinning, easy to clean;
7. It can adopt enclosed collection to avoid flying apart and falling.
KEY SPECIFICATIONS
Application | Micro-batch Intermittent centrifugal spinning test |
Applicable material | CF/PA/PE/PET/PP, etc. |
Control mode | PLC + Touch screen |
Load mode | Intermittent, manual |
Load amount | 200~2,000g |
Melting mode | Three sections electric heating |
Melt temperature | 300℃/450℃ (Please specify when order.) |
Feeding mode | Gas pressure |
Pressure control | Precise pressure regulating valve |
Pressure range | <1.6Mpa |
Spinning mold | Temp-controlled centrifugal disk |
Spinning channel | High speed airflow |
Power | Max. 45KW |
Power Supply | AC380V, 50Hz, 3phase |
Dimensions | 1,200×1,200×1,500mm (L×W×H) |
Net weight | ≤120kg |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
Optional accessories:
No. | Item |
1. | Air compressor |
2. | Muffle furnace |
3. | Ultrasonic cleaning bath |
