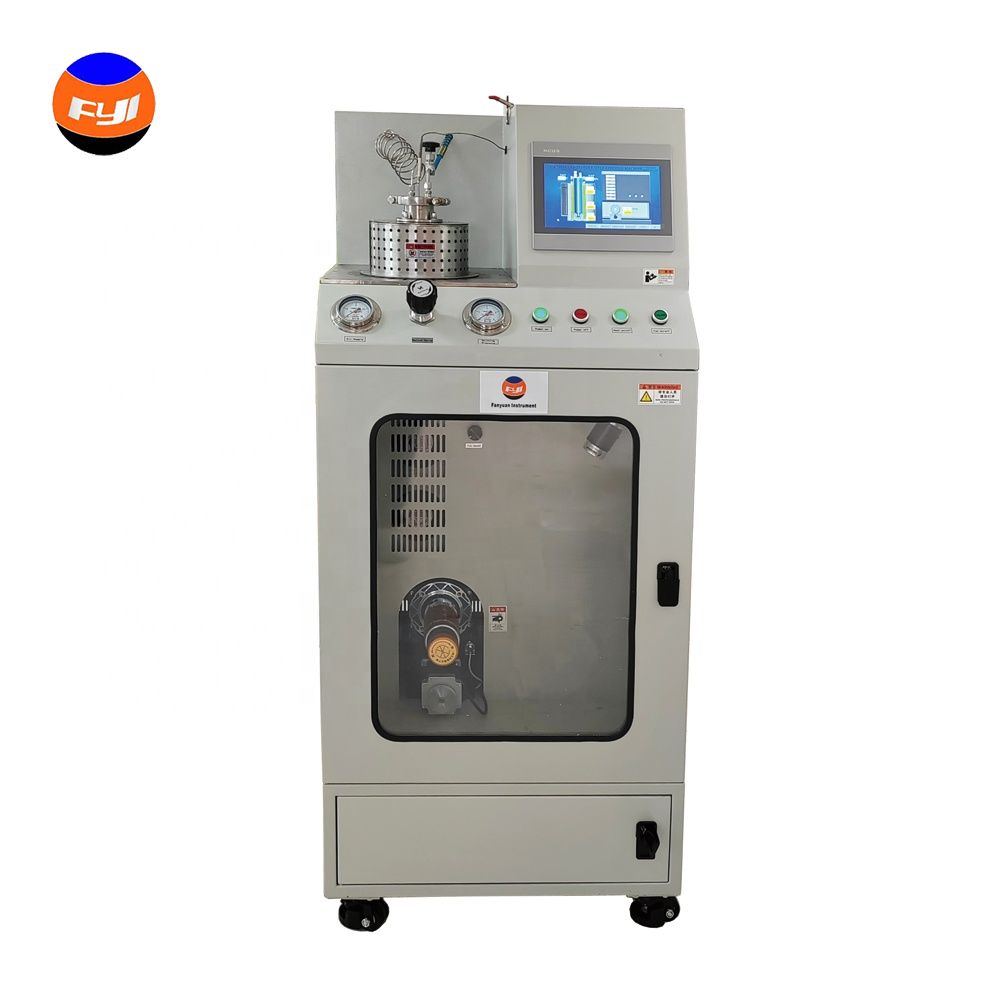

DW7090A
FYI
White
1PCS
China
By TT or LC
APPLICATION:

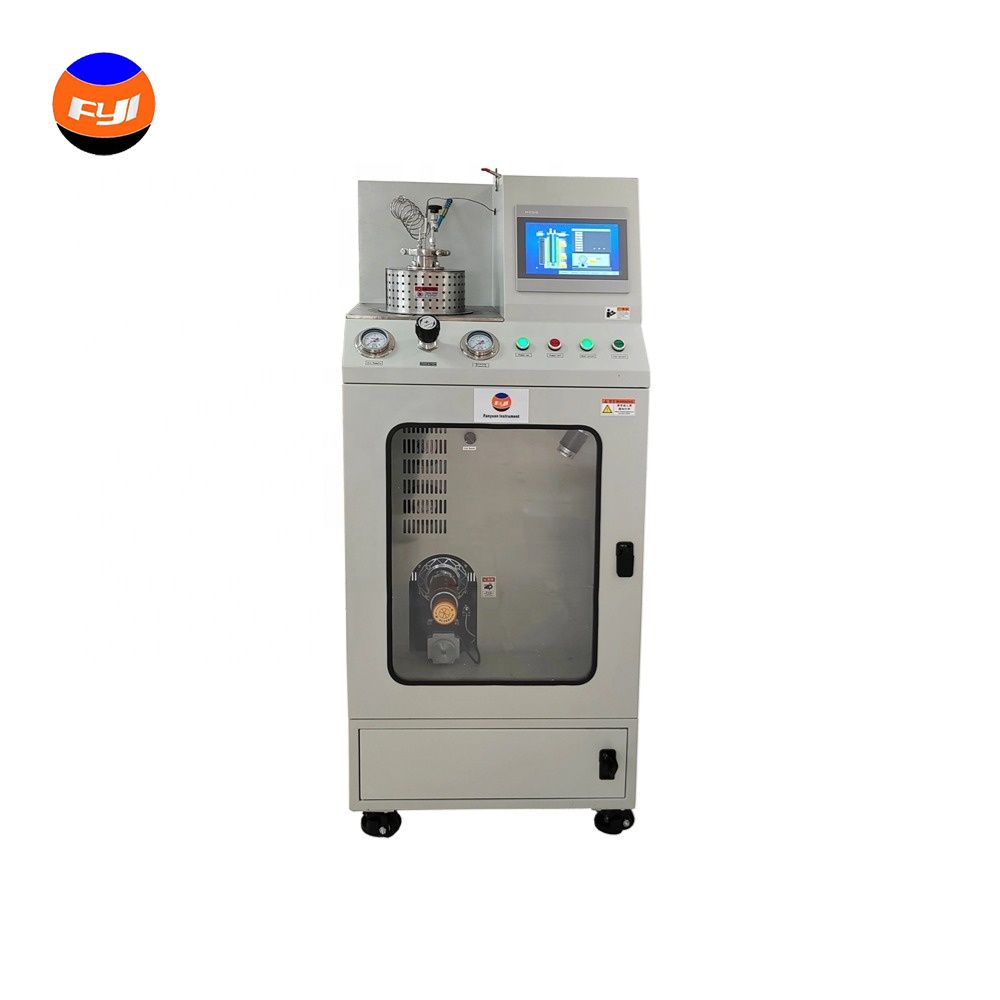

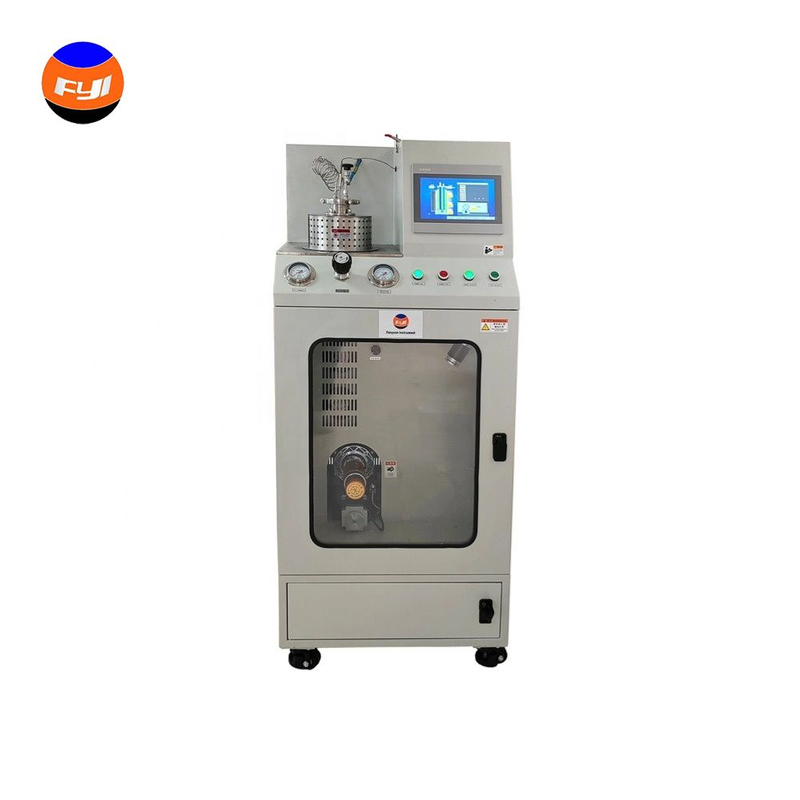

Melt Spinning Machine for Small Batch Production Test DW7091A is applicable to verify the spinning
possibility of materials with melting point below 300℃ and explore the spinning performance parameters
of materials. This machine uses high temperature copper sheathing to heat and melt the polymer sample,
and extrude it to be liquid trickle through the spinneret plate on condition of inert gas N2 pressure.
The liquid trickle is cooled and drawn to be the nascent fiber. The nascent fiber is winded onto the winding wheel.
FEATURES:
1.With a see-through organic glass door, convenient for observation;
2. The feed cylinder made of thickened 316 stainless steel, making heating more uniform;
3. The temperature of material is monitored in real time, with highest heating temperature up to 400℃, accurate controlling accuracy of ±0.5℃;
4. Extensible structure, can add melt pump, mixing function, etc.
KEY SPECIFICATIONS：
STANDARD CONFIGURATION
Rotary winding system | ||
1) Synchronous pulley drive the fiber-collecting roller (Drive ratio: 2:1) | ||
2) Speed range | 0~1400r/min, adjustable | |
3) Max. diameter of winding | 320mm (including winding roller) | |
4) Winding roller diameter | 200mm (outer diameter) | |
5) Replaceable structure | ||
Jetting device | ||
1) Total power | 3kw | |
2) High precision temperature sensor | Controlling accuracy ±0.5℃ | |
3) Highest heating temperature | 400℃ | |
4) Pressure range | ≤ 1.6 Mpa (required air source ≤ 13Mpa) | |
5) Spinneret plate | standard single hole diameter is 0.15mm Dia. 0.2mm, 0.3mm, 0.4mm, 0.5mm optional | |
Power supply Security protection | AC220V, 50Hz Overtemperature power off/overvoltage power off | |
Outside dimension | 700×750×1700mm (L×W×H) | |
Weight | Approx. 300kg | |
No. | Item | Quantity |
1 | Tools kit(Special spanner 1 + Special spanner 2) | 1 set |
2 | K Temperature sensor 3*350 | 1 set |
4 | Machine Accessories Spinner Plate :Inlet pipe | 1PCS |
4 | Machine Accessories : Spinneret plate | 1*0.15/1PC 3*0.15/1PC |
5 | Machine Accessories : Distribution plate
| 1pcs |
6 | Machine Accessories : metal box
| 1pcs |
7 | Machine Accessories : Filtering plate
| 2 pcs |
8 | Machine Accessories : Copper Gasket
| 2pcs |
9 | Machine Accessories: Graphite Gasket
| 2pcs |
10 | Machine Accessories: Paper Tube | 2pcs |
