DW7093C
FYI
White+ Orange
1PCS
China
By TT or LC
APPLICATION:

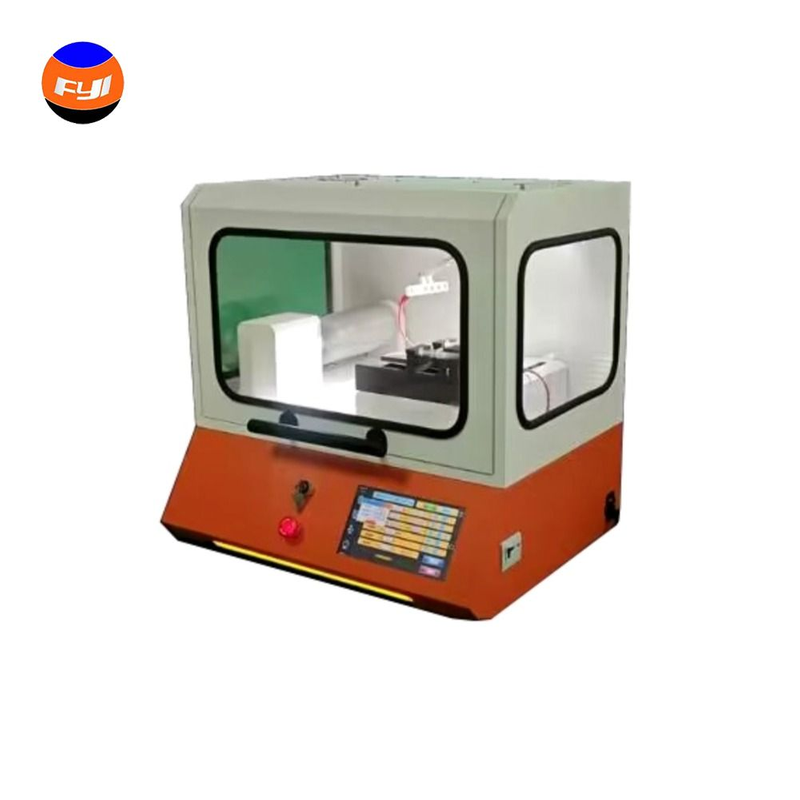

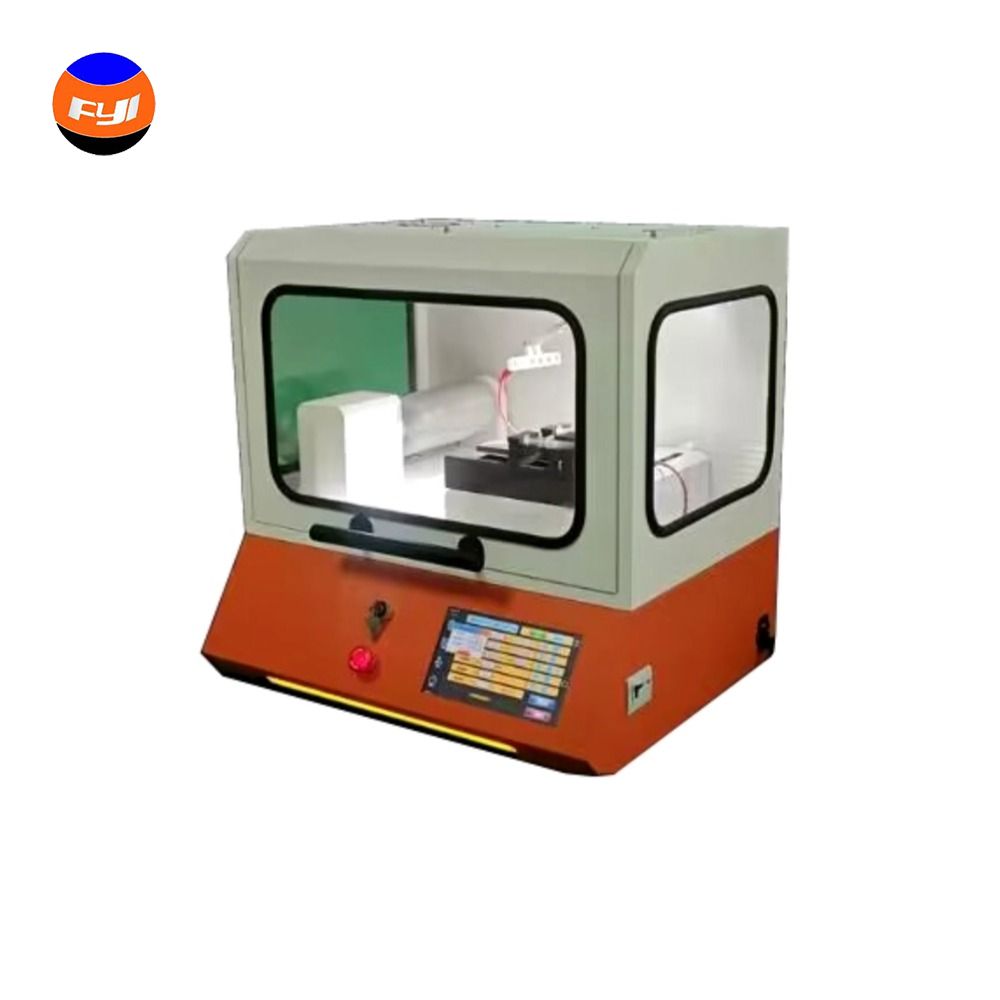

Lab Scale Electrospinning Carbon Nanofibers Equipment DW7093C is used for the preparation of nanofibers, nanospheres, etc., the equipment adopts intelligent touch control operation, with coaxial spinning, multi-needle spinning, mixed spinning and other functions, at the same time with environmental control, security protection, exhaust, lighting and other configurations,
can meet different scientific research needs, is a professional laboratory electrospinning equipment.
FEATURES:
1. Built-in dual-control dual-channel propulsion system; Two sets of injection pumps can be controlled
independently. Meet coaxial spinning, multi-needle spinning, mixed spinning and other functions;
2. The propulsion rate, the amount of propulsion fluid and the propulsion time can be freely controlled;
3. Can be used in high voltage environment, reliable insulation system, not easy to breakdown;
4. Wide range of application, syringe size: 1~30ml;
5.. Continuous adjustable speed, high precision servo control, can achieve orderly fiber collection;
6.Needle support: can be used to fix plastic steel needle, stainless steel needle, coaxial needle and other types of spinning nozzle;
7. Adjusting level: Angle can be adjusted in 360° range;
8.Reciprocating platform: reciprocating distance, reciprocating times, reciprocating speed can be set;
It can realize the functions of positioning spinning, reciprocating spinning, centering spinning;
9. Infrared heating dehumidification, quickly increase the temperature, accelerate the formation of solvent volatile fiber, and can effectively reduce the ambient humidity of the equipment, improve the spinning effect;
10. Dehumidifier (optional): Delivers dry gas to the chamber to effectively reduce humidity;
11 Built-in exhaust fan, can quickly remove organic gas in the chamber;
12. With operating lights, can observe the spinning process;
13. 10 inch man-machine interface CNC system control;
14.Intelligent control: can control the operation of high-voltage power supply, motion device, propulsion system, heating, exhaust, lighting and other components and monitor the status of each part;
15. Digital display, over-current protection, over-voltage protection, arc protection, memory, reset, actual value, set value, protected value, error code display, etc.;
16.Spinning time can be set, automatic shutdown equipment to ensure safety;
17. With parameter automatic record, save function;
18. Equipped with discharge short-circuit protection, equipped with leakage protection;
19. Grounding system and electrostatic elimination system to avoid electric shock, fire, explosion and other accidents caused by charge accumulation;
20. With inert gas access function.
KEY SPECIFICATIONS：
Speed range | 0.001～65ml/min |
Precision | 0.001ml/min |
Syringe size | 1-30ml |
Collecting drum area | 100mm×200mm |
Collecting drum area speed | 200-4500rpm |
Flat plate receiver area | 20cm×20cm, the receiving direction and angle are adjustable |
Needle hole position | 6pcs |
Hole spacing of needle support | 20mm |
Aperture of needle support | 11mm |
Reciprocating platform speed | 1～2500mm/min |
Reciprocating platform stroke | 0-200mm |
Power supply | AC220V 50Hz |
