FY401
FYI
Silver+Black
1pcs
China
APPLICATION:

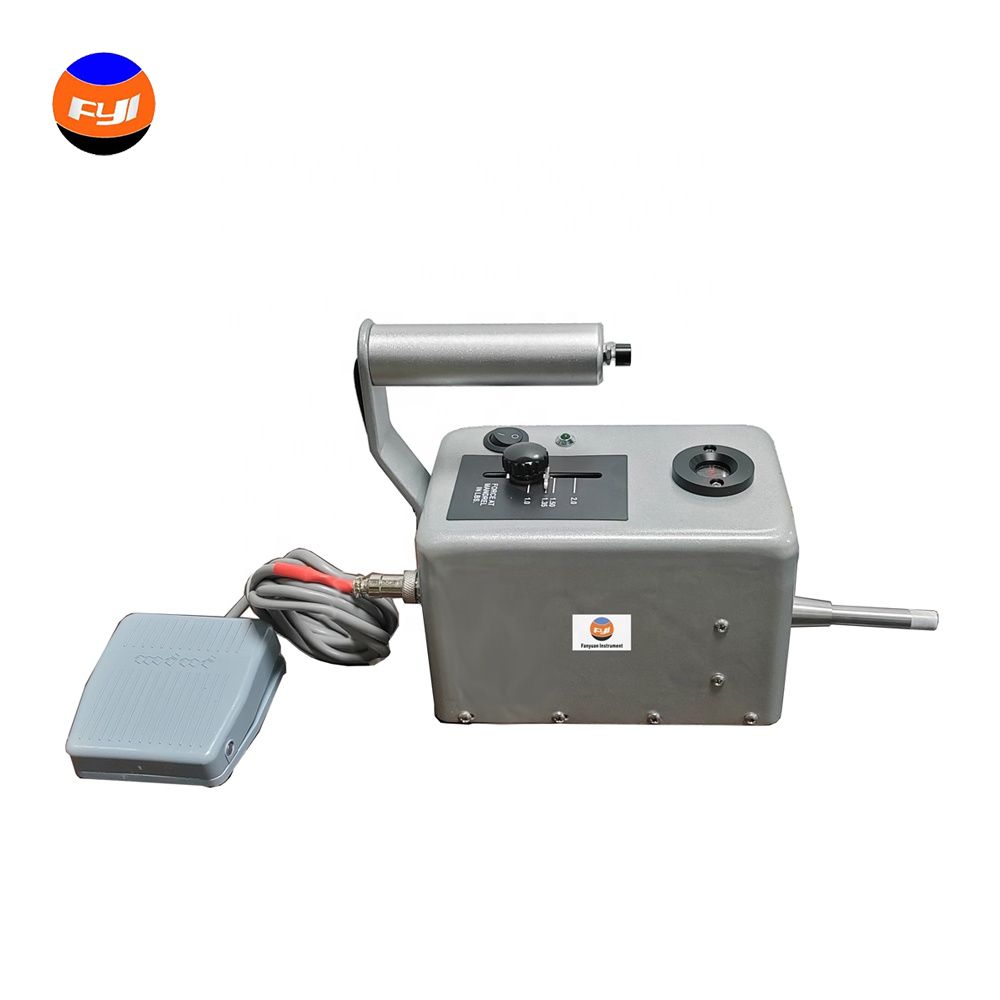

EN 71-1 Sharp Edge Tester FY401 is used to determine whether accessible edges on child-related products
are likely to cause injury before or after use or abuse. It is applicable to child-related products for children of no
more than ninety-six months. A self-adhesive PTFE tape is attached onto the mandrel which is then rotated
for a single 360° revolution along the accessible edge to test and applies 1.35lbs on the accessible edge.
If the tap is cut in half or longer in length (approx. 0.5inch), the edge is identified as a hazardous sharp edge..
RELATED STANDARDS:
STANDARDS | ASTM F963 4.8 | EN-71 8.2 | 16 CFR 1500.48 |
Note: this Sharp Edge Tester can conform to but not limit to the standards above, for more standards conformance,
please contact us.
FEATURES:
1. Metal shell, durable;
2. Foot switch, convenient to operate;
3. Photoelectric sensor to indicate the force fixed at 1.35 lbs during test;
4.Built-out function of adjusting the actual force to be consistent with the display value can ensure the accuracy of strength calibration;
5. Mandrel of hardened steel, glazed surface can vertically apply 1.35lbs force on the accessible edge;
6. Tangent speed of 1.00±0.08inch/s of the mandrel during its 75% resolution;
7. Portable, simple and easy to use;
KEY SPECIFICATION:
Force applied | 1.35 lbs |
Dimensions | 29*19*10mm (L*W*H) |
Net weight | 3.6kg |
