FY672
FYI
Silver+Grey
1pcs
China
APPLICATION:

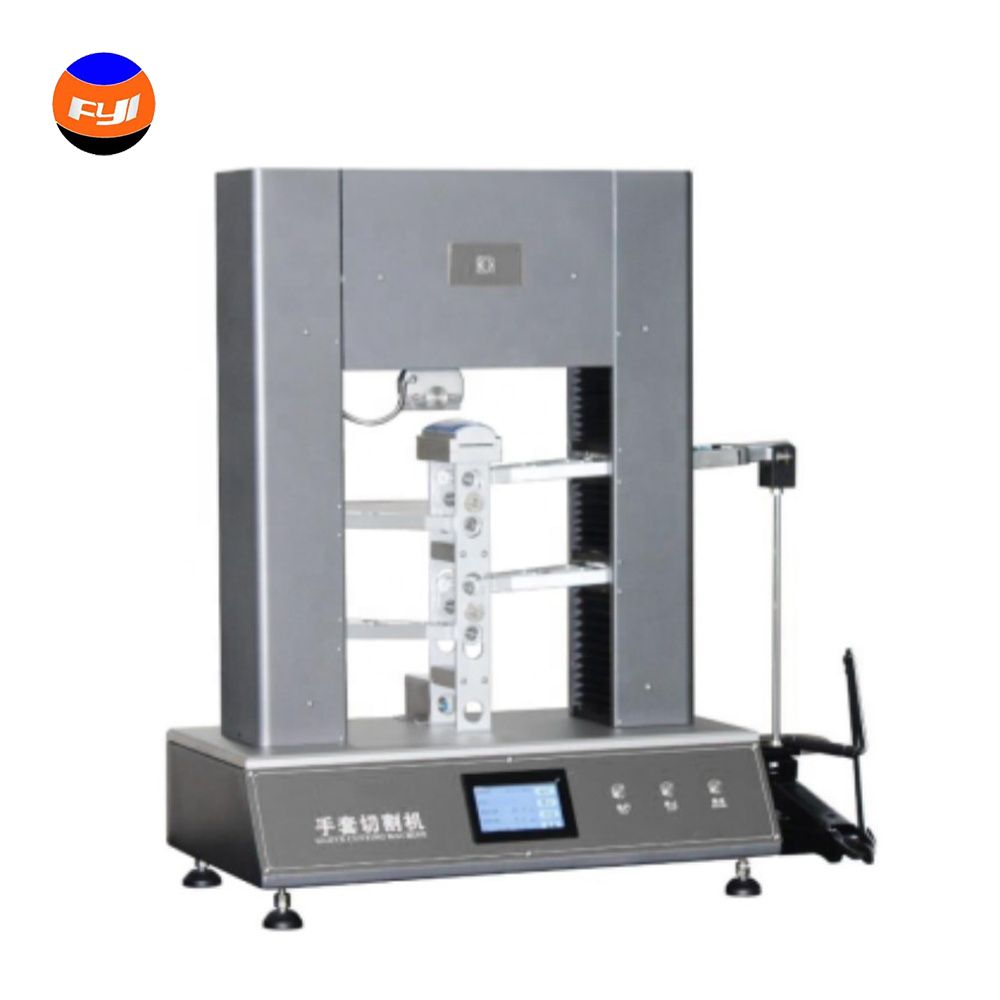

Cutting Resistance of Protective Clothing FY672 is used to evaluate the cutting resistance
of protective clothing materials by testing the vertical force required to cut through the sample
by cutting a fixed distance with the blade on the sample.
RELATED STANDARDS:
STANDARDS |
Note: this Cutting Resistance Testercan conform to but not limit to the standards above,
for more standards conformance,
please contact us.
FEATURES pf Cutting Resistance Tester
1.Equipped with ball screw and servomotor as drive assembly to control speed accurately;
2. Imported bearings with low friction and high precision;
3. No radial oscillation, no jumping or vibration during operation;
4. The core control component adopts STMicroelectronics 32-bit microcontroller;
5. Adopt color touch screen for display and control, easy to operate.
KEY SPECIFICATION of Resistance Tester :
Loading force | 1.0~200.0N, accuracy: 0.1N |
Blade movement | 0~50.0mm |
Cut speed | 2.5±0.5mm/s |
Blade hardness | >45HRC |
Blade thickness | 1.0±0.5mm |
Weights | 20N×8, 10N×3, 5N×1, 2N×2, 1N×1, 0.1N×1 |
Power supply | AC220V, 50Hz, 500W |
Dimensions | 560×400×700mm (L×W×H) |
Weight | 40kg |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
2. | Weights | 1 set |
3. | Blade | 1 set (10 pcs) |
APPLICATION:
Cutting Resistance of Protective Clothing FY672 is used to evaluate the cutting resistance
of protective clothing materials by testing the vertical force required to cut through the sample
by cutting a fixed distance with the blade on the sample.
RELATED STANDARDS:
STANDARDS |
Note: this Cutting Resistance Testercan conform to but not limit to the standards above,
for more standards conformance,
please contact us.
FEATURES pf Cutting Resistance Tester
1.Equipped with ball screw and servomotor as drive assembly to control speed accurately;
2. Imported bearings with low friction and high precision;
3. No radial oscillation, no jumping or vibration during operation;
4. The core control component adopts STMicroelectronics 32-bit microcontroller;
5. Adopt color touch screen for display and control, easy to operate.
KEY SPECIFICATION of Resistance Tester :
Loading force | 1.0~200.0N, accuracy: 0.1N |
Blade movement | 0~50.0mm |
Cut speed | 2.5±0.5mm/s |
Blade hardness | >45HRC |
Blade thickness | 1.0±0.5mm |
Weights | 20N×8, 10N×3, 5N×1, 2N×2, 1N×1, 0.1N×1 |
Power supply | AC220V, 50Hz, 500W |
Dimensions | 560×400×700mm (L×W×H) |
Weight | 40kg |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
2. | Weights | 1 set |
3. | Blade | 1 set (10 pcs) |
