DW1111
FYI
Silver+Black
1pcs
China
APPLICATION:

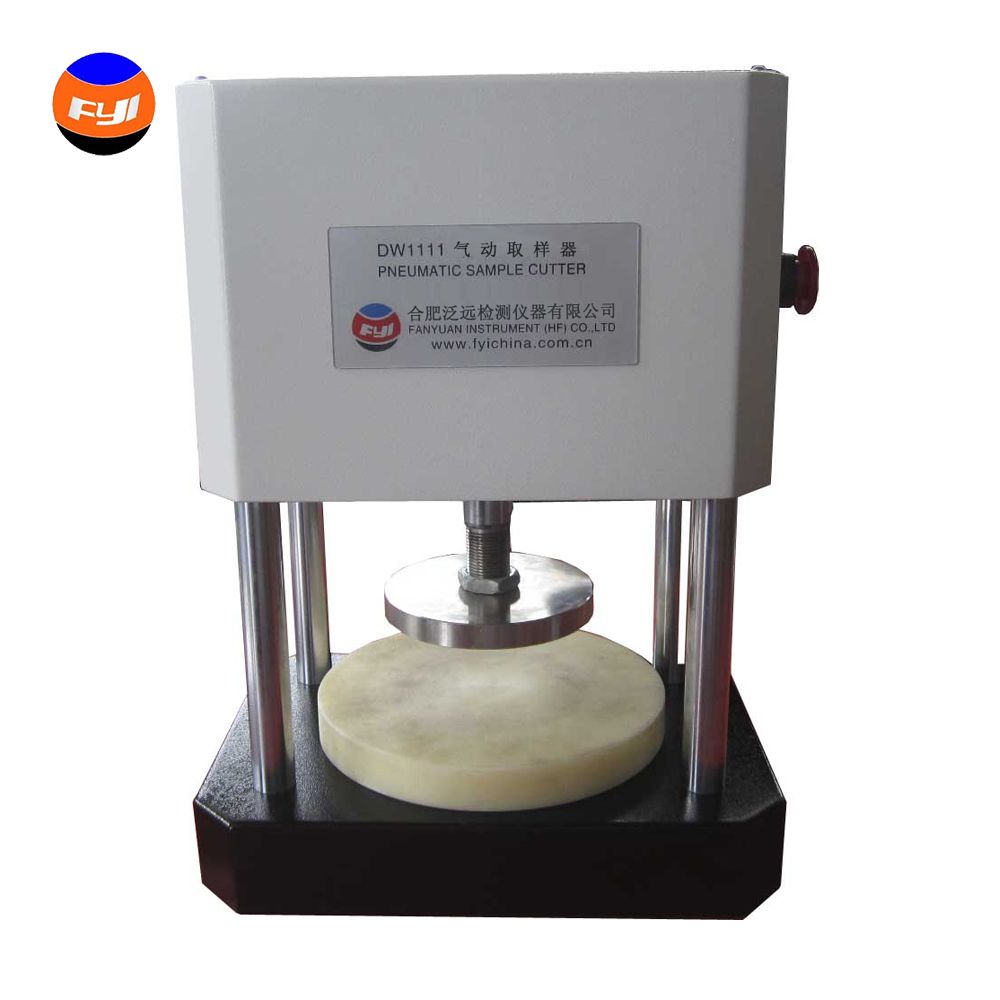

DW1111 Pneumatic Sample Cutter is used to cut out circular or dumb-bell shape specimens of fixed diameter
rapidly, accurately and safely. Virtually any type material can be accommodated, including woven, non-woven and knitted textiles, carpet, film, foam, plastics, paper and board, etc.
RELATED STANDARDS:
STANDARDS | ISO 3801 mass per unit area | EN 12127 |
Note: this Pneumatic Sample Cutter an conform to but not limit to all the standards above, for more standards conformance, please contact us.
FEATURES:
1. Steel body with pneumatic cylinder;
2. Pneumatic drive, sample can be cut out rapidly and safely;

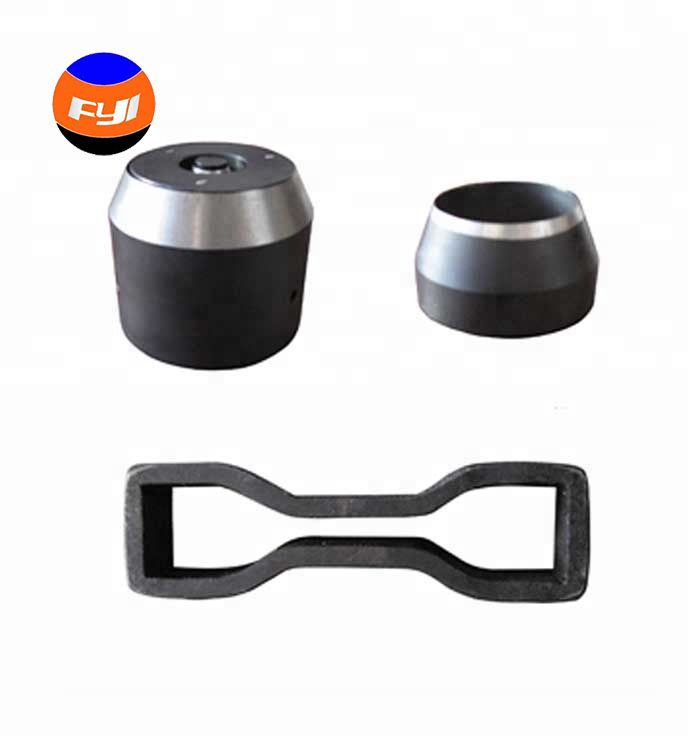

3. Various shapes die can be used to prepare sample, special shape die can be customized.
KEY SPECIFICATION:
Cutting method | Pneumatic |
Input pressure | ≥0.5Mpa |
Cutting pressure | 7KN when the input pressure is 0.6Mpa |
Dimensions | 340×240×460mm (L×W×H) |
Net weight | 25kg |
APPLICATION:
DW1111 Pneumatic Sample Cutter is used to cut out circular or dumb-bell shape specimens of fixed diameter
rapidly, accurately and safely. Virtually any type material can be accommodated, including woven, non-woven and knitted textiles, carpet, film, foam, plastics, paper and board, etc.
RELATED STANDARDS:
STANDARDS | ISO 3801 mass per unit area | EN 12127 |
Note: this Pneumatic Sample Cutter an conform to but not limit to all the standards above, for more standards conformance, please contact us.
FEATURES:
1. Steel body with pneumatic cylinder;
2. Pneumatic drive, sample can be cut out rapidly and safely;
3. Various shapes die can be used to prepare sample, special shape die can be customized.
KEY SPECIFICATION:
Cutting method | Pneumatic |
Input pressure | ≥0.5Mpa |
Cutting pressure | 7KN when the input pressure is 0.6Mpa |
Dimensions | 340×240×460mm (L×W×H) |
Net weight | 25kg |
