JN-B serials
FYI
Silver+Black
1pcs
China
APPLICATION:

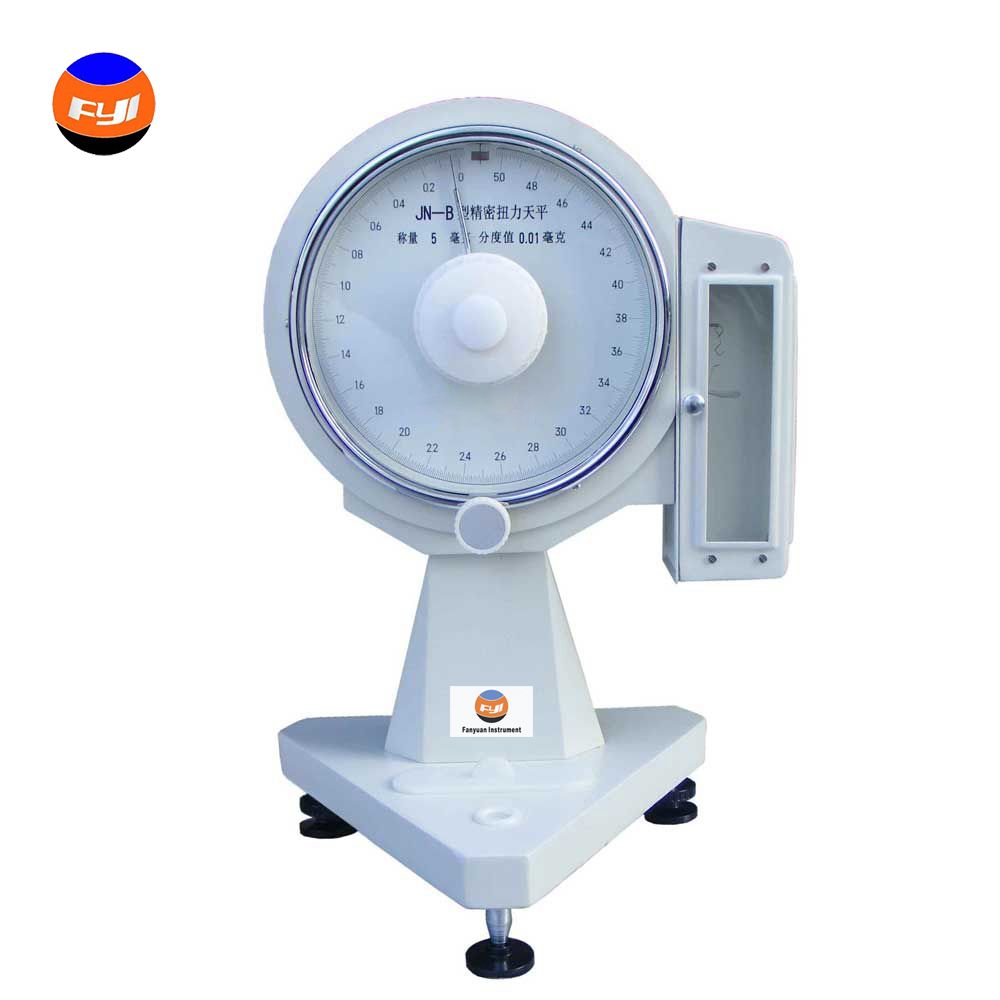

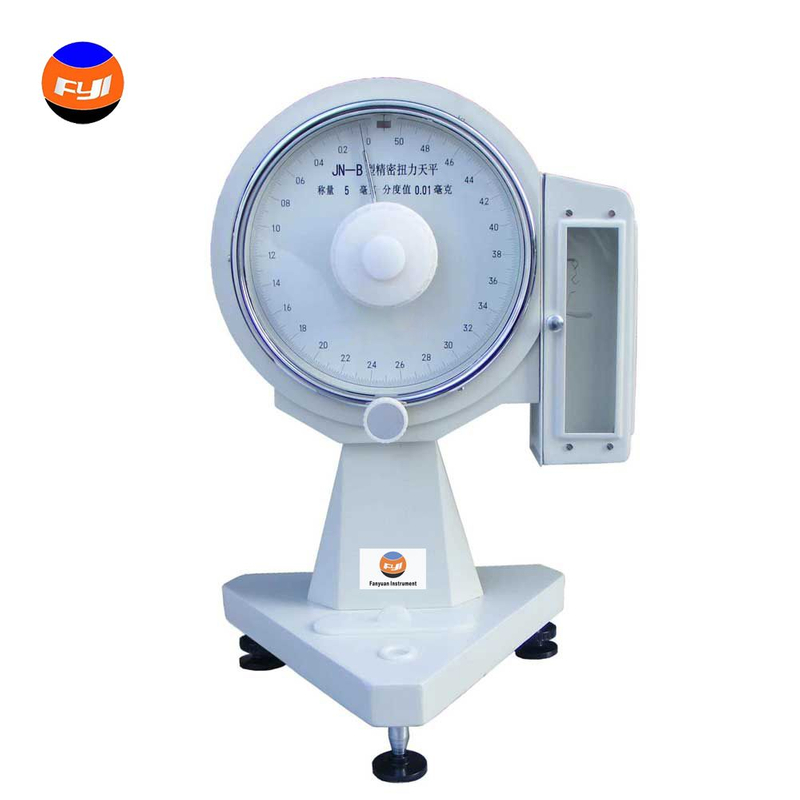

JN-B series Torsion Balance is a kind of sensitive precision measurement instrument can measure
weight of small objects. It is simple,there is no need weight and can read the measure value directly,
rapidly and correctly. The balance applied to electronics, textiles,
RELATED STANDARDS:
Note: this Torsion Balance an conform to but not limit to all the standards above, for more standards conformance, please contact us.
FEATURES:
1.To use steel and resilience as supporter, to avoid any damage of the edge of the knife to operators
2. Horizontal sight and visual glasses are provided operational sight for user.
3. Design with low center of the gravity, increasing Balance’s stability.
4.Special transportation locked installation, increasing Balance’s stability.
5. Special structure, small volume light weight, convenient to take.
6. Dimensions: 450×400×300mm
7. Weight: 8Kg
KEY SPECIFICATION:
Model | Measure range(mg) | Graduated value(mg) | Estimate value(mg) |
JN-B-5 | 0~5 | 0.01 | 0.005 |
JN-B-10 | 0~10 | 0.02 | 0.01 |
JN-B-25 | 0~25 | 0.05 | 0.025 |
JN-B-50 | 0~50 | 0.1 | 0.05 |
JN-B-100 | 0~100 | 0.2 | 0.1 |
JN-B-250 | 0~250 | 0.5 | 0.25 |
JN-B-500 | 0~500 | 1 | 0.5 |
JN-B-1000 | 0~1000 | 2 | 1 |
JN-B-2500 | 0~2500 | 5 | 2.5 |
APPLICATION:
JN-B series Torsion Balance is a kind of sensitive precision measurement instrument can measure
weight of small objects. It is simple,there is no need weight and can read the measure value directly,
rapidly and correctly. The balance applied to electronics, textiles,
RELATED STANDARDS:
Note: this Torsion Balance an conform to but not limit to all the standards above, for more standards conformance, please contact us.
FEATURES:
1.To use steel and resilience as supporter, to avoid any damage of the edge of the knife to operators
2. Horizontal sight and visual glasses are provided operational sight for user.
3. Design with low center of the gravity, increasing Balance’s stability.
4.Special transportation locked installation, increasing Balance’s stability.
5. Special structure, small volume light weight, convenient to take.
6. Dimensions: 450×400×300mm
7. Weight: 8Kg
KEY SPECIFICATION:
Model | Measure range(mg) | Graduated value(mg) | Estimate value(mg) |
JN-B-5 | 0~5 | 0.01 | 0.005 |
JN-B-10 | 0~10 | 0.02 | 0.01 |
JN-B-25 | 0~25 | 0.05 | 0.025 |
JN-B-50 | 0~50 | 0.1 | 0.05 |
JN-B-100 | 0~100 | 0.2 | 0.1 |
JN-B-250 | 0~250 | 0.5 | 0.25 |
JN-B-500 | 0~500 | 1 | 0.5 |
JN-B-1000 | 0~1000 | 2 | 1 |
JN-B-2500 | 0~2500 | 5 | 2.5 |
