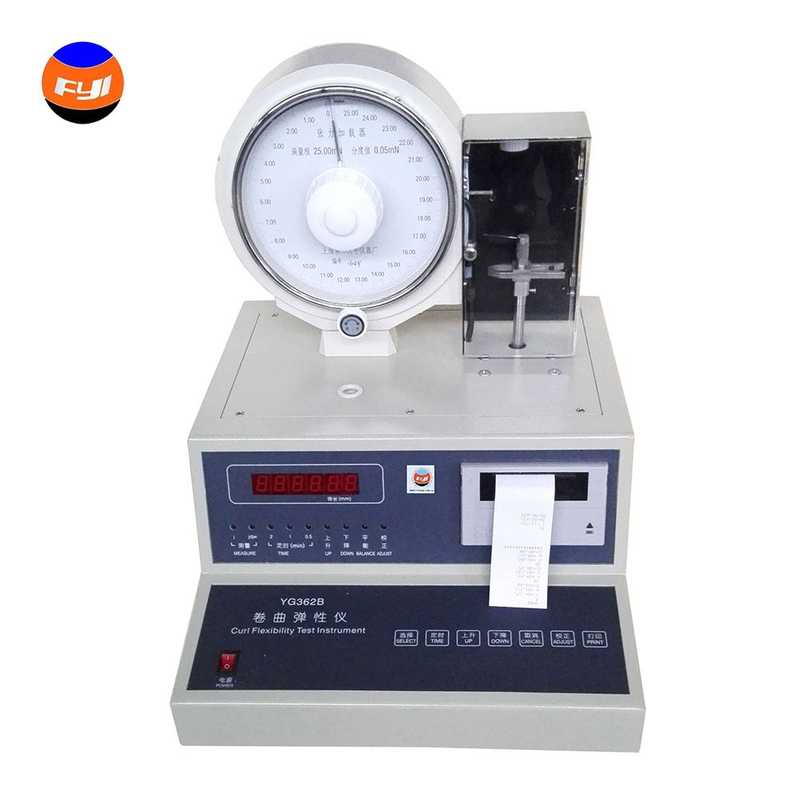

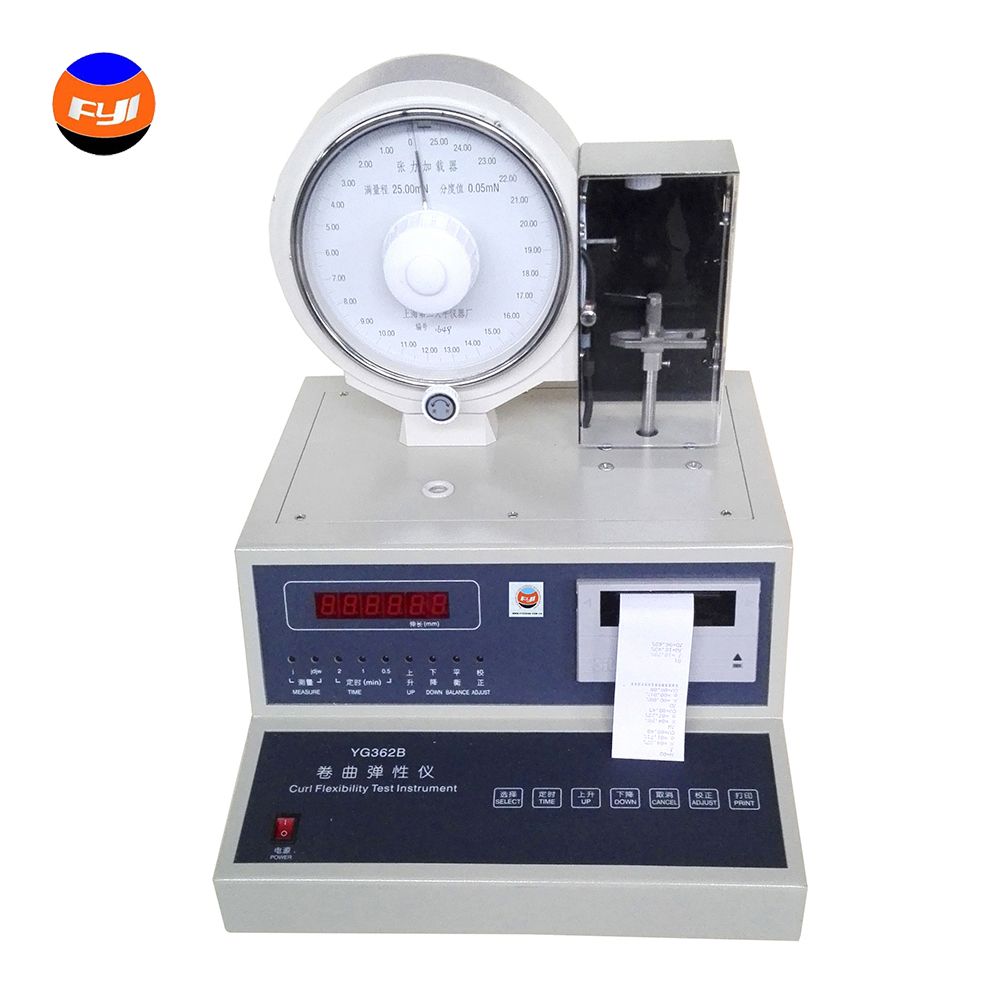

Fiber Crimp Elasticity Tester YG362B is specially used to determine crimping performance of single natural fibre and chemical fibre automatically when fineness ranges from 1 to 22dtex. It is widely used in production enterprises, testing organizations and scientific research units for chemical fibre, textile, etc.
The instrument adopts tension loader to apply different loads to fibre. After reaching specified load, displacement length value is recorded by monolithic microcomputer to automatically calculate crimp ratio “J(%)”, crimp recovery ratio “JW(%)” and crimp elasticity ratio “JD(%)”. Users can observe test values by LED digital displayer and print out their statistical values by built-in mini printer.
YG362B
FYI
Black+White
1PCS
China
APPLICATION:
Fiber Crimp Elasticity Tester YG362B is specially used to determine crimping performance of single natural fibre and chemical fibre automatically when fineness ranges from 1 to 22dtex. It is widely used in production enterprises, testing organizations and scientific research units for chemical fibre, textile, etc.
The instrument adopts tension loader to apply different loads to fibre. After reaching specified load, displacement length value is recorded by monolithic microcomputer to automatically calculate crimp ratio “J(%)”, crimp recovery ratio “JW(%)” and crimp elasticity ratio “JD(%)”. Users can observe test values by LED digital displayer and print out their statistical values by built-in mini printer.
RELATED STANDARDS:
STANDARDS | GB/T 14338 |
Note: this Fiber Crimp Elasticity Tester can conform to but not limit to the standards above, for more standards conformance, please contact us
KEY SPECIFICATION:
Loading device | Tension loader |
Load capacity | 0~5.00mN, resolution: 0.01mN; 0~10.00mN, resolution: 0.02mN; 0~25.00mN, resolution: 0.05mN (Please choose one of the three ranges.) |
Initial gauge length | 20mm |
Stroke of lower clamp | ≥30mm |
Displacement resolution | 0.01mm |
Displacement reading error | ≤0.05mm (within 10mm) |
Timing | 0.5min, 1min, 2min (three options) |
Power supply | AC220V 50Hz |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine |
