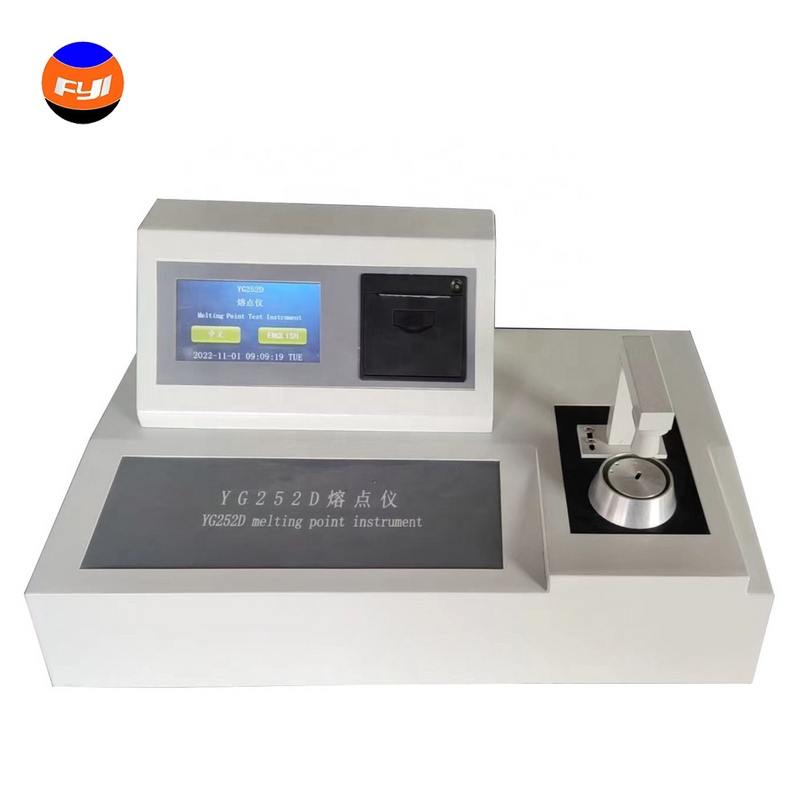

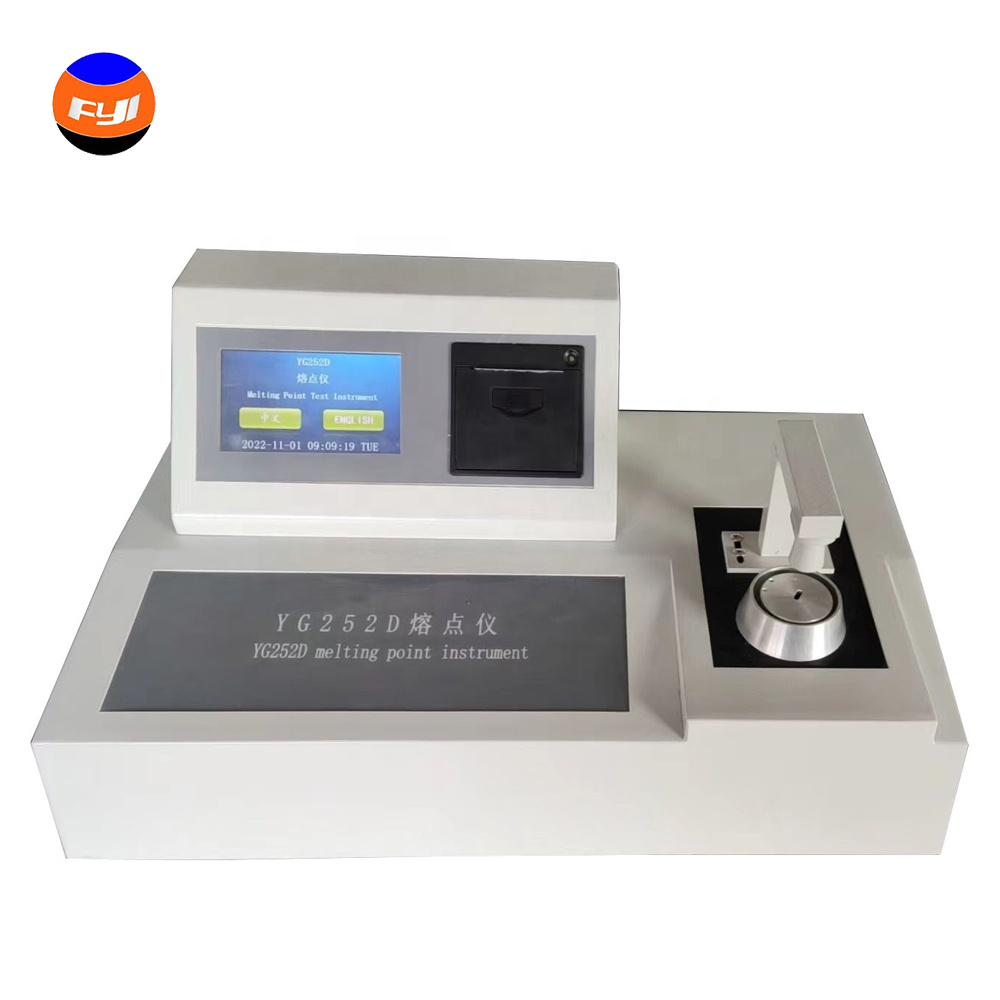

Melting Point Tester of Powder, PET Chip, Chemical Fiber melting point measuring instrument YG252D is used for testing the melting point of powder, PET chip, chemical fiber and etc. (except light-proof and deep color object) by the change of light transmission amount with micro-computer
YG252D
FYI
White+Blue
1PCS
China
APPLICATION:
Melting Point Tester of Powder,
PET Chip, Chemical Fiber melting point measuring instrument YG252D
is used for testing the melting point of powder, PET chip, chemical fiber and etc.
(except light-proof and deep color object) by the change of light transmission amount with micro-computer
RELATED STANDARDS:
STANDARDS |
Note: this Melting Point Tester can conform to but not limit to the standards above, for more standards conformance,
please contact us
FEATURES OF Melting Point Tester
1.Determine melting point through the change of light transmission amount;
2. Display data, with TOUCH Screen
3. User chooses melting report method of manual or automatic;
4. Each test curve, data and arithmetic mean value can be printed when the printer is connected;
5. Precisely heat by heating system.
KEY SPECIFICATION:
Environmental conditions | |
Temperature range | 15~30℃ |
RH range | ≤80% |
Melting point range | 50~320℃ |
Temperature error | ±0.5℃ |
Heating speed | 2, 3, 4, 5℃/min(adjustable) |
Power supply | AC220V, 50Hz, 120W |
Dimensions | 300×300×200mm (L×W×H) |
Weight | 15kg |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
Installation in customer's lab Training in FYI showroom
APPLICATION:
Melting Point Tester of Powder,
PET Chip, Chemical Fiber melting point measuring instrument YG252D
is used for testing the melting point of powder, PET chip, chemical fiber and etc.
(except light-proof and deep color object) by the change of light transmission amount with micro-computer
RELATED STANDARDS:
STANDARDS |
Note: this Melting Point Tester can conform to but not limit to the standards above, for more standards conformance,
please contact us
FEATURES OF Melting Point Tester
1.Determine melting point through the change of light transmission amount;
2. Display data, with TOUCH Screen
3. User chooses melting report method of manual or automatic;
4. Each test curve, data and arithmetic mean value can be printed when the printer is connected;
5. Precisely heat by heating system.
KEY SPECIFICATION:
Environmental conditions | |
Temperature range | 15~30℃ |
RH range | ≤80% |
Melting point range | 50~320℃ |
Temperature error | ±0.5℃ |
Heating speed | 2, 3, 4, 5℃/min(adjustable) |
Power supply | AC220V, 50Hz, 120W |
Dimensions | 300×300×200mm (L×W×H) |
Weight | 15kg |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
Installation in customer's lab Training in FYI showroom
