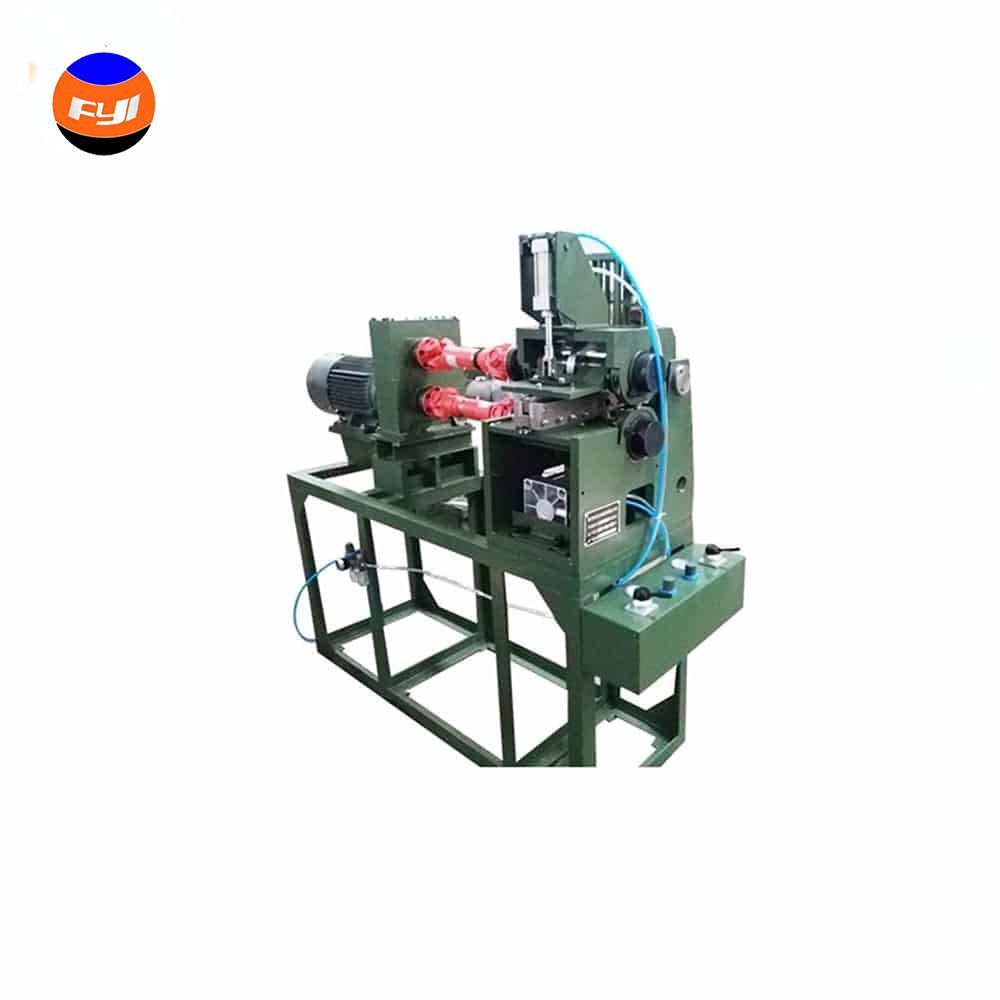

PLA ES fiber Bio-fiber Stuffing Box Type Fiber Crimping Machine FCM142 uses one pair of upper and lower crimping roller to feed the continuously supplied straight tow into the crimping box, and adjust the main pressure of the crimping roller and the back pressure of the crimping box,
so that the tow can be evenly crimped to meet the quality requirements of the tow.
FCM142
FYI
Sliver and blue
1PCS
China
APPLICATION:

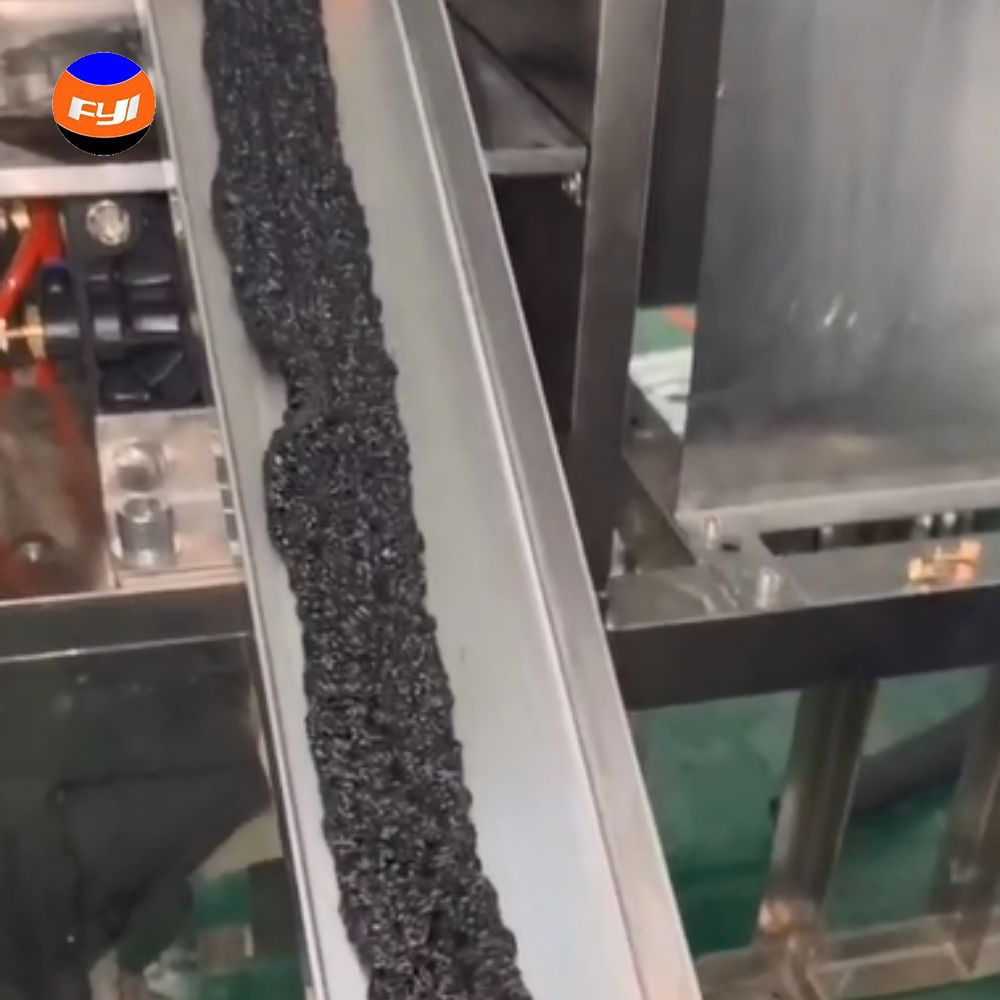

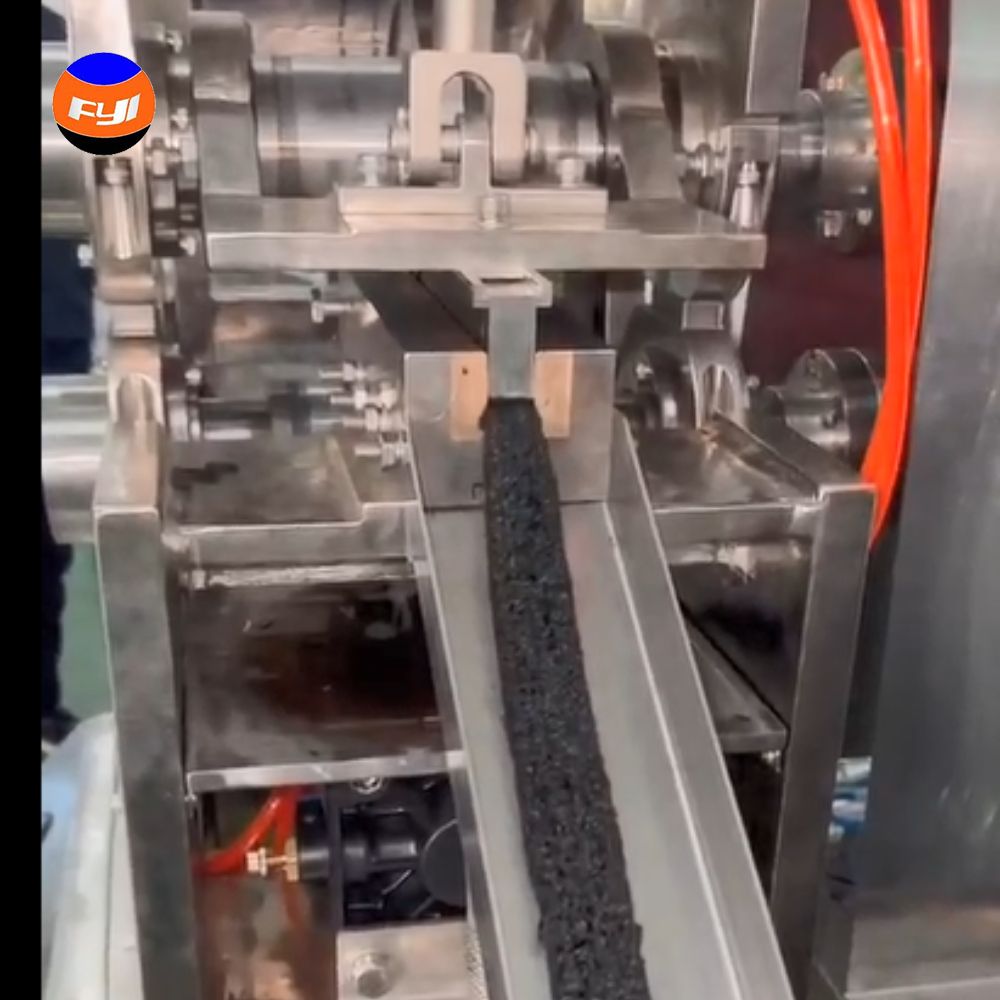

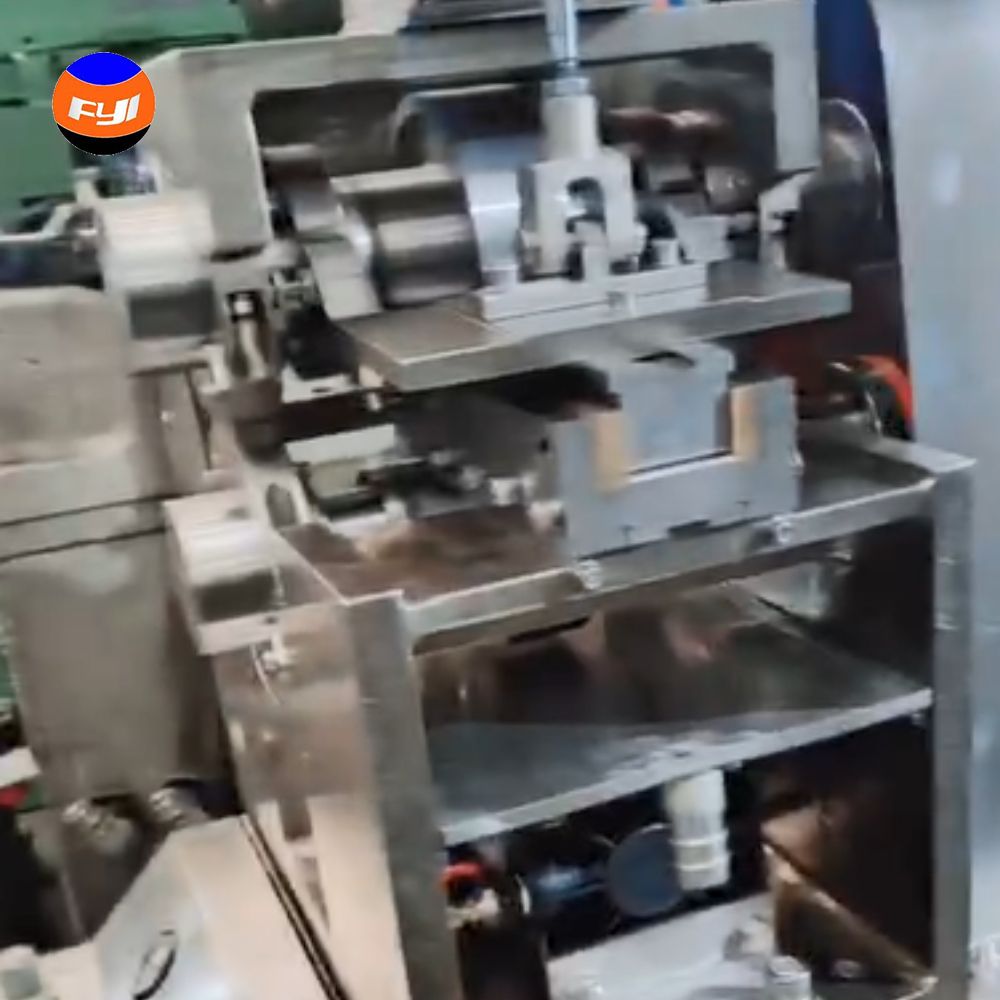

PLA ES fiber Bio-fiber Stuffing Box Type Fiber Crimping Machine FCM142 uses one pair of upper and
lower crimping roller to feed the continuously supplied straight tow into the crimping box, and adjust the main pressure of the crimping roller and the back pressure of the crimping box,
so that the tow can be evenly crimped to meet the quality requirements of the tow.
RELATED STANDARDS:
STANDARDS |
Note: this Fiber Crimping Machine can conform to but not limit to the standards above, for more standards conformance, please contact us.
KEY SPECIFICATION:
Type | Stuffing box type |
Suitable fiber tow | Bio-fiber, PLA fiber, ES fiber |
Denier of fiber tow | Regular 30,000~50,000 Denier Special specification:: 15,000~90,000Denier (ES fiber: 120,000~350,000 Denier) |
Number of crimp | 15±2/inch |
Crimping roller diameter | Φ150mm |
Crimping roller width | 18mm |
Material of crimping roller | 420J2 stainless steel |
Tow speed | Max. 210m/min |
Stuffing box dimensions | 228*18*12mm |
Material of crimping blade and lateral plate | 420J2 stainless steel |
Height of tow from ground | 1200mm |
Motor power | 5.5kw |
Dimensions | 1,560*500*1,480mm |
Net weight | Approx. 500kg |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
