Cotton Fiber Fibrograph KX730 is used to accurately and rapidly determine the mean length, upper half mean length and uniformity index of cotton fiber sample by photo-electric method.
This instrument is designed based on the random distribution theory of cotton fiber length, and also based on the theory that light intensity passing through fiber bundle has negative correlation with the number of fibers in the fiber bundle cross section.
KX730
FYI
Black
1PCS
China
APPLICATION:
Cotton Fiber Fibrograph KX730 is used to accurately and rapidly determine the mean length,
upper half mean length and uniformity index of cotton fiber sample by photo-electric method.
This instrument is designed based on the random distribution theory of cotton fiber length,
and also based on the theory that light intensity passing through fiber bundle has negative
correlation with the number of fibers in the fiber bundle cross section.
RELATED STANDARDS:
STANDARDS | ISO 4913 | ASTM D1447 | GB/T 13781, 20392, GB 1103 |
Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.
FEATURES:
1. Standard length ruler and optical calibration card are convenient for operators to conduct hardware calibration and self-check on this instrument.

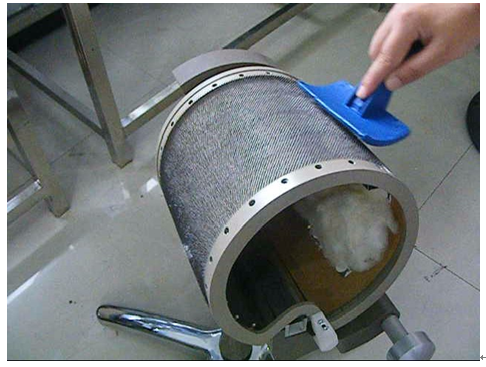

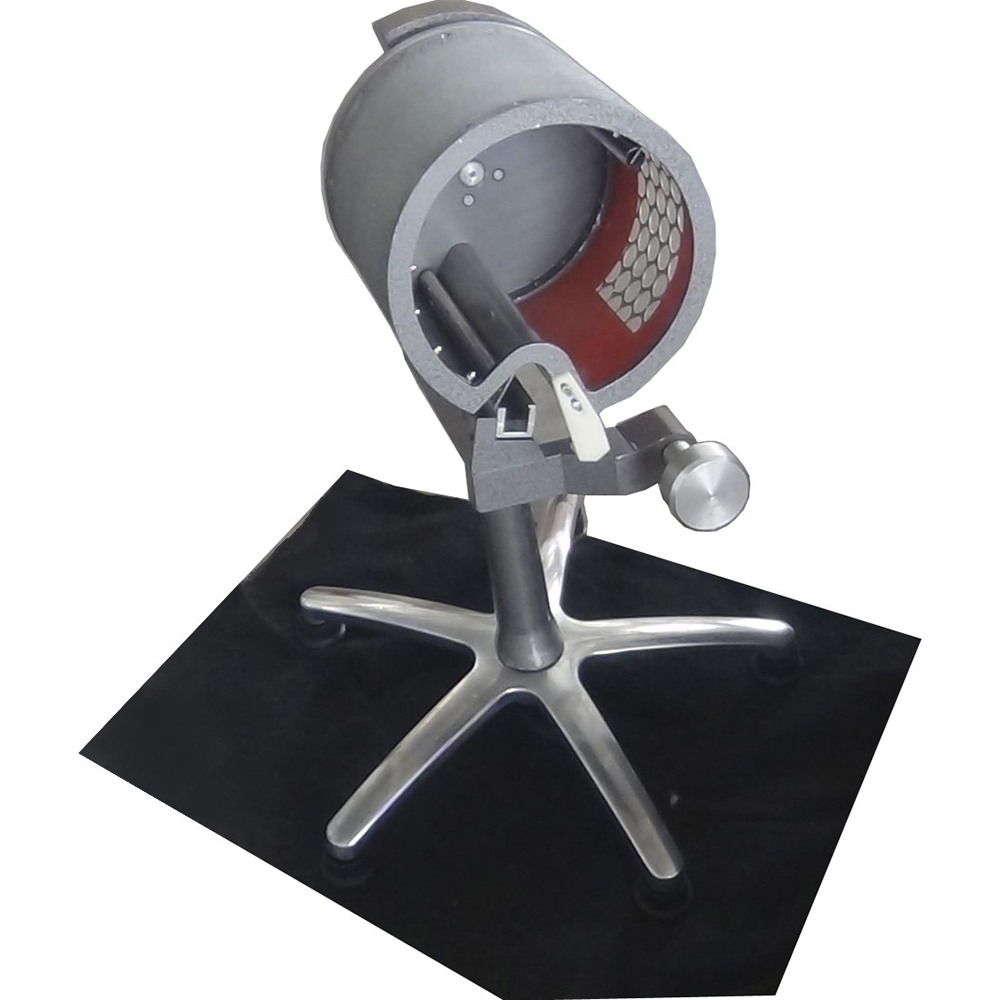

2. Specially designed sampling device with complete accessories are supplied for sample preparation, easy to prepare the test beard.

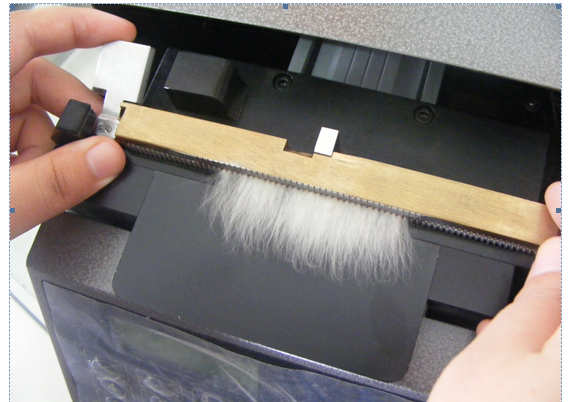

3. CPU generates trigger pulse to control the step motor, drive the sampling comb to move at regulated step, making photoelectric scan of the test beard from the root.
4. Fast test speed, test one result only need 20~30s.

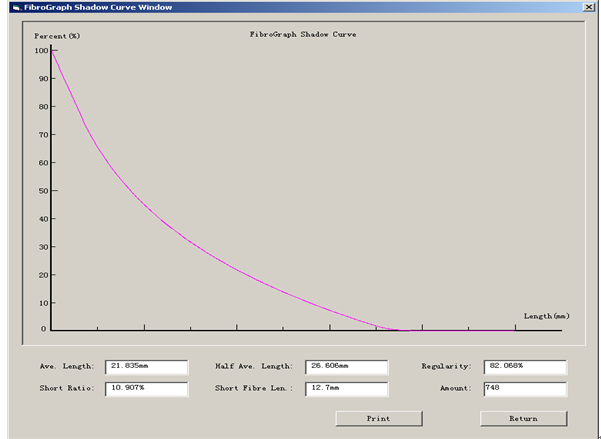

5. The software provides a friendly operation interface supported by a reliable database. It can process data automatically to generate fibrograph curve and calculate mean length, upper half mean length, uniformity index and short fiber ratio of the sample.
6. Calibration with standard cotton fiber and database creation (including storage, retrieval, print, etc.
function) can be conducted in the computer.
KEY SPECIFICATION:
Length range of cotton fiber | 18~50mm |
Tolerance of upper half mean length | ±0.5mm |
Tolerance of uniformity index | ±1.5% |
Fiber amount | 550~900 |
Power supply | AC 220V, 50Hz |
Dimension | 450*200*195mm (L*W*H) |

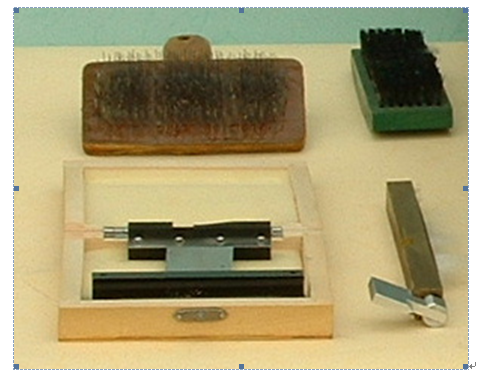

STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
2. | Software | 1 pc |
3. | Sampling combs | 2 pcs |
4. | Sampling catcher | 1 pc |
5. | Standard optical calibration card | 1 pc |
6. | Standard length ruler | 1 pc |
7. | Cleaning brush | 1 pc |
8. | Nylon brush | 1 pc |
