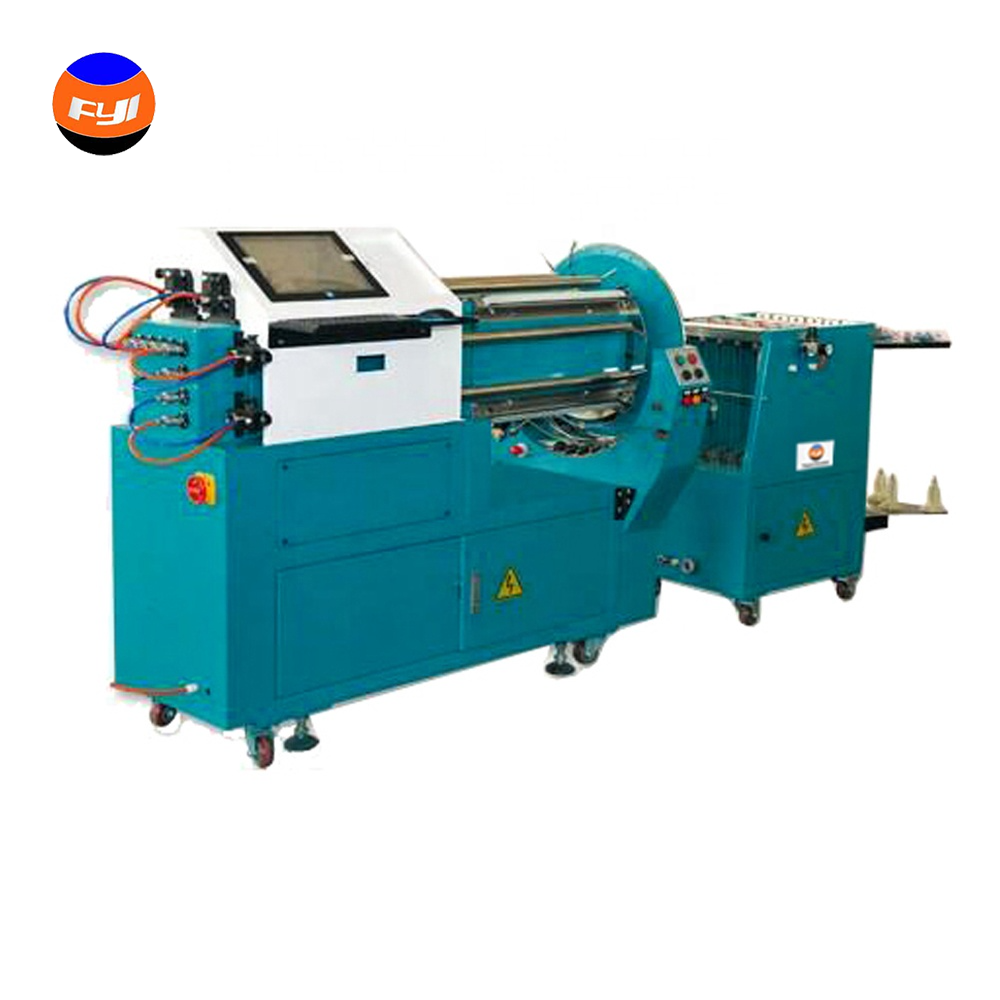

DW598T+ GA193-600
FYI
White and
1PCS
China
By TT or LC
APPLICATION:

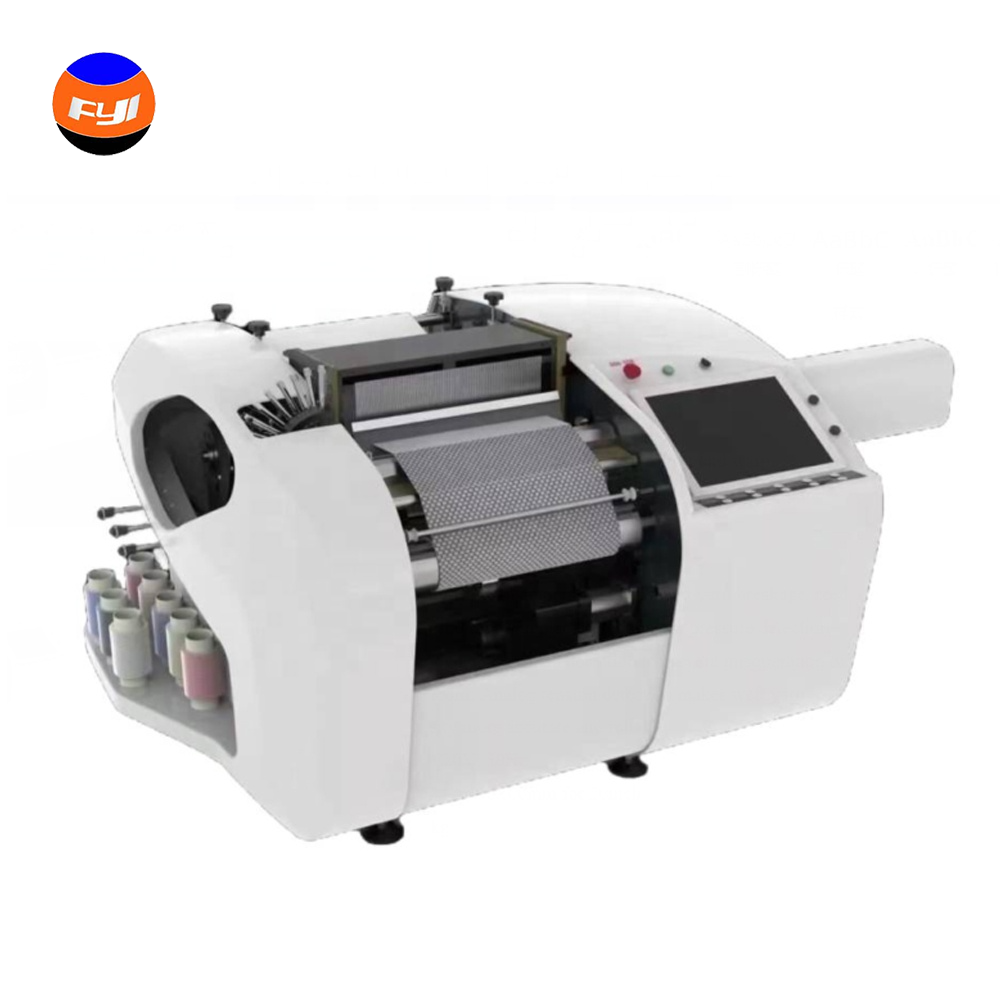

DW598T Series Towel Rapier Sample Loom is used for sample weaving of various towels.
It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.

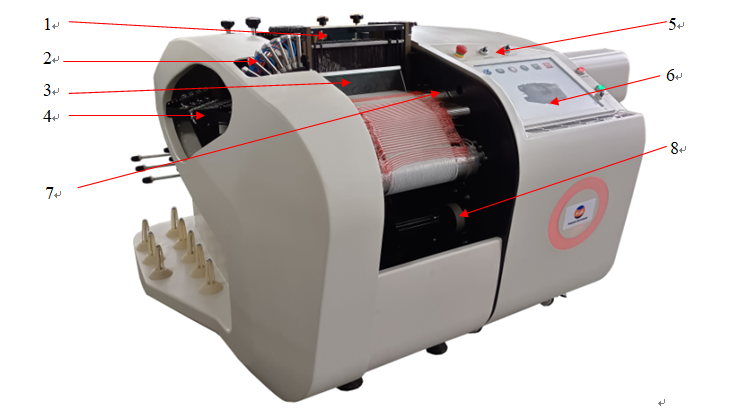

FEATURES of Towel Rapier Sample Loom DW598:
1. Machine consists of control part (computerized control platform) and mechanical part (loom);
2. Weft inserting with rigid rapier, It is suitable for cotton, terylene/cotton, chemical fiber and other fabrics;
3. Machine with imported pneumatic control element.
It can control 20pcs heald frame at most and easy to mount and dismount heald frame
4. Heald frame adopts die drawing aluminum alloy profile, Machine with hard oxidation wear-resisting treatment;
5. Machine with Electronic control take-up mechanism driving by imported stepper motor and reducer,
6. Stepper motor driving let-off device, automatically adjust warp tension.
KEY SPECIFICATION of Towel Rapier Sample Loom DW598:
Applicable material | Cotton, wool, flax, silk, chemical fiber, blending, etc |
Yarn range | 10-2000Tex |
Reed width | 50cm (20in.) |
Speed | Max. 30weft/min |
Weft selection | 8 colors, fully automatic, pneumatic control |
Heald frame position | 20(Including selvedge heald frames) |
Shedding | Computer control, pneumatic |
Weft insertion | Servo system control, rigid rapier |
Weft cutting | Pneumatic control |
Beating -up | Cam beating-up |
Take-up | Independent stepping motor for take-up, weft density range can be adjusted |
Let-off | Two beams, independent stepping motor actively let-off, can proceed variable let-off |
Warp tension control | Analog warp tension detecting |
Loop length | 0.5~1.5mm, loop length can be adjusted, program control |
Raising method | Three or four wefts, program control |
Protection | Equipped with automatic stop for weft yarn breakage, reed seat and rapier in position detection, air pressure detection and dynamic tension detection to prevent mis-operation; Analog tension detection makes weft yarn density more accurate and reliable |
Power supply | AC 220V, 50Hz |
Air consumption | 240L/min |
Air pressure | 0.4-0.75MPa |
Overall dimensions | 880*1250*1100mm for 20inch |
Weight | 500kg |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
