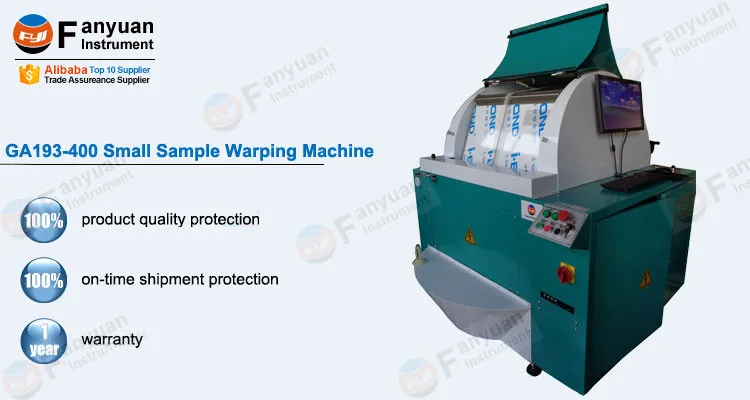

Yarn Sectional Mini Sample Warping Machine GA193-400 is used for automatic warping of production sample, weaving sample and small batch fabrics for lab.
GA193-400
FYI
Blue
1PCS
China
By TT or LC
APPLICATION:
Yarn Sectional Mini Sample Warping Machine GA193-400 is used for automatic warping of production
sample, weaving sample and small batch fabrics for lab.
It is widely used in the sampling in the industries including wool spinning, cotton spinning,
colored woven and natural silk, etc.
FEATURES:
1.PC control and software for arranging the laying of yarn;
2. Special design for sample weaving in lab or R&D institute;
3. Adjustable working space of unwinding device, suitable for various warping beams whose length is within 300~500mm;
4. Yarn breakage detector;
5. Foot pedal for unwinding;
6. With inching button and emergency stop for the safety of operator;
KEY SPECIFICATION:
| Key Specifications | |
| Working width | 200-700mm |
| Warping speed | 0-600m/min |
| Applicable yarn density | 5-500tex |
| Warping length | 3m |
| Bobbin number | 1pcs ( manually changeable) |
| Warp yarn arrangement | servo motor control, accuracy of 0.01mm reachable |
| Beam diameter | 60mm |
| Dimensions | 1700×1600×1900mm (L×W×H) |
| Model No. | GA193-400 Lab Small Sample Warping Machine |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1. | Main machine | 1 set |
2. | Yarn press plate | 1 pc |
3. | Air pipe (Φ8mm) | 3 meter |
4. | Guide hook | 2 pcs |
5. | Tensioner | 1 pc |
6. | Yarn breakage detector | 1 pc |
7. | Beam | 2 pcs |
