PT-J300
FYI
Silver
1PCS
China
APPLICATION:

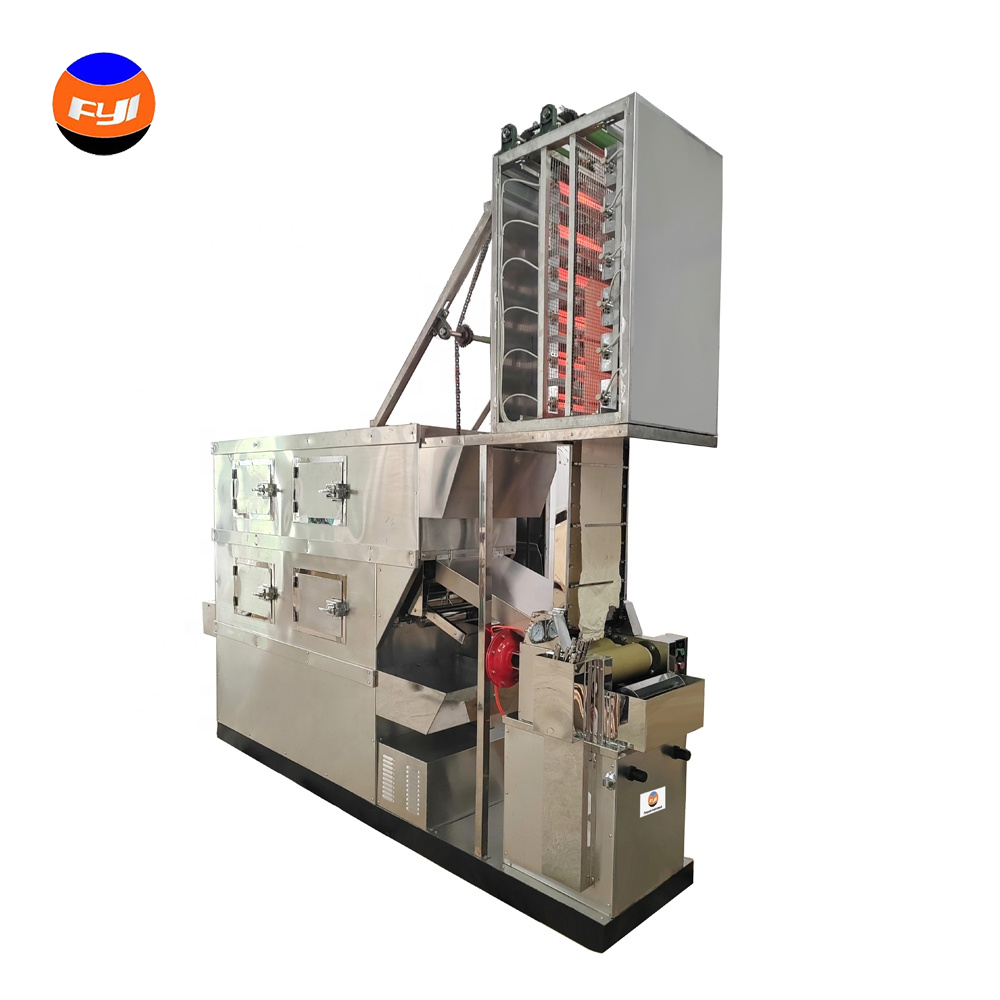

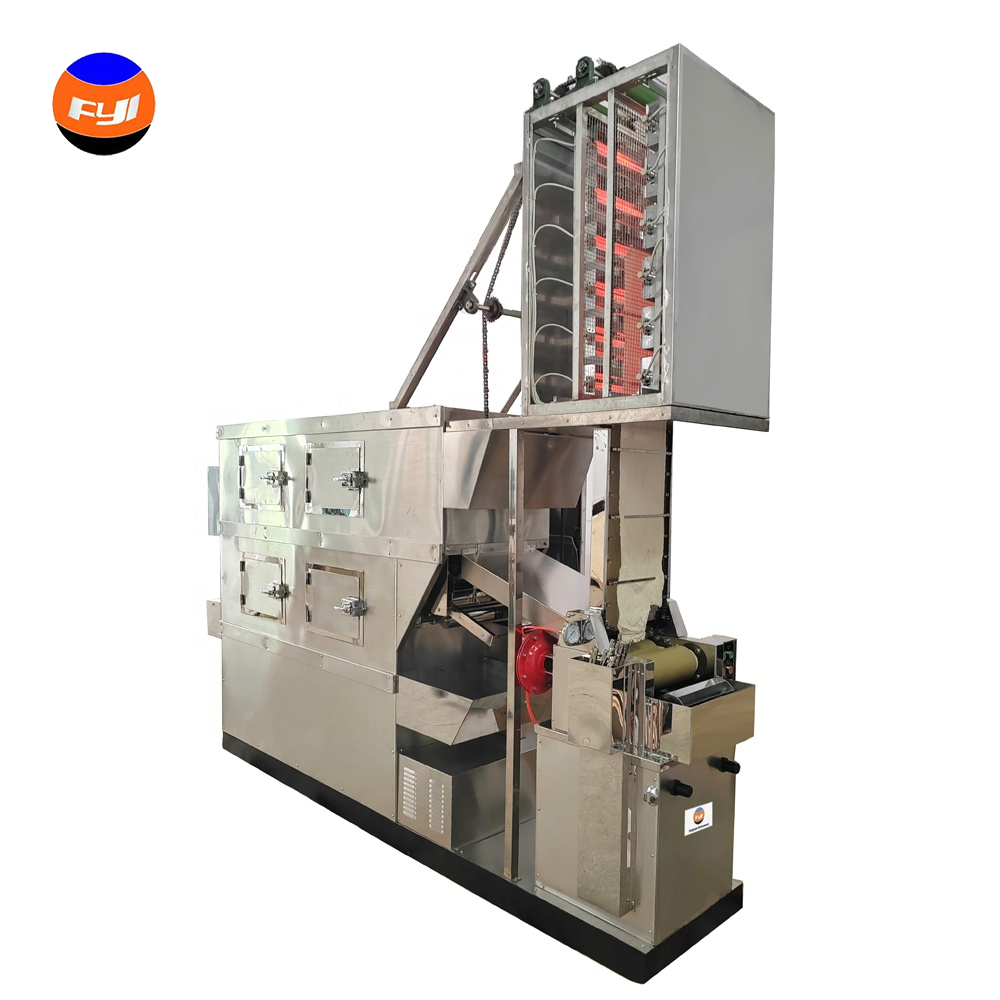

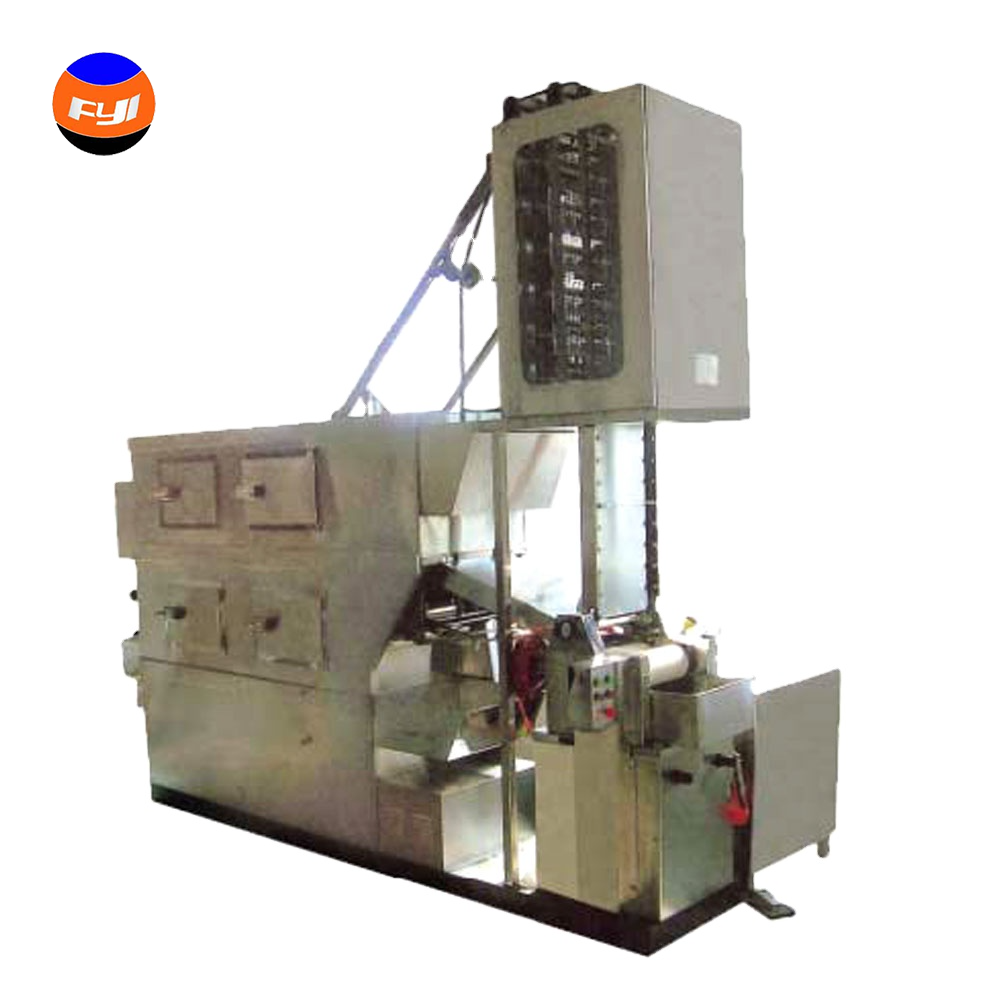

Continuous Pad Dyeing Machine Laboratory Pad Thermosol Range PT-J300
s suitable for working out dye formulas and research work in laboratory.
It mainly consists of control box, padder, infrared zone, pre oven and oven.
The cloth sample to be tested is fixed with special clip rods, more samples can be tested simultaneously
PT-J300 Pad-Thermosol out put is Piece by piece .
SR-300 Pad-Steam which you found video simliar like roller .
In fact there have gude cloat at the beginning and at the end .
When you got fabric from PT-J300 .It can be sewn together with needle and thread,
and the two ends require fabric guidance, which also needs to be reserved for more fabric in the next process.
FEATURES OF Dyeing Machine Laboratory Pad Thermosol Range
1.Whole body made of high quality SUS304 stainless steel sheet;
2.Main drive part consists of stainless steel chains and clip;
3.Frequency conversion motors, randomly adjustable;
4.Diaphragm cylinders, auto-restoration when interruption of power supply, no deviation on the left and right side, good performance on repeatability;
5.Infrared heating tubes, uniform heat output and high heating efficiency;
6.9KW heating power separately for pre oven and oven, reach set temperature quickly;
7. Hot air circulation controlled by digital-display temperature controller
to maintain temperature within ±1~2℃;
KEY SPECIFICATION OF Dyeing Machine Laboratory Pad Thermosol Range
Roller material | NBR(nitrile butadiene rubber) |
Roller width | 300mm |
Roller diameter | Φ126mm |
Roller hardness | Shore 70 degrees |
Roller pressure | 0.03~0.6Mpa, pneumatic and adjustable |
Dyestuff trough capacity | 4-position dyestuff trough, 150cc |
Infrared heater | 12pcs*400W infrared heating tubes |
Temperature of pre oven | 20~150℃, heating power 9KW |
Temperature of oven | 20~240℃, heating power 9KW |
Fan power | 1.5KW |
Power supply | AC380V, 50Hz, three-phase, 25KW |
Dimensions | 3,320×1,300×2,950mm(L×W×H) |
Net weight | Approx.1,200kg |
STANDARD CONFIGURATION:
No. | Item | Quantity |
1 | Main machine | 1set |
