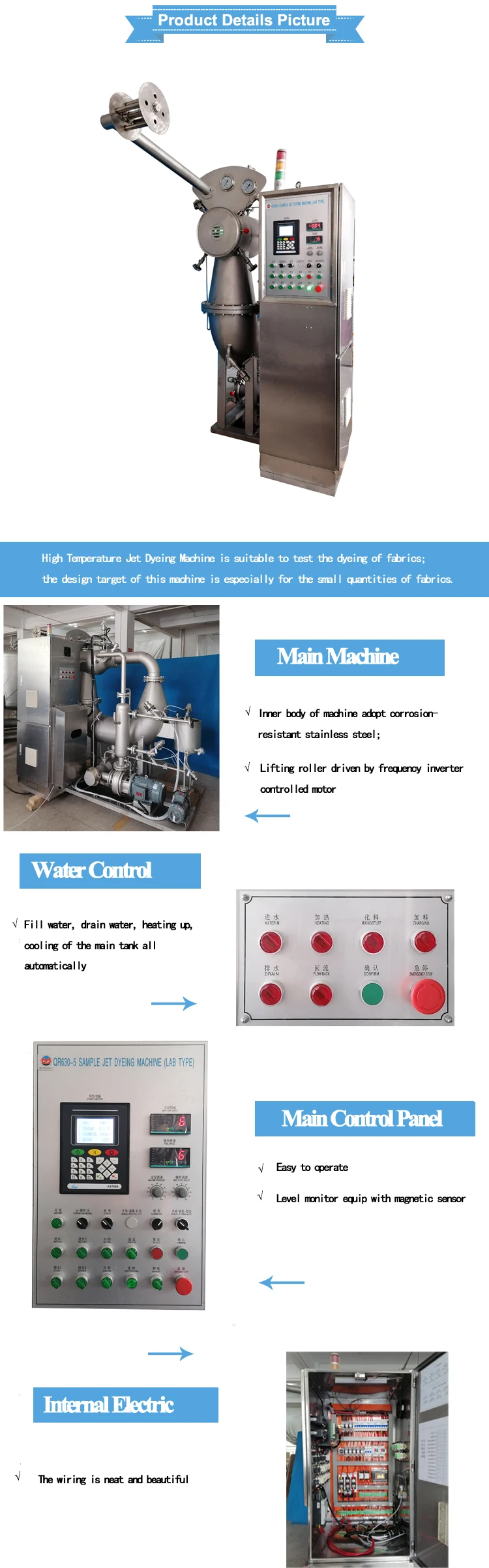

Jet Dyeing Machine QR630 serials is suitable to test the dyeing of fabrics; the design target of this machine is especially for the small quantities of fabrics.
QR630
FYI
Sliver
1PCS
China
APPLICATION:
High Temperature Jet Dyeing Machine QR630(A) is suitable to test the dyeing of fabrics; the design target of this machine is especially for the small quantities of fabrics.
FEATURES:
1.Inner body of machine adopt corrosion-resistant stainless steel;
2.High-efficiency stainless steel centrifugal pump to provide optimal dye cycle;
3. Lifting roller driven by frequency inverter controlled motor;
4. Service tank equip with the feeding pump, valve, dye cycle system;
5.Level monitor equip with magnetic sensor;
6.High efficiency heat exchanger;
7.Fill water, drain water, heating up, cooling of the main tank all automatically;
8. Pneumatic valve for fill and drain function;
9.PLC control (QR630A);
10. Fill dyestuff, stirring, heating, fill water, drain all can be carried out automatically (QR630A);
KEY SPECIFICATION OF HT JET DYEING MACHINE
Model | Capacity | Power | Dimensions |
QR630(A)-1 | 1~2kg | 4.0kw | 1200×1000×1600 |
QR630(A)-5 | 4~6kg | 5.9kw | 1400×1170×1800 |
QR630(A)-15 | 8~15kg | 7.7kw | 2450×1050×2060 |
QR630(A)-30 | 20~30kg | 9.3kw | 3750×1200×2200 |
QR630(A)-60 | 40~60kg | 11.2kw | 4600×1400×2650 |
QR630(A)-120 | 80~120kg | 11.2kw | 6200×1700×2650 |
