FY111F
FYI
Silver
1pcs
China

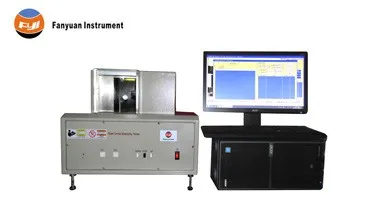

FY111F Fiber Crimp Tester is used to determine crimping performance of single chemical fiber and natural fiber. It is widely used in production enterprises, testing organizations and scientific research units for chemical fiber, textile, etc.
GB/T 14338.
Note: FY111F Fiber Crimp Testing Machine can conform to but not limit to the standards above, for more standards conformance, please contact us
It adopts the image processing technology to automatically count the number of crimps of the fiber under light load and in length of 25mm.
Quick test, high accuracy, easy to operate;
Determine fiber length after relaxation due to the effect of heavy load to calculate crimp elastic recovery rate.
Automatically determine crimp ratio, crimp elastic recovery rate and number of crimps;
| Load measurement range | 0~2,000 (10-3cN) | ||
| Load resolution | 0.1 (10-3cN) | ||
| Load measurement error | ≤±1% | ||
| Clamping length | 20mm | ||
| Stroke of lower clamp | 40mm | ||
| Length resolution | 0.01mm | ||
| Timing of fiber crimp tester | Auto | ||
| Measurement of crimp No. | Auto | ||
| Crimp counting length | 25mm | ||
| Power Supply | AC220V, 50Hz | ||
| Dimensions | 510×340×420mm (L×W×H) | ||
| Net weight of fibre crimp tester | 20kg |
FY111F Fiber Crimp Tester is used to determine crimping performance of single chemical fiber and natural fiber. It is widely used in production enterprises, testing organizations and scientific research units for chemical fiber, textile, etc.
GB/T 14338.
Note: FY111F Fiber Crimp Testing Machine can conform to but not limit to the standards above, for more standards conformance, please contact us
It adopts the image processing technology to automatically count the number of crimps of the fiber under light load and in length of 25mm.
Quick test, high accuracy, easy to operate;
Determine fiber length after relaxation due to the effect of heavy load to calculate crimp elastic recovery rate.
Automatically determine crimp ratio, crimp elastic recovery rate and number of crimps;
| Load measurement range | 0~2,000 (10-3cN) | ||
| Load resolution | 0.1 (10-3cN) | ||
| Load measurement error | ≤±1% | ||
| Clamping length | 20mm | ||
| Stroke of lower clamp | 40mm | ||
| Length resolution | 0.01mm | ||
| Timing of fiber crimp tester | Auto | ||
| Measurement of crimp No. | Auto | ||
| Crimp counting length | 25mm | ||
| Power Supply | AC220V, 50Hz | ||
| Dimensions | 510×340×420mm (L×W×H) | ||
| Net weight of fibre crimp tester | 20kg |
