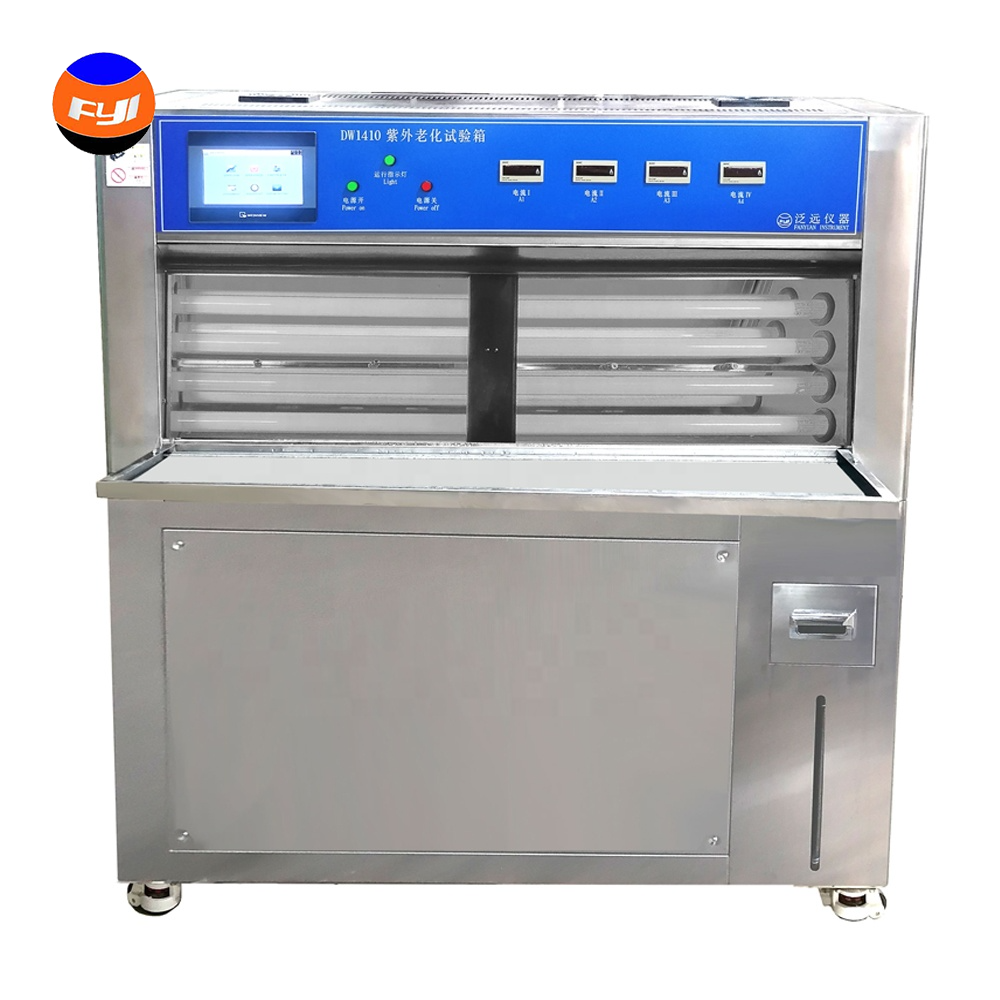

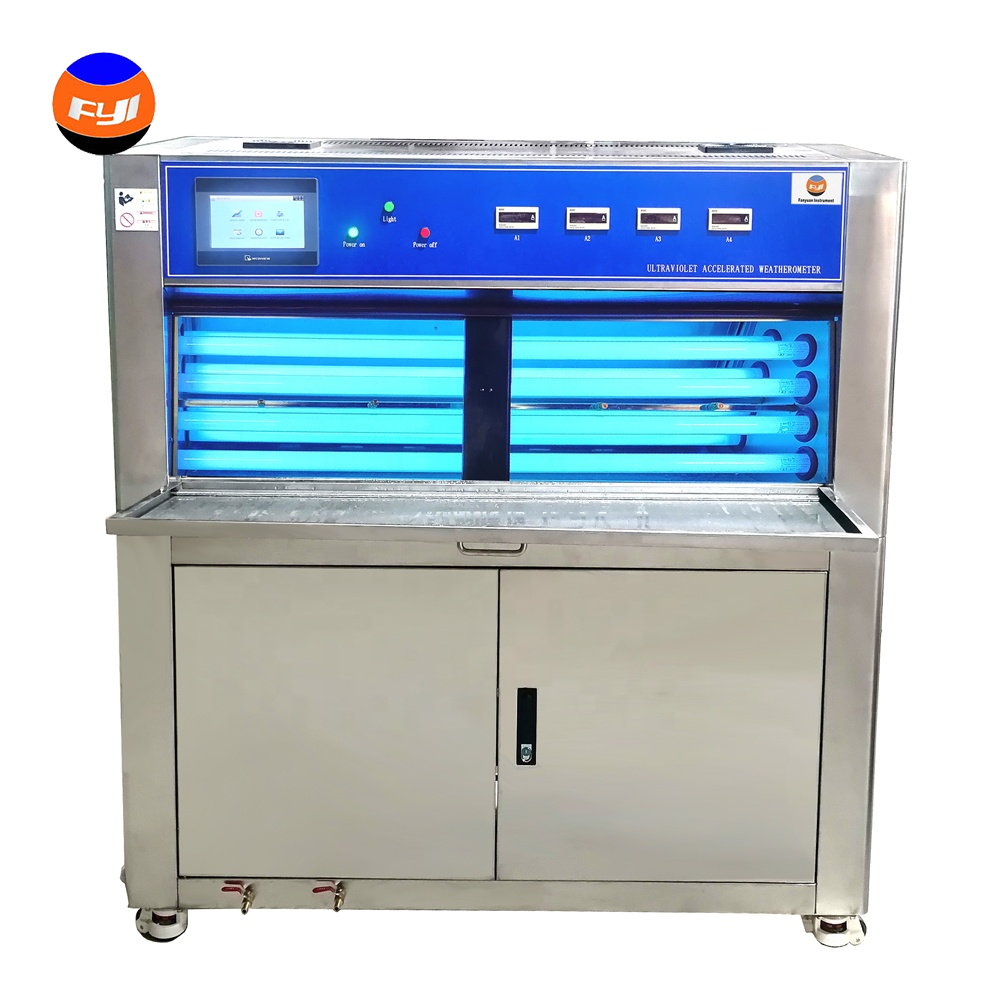

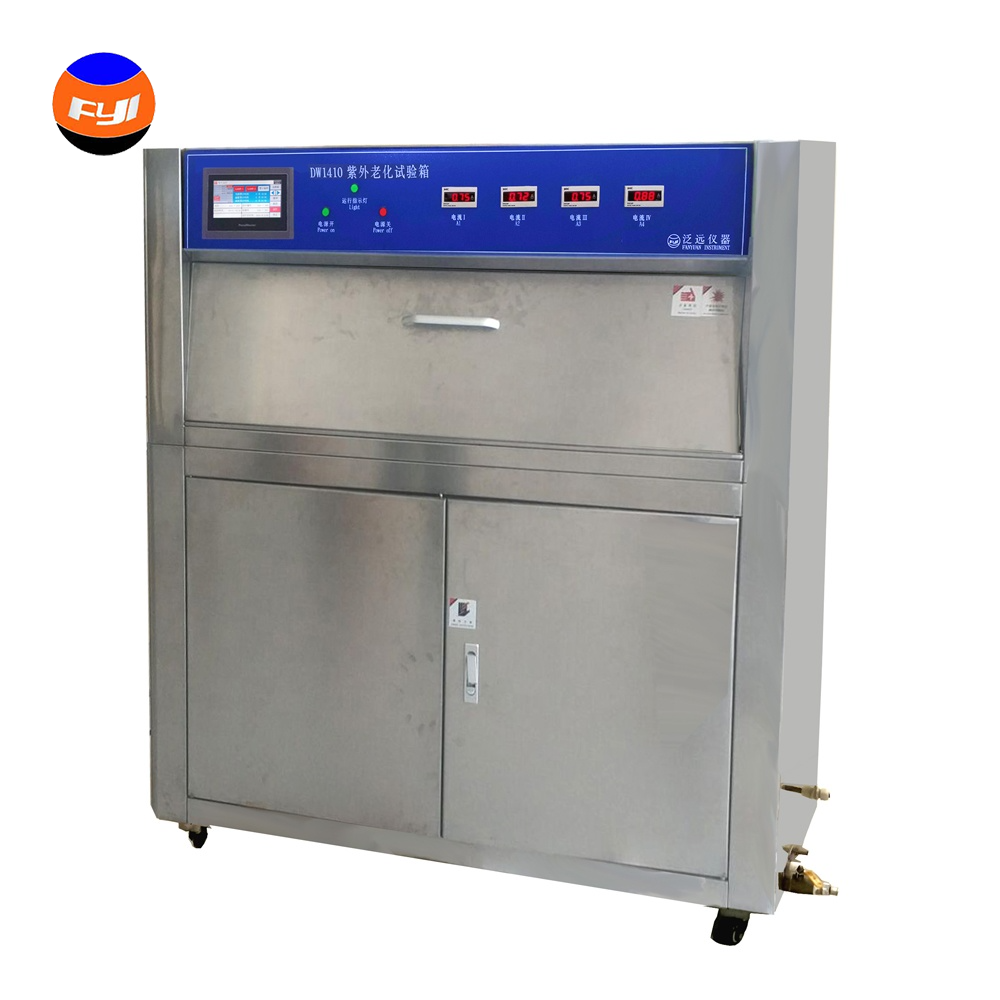

ASTM D 4329,ISO 4892 UV Accelerated Weathering Tester UV Aging Test Chamber DW1410 is designed for a wide range of applications, such as the ageing testing of non-metallic materials, organic materials (plastics, paints, coatings, rubbers, etc.) and related products under the specified conditions of sunlight, temperature and climatic conditions and assessing the degree of color change and fade in accelerated man-made testing environments.
DW1410
FYI
White and blue
1PCS
China
By TT or LC
15-20 days
Application
ASTM D 4329,ISO 4892 UV Accelerated Weathering Tester UV Aging Test Chamber DW1410
is designed for a wide range of applications, such as the ageing testing of non-metallic materials, organic materials
(plastics, paints, coatings, rubbers, etc.) and related products under the specified conditions of sunlight, temperature and climatic conditions and assessing the degree of color change and fade in accelerated
man-made testing environments.
It adopts ultraviolet lamp as the light source that can simulate the UV band spectrum in sunlight,
and combines temperature and humidity controlling systems, provides an excellent testing environment
for ageing testing.
Related Standards:
STANDARDS | ISO 4892-3-2006 | EN 12224-2000 | EN 13252-2016 Annex B |
ASTM D4329-2005 | ASTM D5208-2009 | ASTM D7238-2006 | |
GB/T 14522-2008 | GB/T 16422.3-2014 |
Note: this tester can conform to but not limit to all the standards above,
for more standards conformance, please contact us.
Features OF UV Accelerated Weathering Tester
DW1410 uses a special condensation device to simulate rain and condensation effects on testing piece surface
2. Accelerated weathering tester: material of the cabinet is SUS304# advanced stainless steel.
3.The test sample surface is in parallel with UV light plane.
4. Since exposing in the open and that yields to moisture shall last as long as 12 hours a day
5. Accelerated weathering chamber: lamp lifetime: above1600h.
Key specifications:
Components surface temperature | RT+10℃~70℃ |
Temperature accuracy | ±3℃ |
Temperature resolution | 0.1℃ |
Temperature fluctuation | ±1℃ |
Wetting mode | Condensation cycle (Optional: spray) |
Total exposure area | 1100mm×280mm |
Racks size | 300×80mm or customized |
Number of racks | 25pcs |
Effective exposure area | 50mm×250mm×25 |
Center distance of lamp | 70mm |
Distance between specimen and lamp | 50±2mm |
Humidity | ≥95% RH |
Temperature control | PID self-control mode |
Wind speed | 0.5~1. 0m/M |
Light source | UV-A or UV-B |
Wave length | 313nmwith half band or 340nm with half band |
Temperature sensor | PT100 |
Power supply | AC220V, 50Hz |
Dimensions | 155×70×180cm (L×W×H) |
Net weight | 170kg |
Application
ASTM D 4329,ISO 4892 UV Accelerated Weathering Tester UV Aging Test Chamber DW1410
is designed for a wide range of applications, such as the ageing testing of non-metallic materials, organic materials
(plastics, paints, coatings, rubbers, etc.) and related products under the specified conditions of sunlight, temperature and climatic conditions and assessing the degree of color change and fade in accelerated
man-made testing environments.
It adopts ultraviolet lamp as the light source that can simulate the UV band spectrum in sunlight,
and combines temperature and humidity controlling systems, provides an excellent testing environment
for ageing testing.
Related Standards:
STANDARDS | ISO 4892-3-2006 | EN 12224-2000 | EN 13252-2016 Annex B |
ASTM D4329-2005 | ASTM D5208-2009 | ASTM D7238-2006 | |
GB/T 14522-2008 | GB/T 16422.3-2014 |
Note: this tester can conform to but not limit to all the standards above,
for more standards conformance, please contact us.
Features OF UV Accelerated Weathering Tester
DW1410 uses a special condensation device to simulate rain and condensation effects on testing piece surface
2. Accelerated weathering tester: material of the cabinet is SUS304# advanced stainless steel.
3.The test sample surface is in parallel with UV light plane.
4. Since exposing in the open and that yields to moisture shall last as long as 12 hours a day
5. Accelerated weathering chamber: lamp lifetime: above1600h.
Key specifications:
Components surface temperature | RT+10℃~70℃ |
Temperature accuracy | ±3℃ |
Temperature resolution | 0.1℃ |
Temperature fluctuation | ±1℃ |
Wetting mode | Condensation cycle (Optional: spray) |
Total exposure area | 1100mm×280mm |
Racks size | 300×80mm or customized |
Number of racks | 25pcs |
Effective exposure area | 50mm×250mm×25 |
Center distance of lamp | 70mm |
Distance between specimen and lamp | 50±2mm |
Humidity | ≥95% RH |
Temperature control | PID self-control mode |
Wind speed | 0.5~1. 0m/M |
Light source | UV-A or UV-B |
Wave length | 313nmwith half band or 340nm with half band |
Temperature sensor | PT100 |
Power supply | AC220V, 50Hz |
Dimensions | 155×70×180cm (L×W×H) |
Net weight | 170kg |
