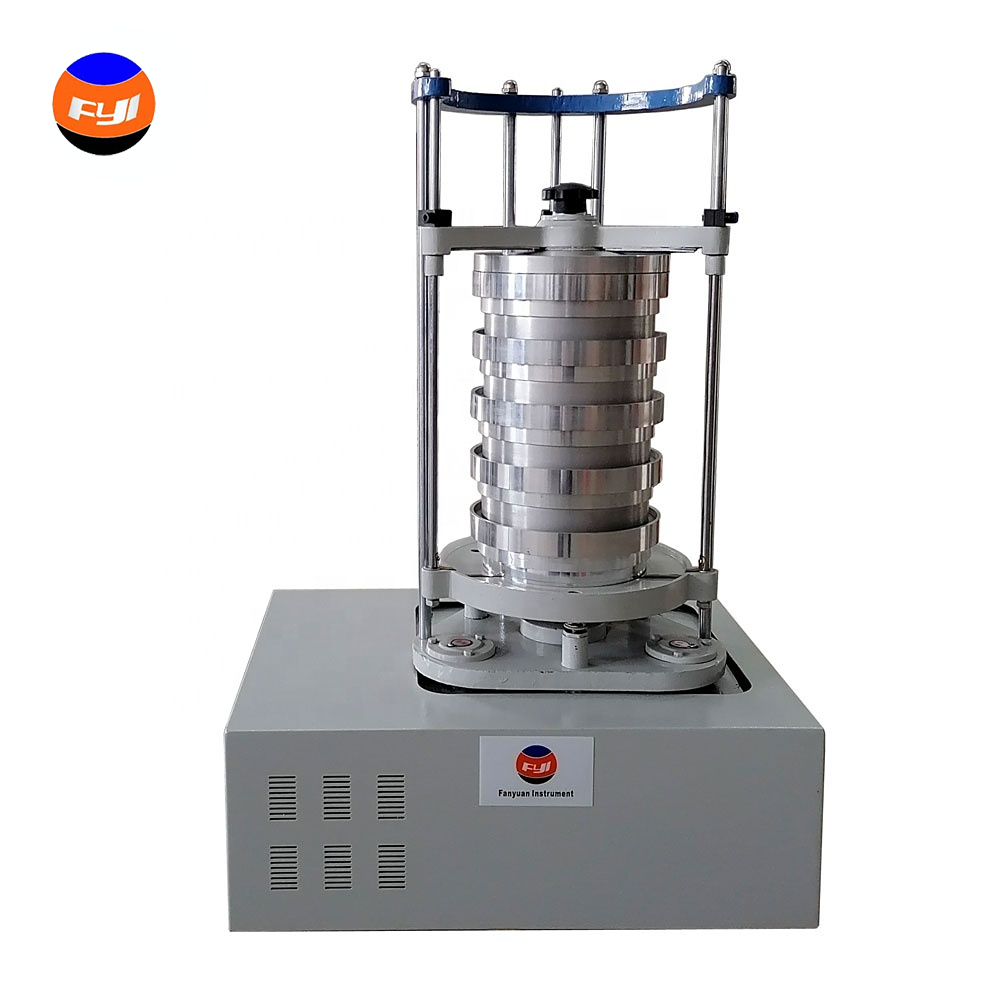

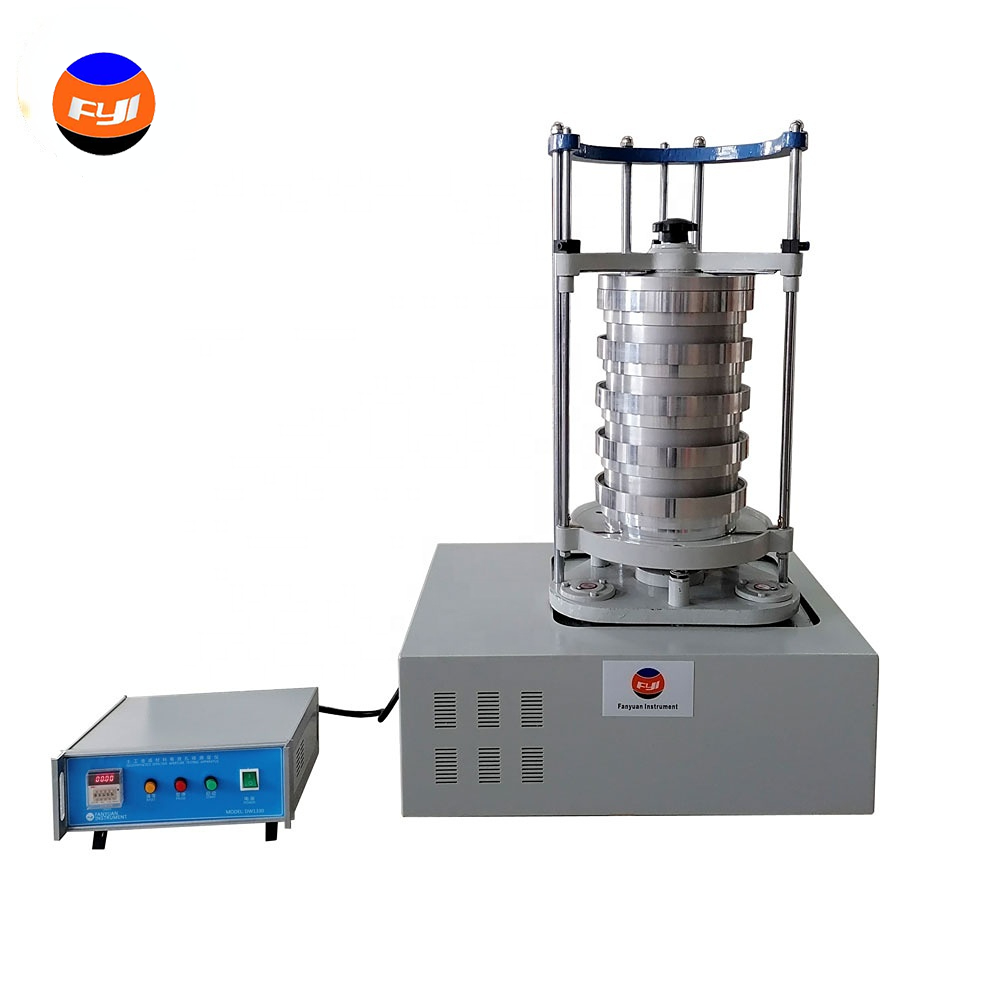

ASTM D4751 Dry Sieve Analysis Dry Sieving Shaker Set Dry Laboratory Sieve DW1330D is used to determine the apparent/equivalent opening size of a geotextile by sieving sized glass beads through the geotextile, using the dry-sieve principle. A geotextile specimen is placed in a sieve frame and sized glass beads are placed on the geotextile surface.
DW1330D
FYI
Sliver and blue
1PCS
China
By TT or LC
15-20 days
Application
ASTM D4751 Dry Sieve Analysis Dry Sieving Shaker Set Dry Laboratory Sieve DW1330D
is used to determine the apparent/equivalent opening size of a geotextile by sieving sized glass beads
through the geotextile, using the dry-sieve principle.
A geotextile specimen is placed in a sieve frame and sized glass beads are placed on the geotextile surface.
The geotextile and frame are shaken laterally so that the jarring motor will induce the beads to pass through
the test specimen.
The procedure is repeated on the same specimen with various sized glass beads until its apparent opening
size has been determined. The apparent opening size (O90/O95)
of the geotextile corresponds to a specified size of graded glass beads passed (d90/d95).
RELATED STANDARDS:
STANDARDS | ASTM D4751 | GB/T 14799 |
this Dry Sieving can conform to but not limit to all the standards above, for more standards conformance,
please contact us.
Features OF Dry Sieve Analysis :
1.Mechanical sieve shaker vibrates smoothly and efficiently;
2. Two vibration mode: lateral and vertical;

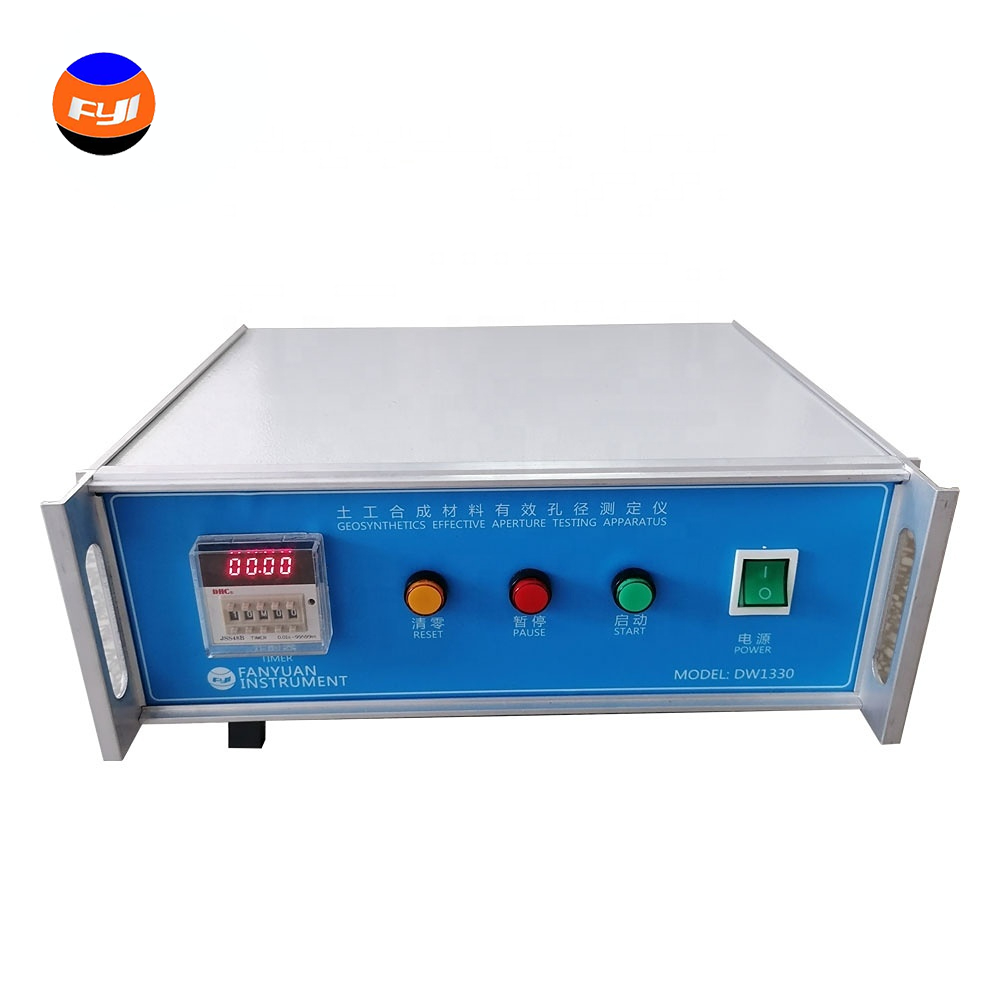

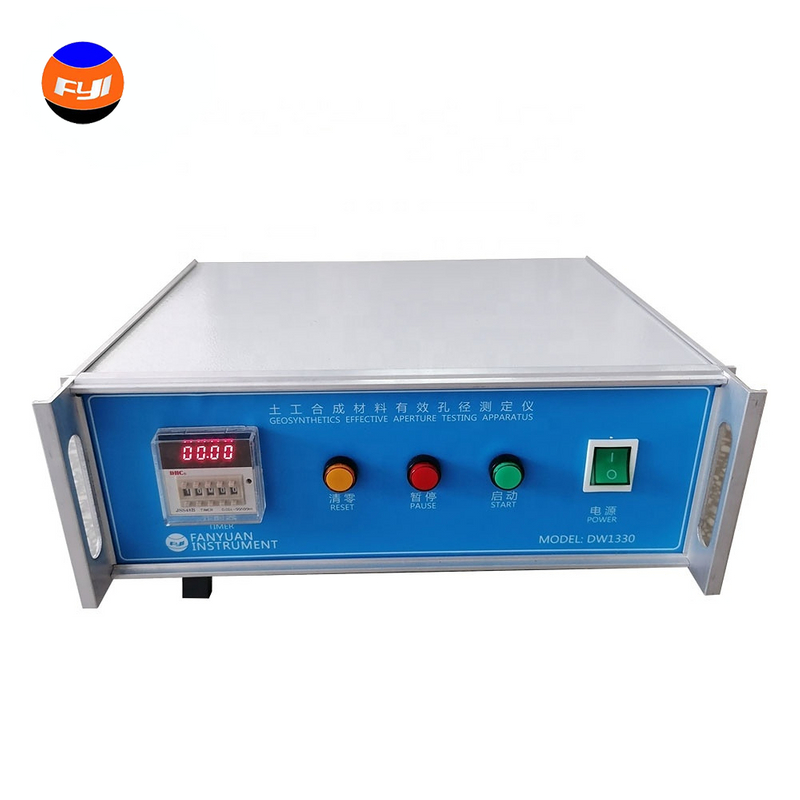

3. Vibrating time is settable;
4. Digital display of time.
Key specifications Of Dry Sieve Analysis:
Inner diameter of sieves | Ф200mm |
Sieve material | Aluminium |
Number of sieves | 5 |
Superimposed height of sieves | 400mm |
Amplitude | 8mm |
Timer range | 0~99min59s |
Lateral vibration frequency | 221times/min |
Vertical vibration frequency | 147times/min |
Radius of gyration | 12.5mm |
Power supply | AC380V, 50Hz, 3phase |
Package dimensions | 720×440×1,140mm (L×W×H) |
Gross weight | 157kg |
Installation in customer's lab Training in FYI showroom
