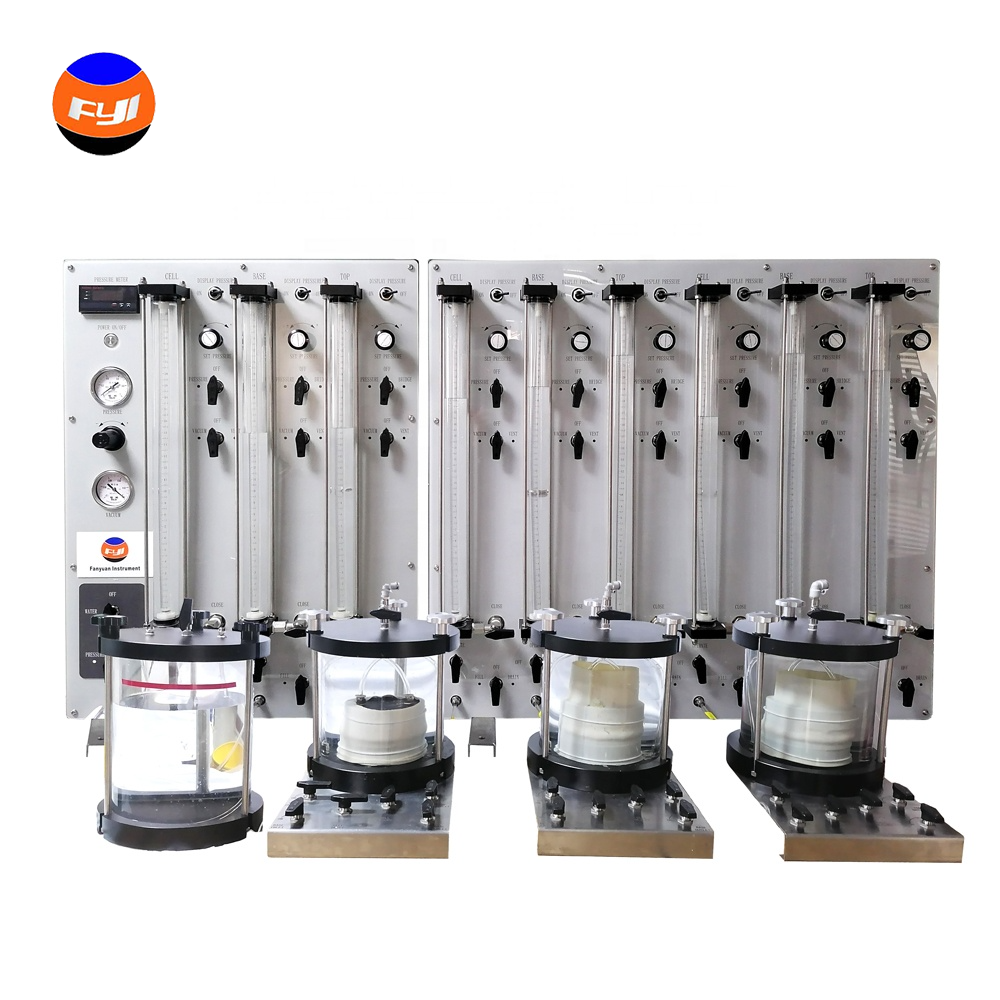

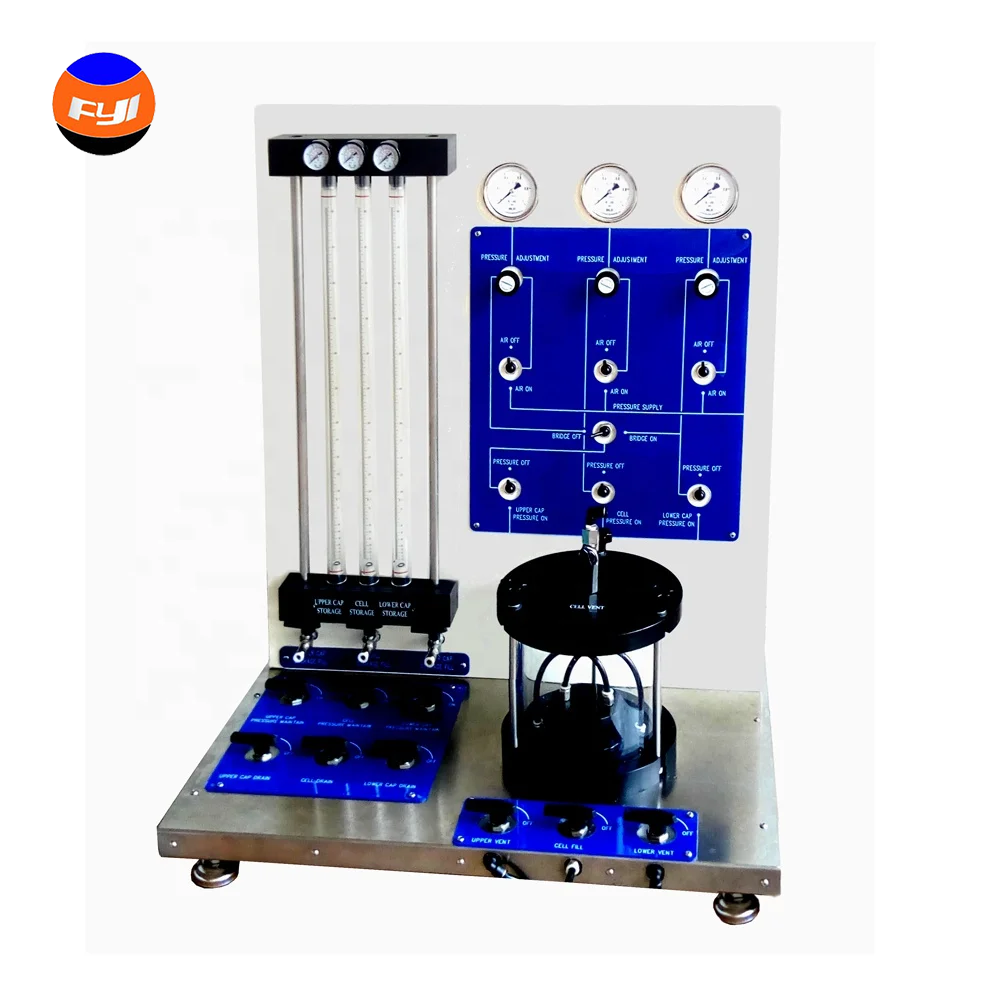

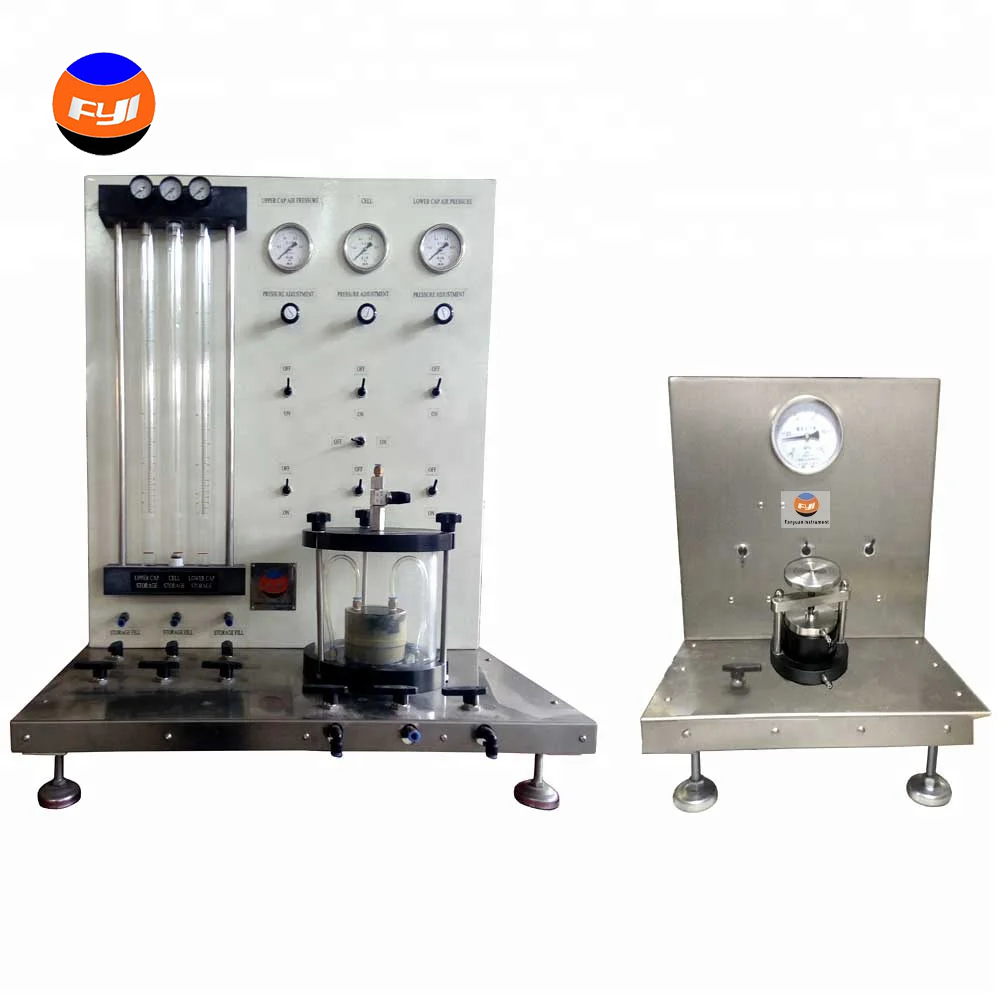

ASTM D5887 Geosynthetics Clay Liner Permeability Test Machine DW1350B is used to determine the permeability coefficient/hydraulic conductivity of saturated geosynthetics clay liner (GCL) specimens under conditions of specified pressure and specified period time. It is consisted of 1 main machine (1 position) and 1 set auxiliary unit (2 positions) to extend the machine’s capacity of 3 positions.
DW1350B
FYI
white and black
1PCS
China
By TT or LC
15-20 days
Application
ASTM D5887 Geosynthetics Clay Liner Permeability Test Machine DW1350B
is used to determine the permeability coefficient/hydraulic conductivity of
aturated geosynthetics clay liner (GCL) specimens under conditions of specified pressure and specified
period time. It is consisted of 1 main machine (1 position) and 1 set auxiliary unit (2 positions) to extend the machine’s capacity of 3 positions..
Features OF Geosynthetics Clay Liner Permeability Test Machine
1. With the capacity of testing 3 samples simultaneously or 1 sample only;
2. The pipeline leading to each permeate cell equipped with shut-off valve, allowing the sample preparation, exhaust, and other testing operation in each permeate cell be carried out independently;
3. Equipped with water degassing device, allowing the test water is degassed water, making sure more accurate test results;
4. Permeate cells are movable, allows more convenient operation;
5.Transparent permeate cell and reservoirs, convenient to observe the test process;
6.Main body made of aluminum alloy and oxidization-treatment surface, good-looking and water-proof;
7.Stainless steel bolt rod, strong-resistance to corrosion;
8.Independent high precise pressure regulating systems for cell pressure, influent pressure and effluent pressure;
9. Influent pressure and effluent pressure also can be regulated simultaneously;
10. Cell pressure, influent pressure and effluent pressure is digital displayed by switching corresponding switch, display resolution is 1Kpa;
11. Visual flow measurement directly read from scales of reservoirs, accurate to 0.05ml.
Key specifications
Type | Bench-top |
Test specimen diameter | Φ100mm |
Test specimen thickness | Up to 50mm |
Pressure method | Air pressure |
Permeate cell pressure | 0~600kPa, continuously-adjustable |
Influent/effluent pressure | 0~550kPa, continuously-adjustable |
Pressure regulating method | Manual |
Pressure regulating accuracy | 1KPA |
Flow measurement | Read from scale on reservoir, accuracy 0.05ml |
Reservoir capacity | 25/400ml*9 |
Porous end piece diameter | Φ100mm |
Degassing cell volume | Max. 5000ml |
Permeate cell | Transparent |
Dimensions | Main machine:600*180*860 (L*W*H) Auxiliary unit:900*180*860mm (L*W*H) |
Net weight | Main machine:180kg Auxiliary unit:200kg |
Power | Main machine: AC220V 50HZ 100W |
