DW1280
FYI
White and black
1PCS
China
By TT or LC
APPLICATION:

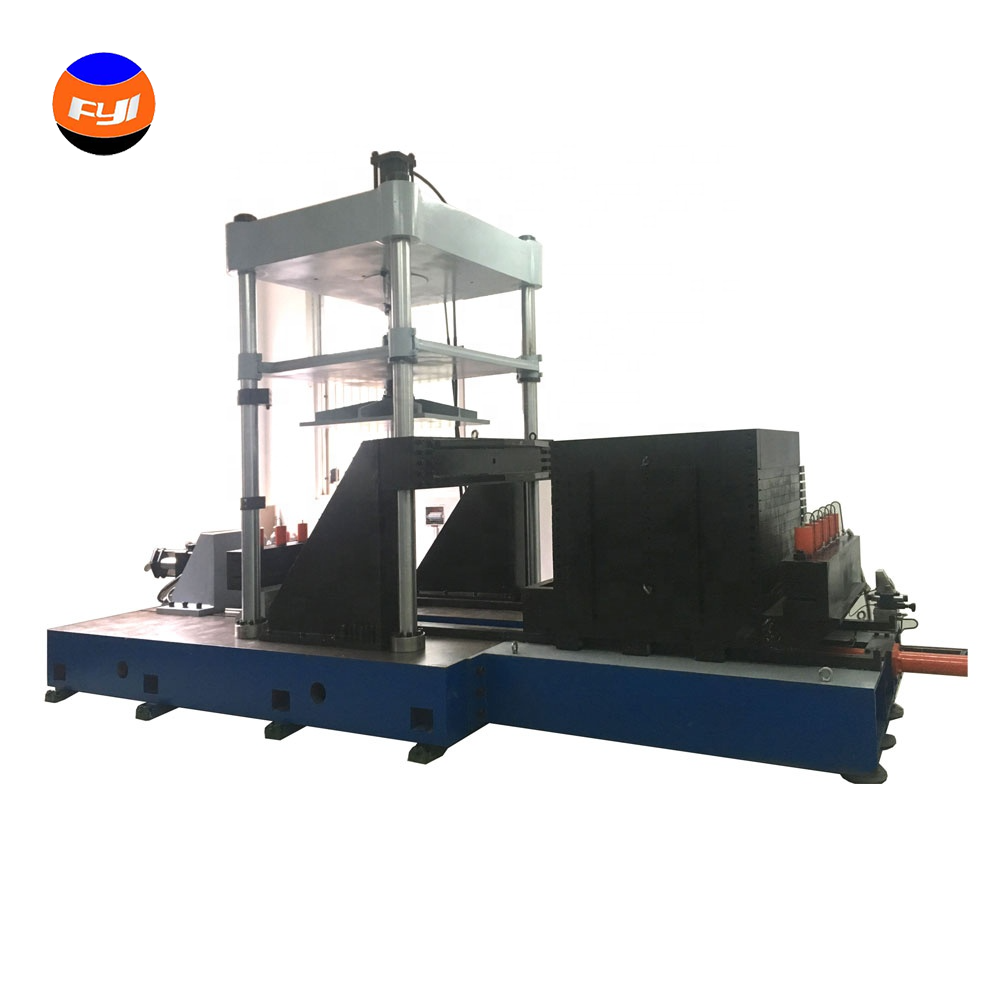

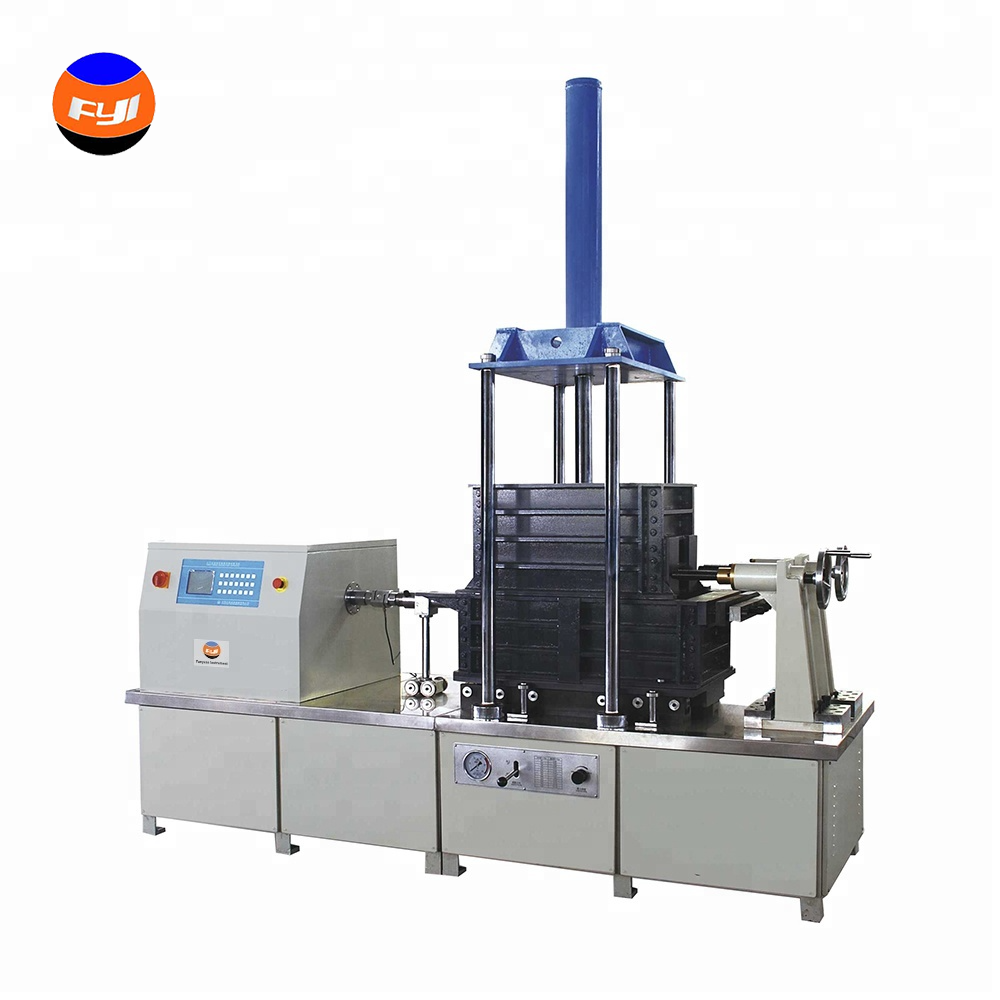

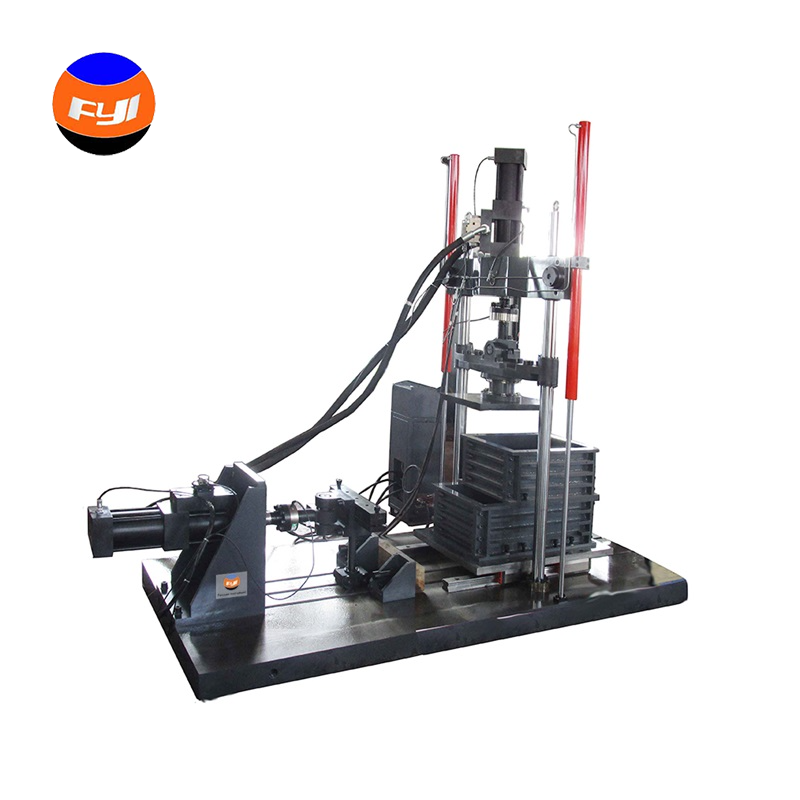

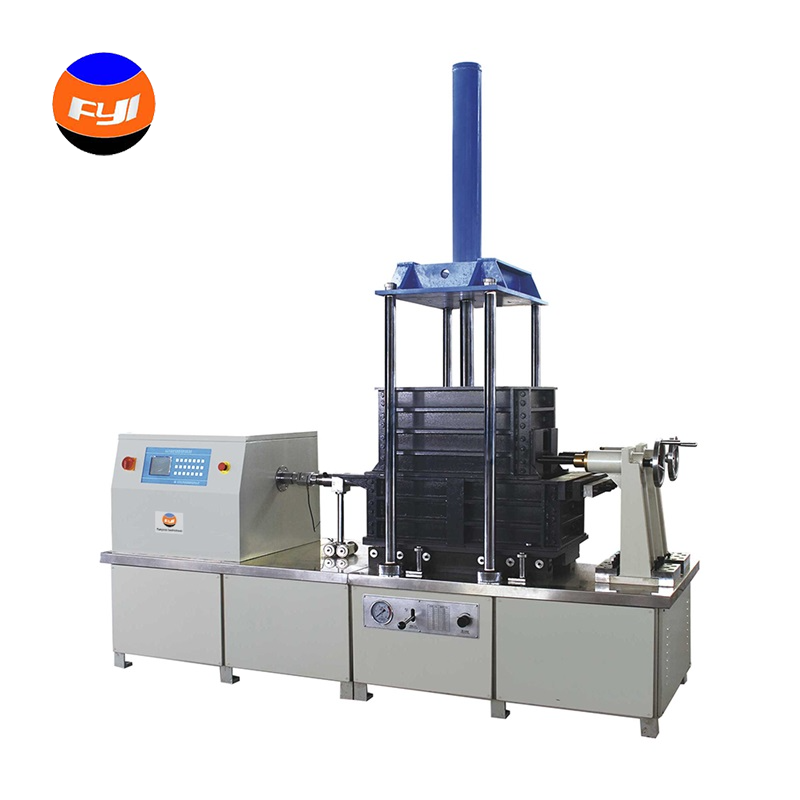

ASTM D5321 ASTM D6706 ISO 12957 Direct Shear Apparatus Test Machine DW1280
is used to determine the shear resistance and the pullout resistance of a geosynthetic against soil,
a geosynthetic against another geosynthetic, or a Geosynthetic clay liner against an adjacent material,
by the directly shear test and by the pullout test separately.
The test results obtained are used in the design of structures that employ geosynthetics,
also used for quality control during construction of these structures. It is suitable for geotextiles,
geomembranes, geonets and geogrids, etc
Related Standards:
Shear Test Apparatus :
STANDARDS | ISO 12957.1 | ASTM D5321 | GB/T 17635.1 |
SL/T 235 | JTG E50 T1129 |
Pullout test:
STANDARDS | ASTM D6706 | SL/T 235 | JTG E50 T1130 |
Note: this Direct Shear Apparatus can conform to but not limit to all the standards above, for more standards conformance, please contact us.
FEATURES OF Direct Shear Test Apparatus :
1For direct shear test, adopt detachable drive unit, which can be moved from one shear box to another,
allowing the testing of one sample while another sample is being prepared in a separate box.
2.For pullout test, the box is removable of a constant rate controlled by the servo motor;
it is as same as moving box in direct shear test.
3.The machine consists of servo motor, load cell, control panel, transducer, readouts for the sensors, etc.
4. The drive system is mounted on a wheeled frame to allow for easy separation from the sample box.
5. The box has low friction linear bearings when moving.
6. Digital readout for each test and can be connected to PC for data analysis.
KEY SPECIFICATION OF Direct Shear Machine:
Model | DW1280 | DW1280L | DW1280D |
Upper shear box | 300*300*200mm | 600*400*300mm | 600*400*300mm |
Lower shear box | 300*300*200mm | 800*400*300mm | 800*400*300mm |
Pullout box | 300*300*340mm | 600*400*500mm | 600*400*500mm |
Normal load mode | Hydraulic | ||
Normal pressure | 50~400kPa, can be customized | Static load: 50-400kPa Dynamic load: 50-300kPa | |
Normal pressure accuracy | 2% | ||
Horizontal driving mode | Motorized | Hydraulic | |
Max. horizontal load | 50KN | 100KN | |
Horizontal load accuracy | 0.5% | ||
Shear / pullout rage | 0.1~10mm/min | 0.3~10mm/min | |
Direct shear displacement | 0~100mm | ||
Pullout displacement | 0~150mm | ||
Displacement accuracy | 0.01mm | ||
Return speed | 50mm/min | ||
Data output mode | Printed or displayed on PC | ||
Equipped with terminal displacement measuring device | |||
Power supply | AC380V, 50Hz | ||
Dimensions | 1,500*900*1,800mm (L*W*H) | ||
Net weight | 1,000kg | ||
