DW1290
FYI
White and blue
1PCS
China
By TT or LC
APPLICATION:

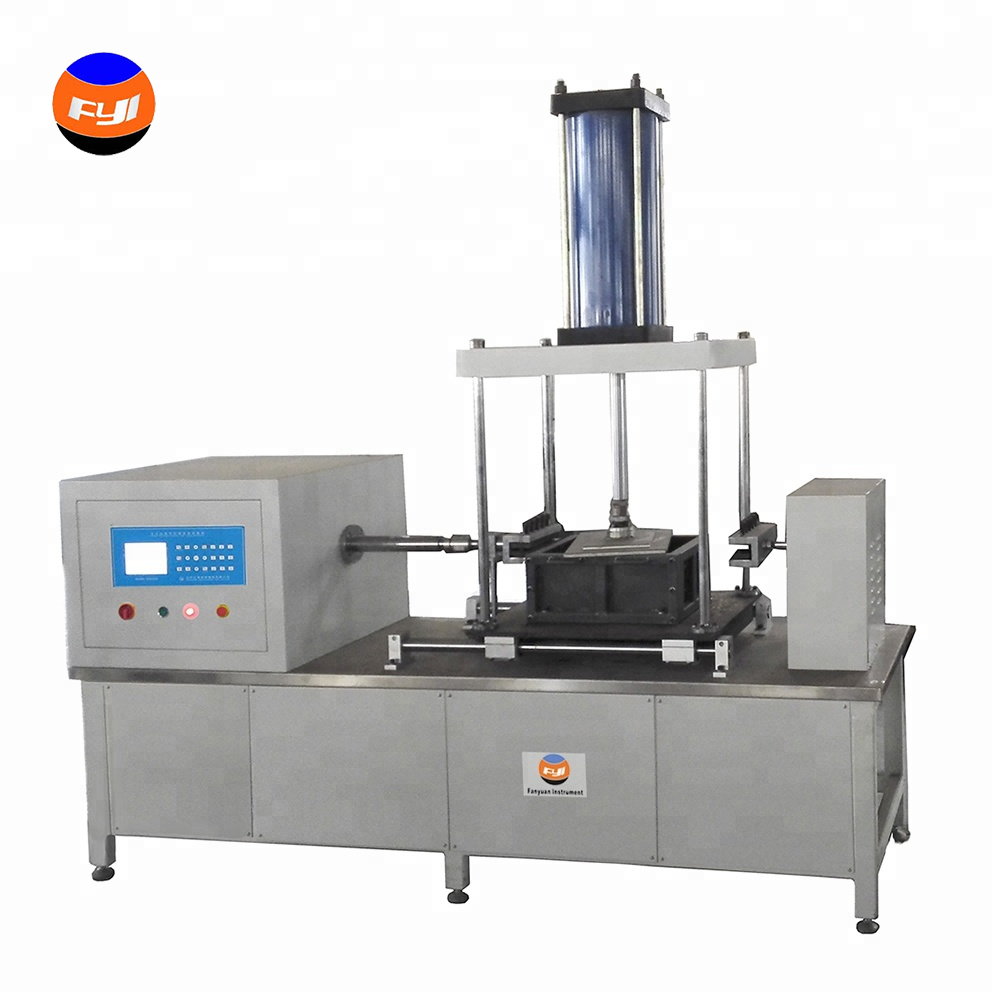

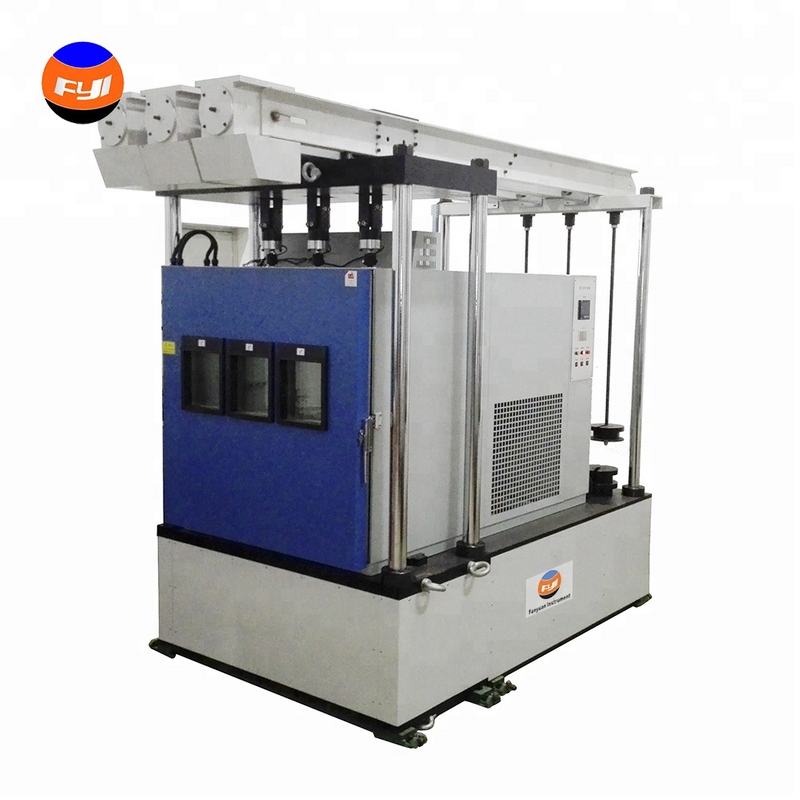

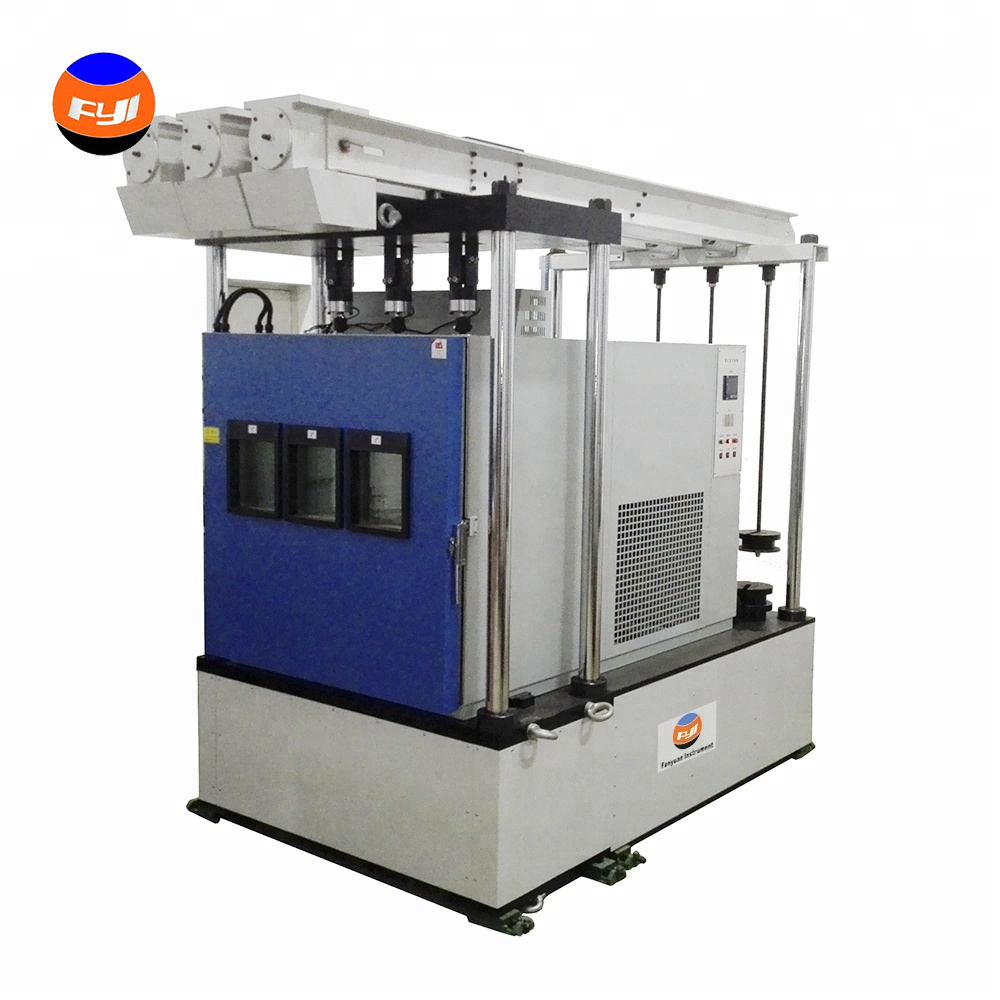

ISO 13431 ASTM D5262 Creep Testing Machine for Geosynthetics DW1290
Related Standards:
STANDARDS | ISO 13431 | ASTM D5262 | GB/T 17637 |
Note: this Creep Testing Machine can conform to but not limit to all the standards above, for more standards conformance, please contact us.
FEATURES OF Creep Testing Machine:
1.Compact structure, nice appearance, stable performance, easy maintenance;
2.Electronic or mechanical loading system, stable and accurate sample creep loading;
3.Microcomputer control, LCD display, simple and convenient;
4. Equipped with professional clamp, effectively prevent slippage and damage of samples during the test process; sample loading is labor-saving, convenient and reliable;
5.High-speed data acquisition and signal transmission system, real-time data collection, and transmission signals,
it is accurate and reliable;
6. Equipped with high precision sensor, high sensitivity and good reproducibility, further reduce the test errors;
7. Working position no. can be customized, more samples can be tested simultaneously, full of high efficiency and energy saving;
8. Easy to install, easy to operate, long service life;
9. Equipped with Uninterruptible Power Supply (UPS), provide max. 24 hours power supply after power interruption; (Optional)
10. High precision temperature control system, good accuracy and uniformity; (Optional)
KEY SPECIFICATION OF Creep Machine:
Model | DW1290DH | DW1290MV |
Tester type | Horizontal | Vertical |
Loading mode | Electronic | Mechanical |
Capacity | 0~50KN | 0~20KN |
Load resolution | 0.01KN | 0.001KN |
Load accuracy | ±1%FS | ±1%FS |
Working position no. | 1 | 3 (can be customized) |
Max. effective displacement | 900mm | 600mm |
Displacement accuracy | 0.03mm | 0.02mm |
Speed | 0.3~50mm/min | |
Tempt (Optional) | RT~70oC (can be customized) | |
Tempt fluctuation (Optional) | 1oC | |
Tempt uniformity (Optional) | ±2oC | |
APPLICATION:
ISO 13431 ASTM D5262 Creep Testing Machine for Geosynthetics DW1290
Related Standards:
STANDARDS | ISO 13431 | ASTM D5262 | GB/T 17637 |
Note: this Creep Testing Machine can conform to but not limit to all the standards above, for more standards conformance, please contact us.
FEATURES OF Creep Testing Machine:
1.Compact structure, nice appearance, stable performance, easy maintenance;
2.Electronic or mechanical loading system, stable and accurate sample creep loading;
3.Microcomputer control, LCD display, simple and convenient;
4. Equipped with professional clamp, effectively prevent slippage and damage of samples during the test process; sample loading is labor-saving, convenient and reliable;
5.High-speed data acquisition and signal transmission system, real-time data collection, and transmission signals,
it is accurate and reliable;
6. Equipped with high precision sensor, high sensitivity and good reproducibility, further reduce the test errors;
7. Working position no. can be customized, more samples can be tested simultaneously, full of high efficiency and energy saving;
8. Easy to install, easy to operate, long service life;
9. Equipped with Uninterruptible Power Supply (UPS), provide max. 24 hours power supply after power interruption; (Optional)
10. High precision temperature control system, good accuracy and uniformity; (Optional)
KEY SPECIFICATION OF Creep Machine:
Model | DW1290DH | DW1290MV |
Tester type | Horizontal | Vertical |
Loading mode | Electronic | Mechanical |
Capacity | 0~50KN | 0~20KN |
Load resolution | 0.01KN | 0.001KN |
Load accuracy | ±1%FS | ±1%FS |
Working position no. | 1 | 3 (can be customized) |
Max. effective displacement | 900mm | 600mm |
Displacement accuracy | 0.03mm | 0.02mm |
Speed | 0.3~50mm/min | |
Tempt (Optional) | RT~70oC (can be customized) | |
Tempt fluctuation (Optional) | 1oC | |
Tempt uniformity (Optional) | ±2oC | |
