YG611F
FYI
White+Blue
1PCS
China
By TT or LC
APPLICATION:

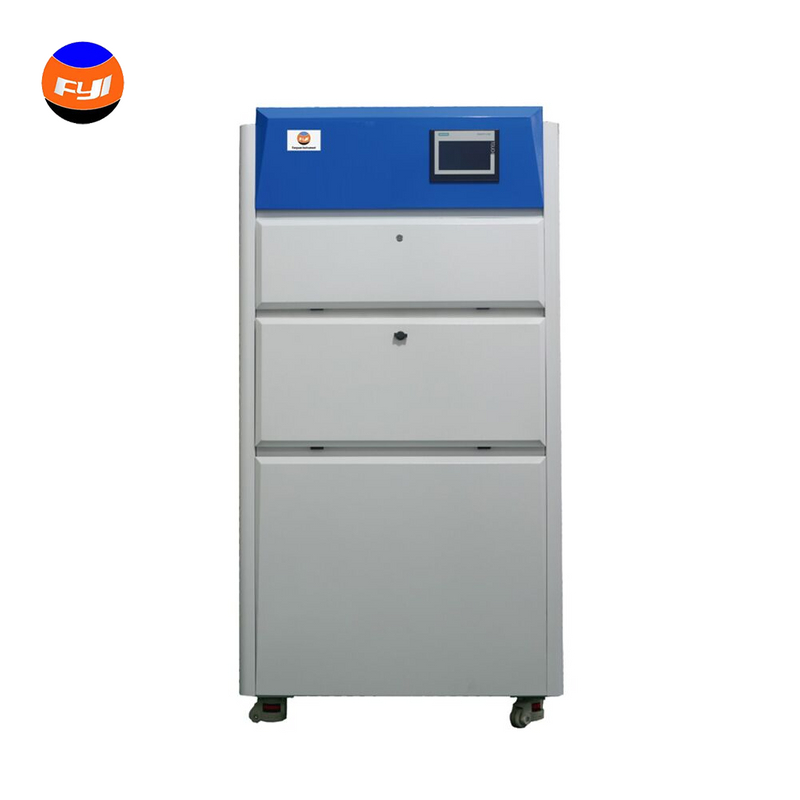

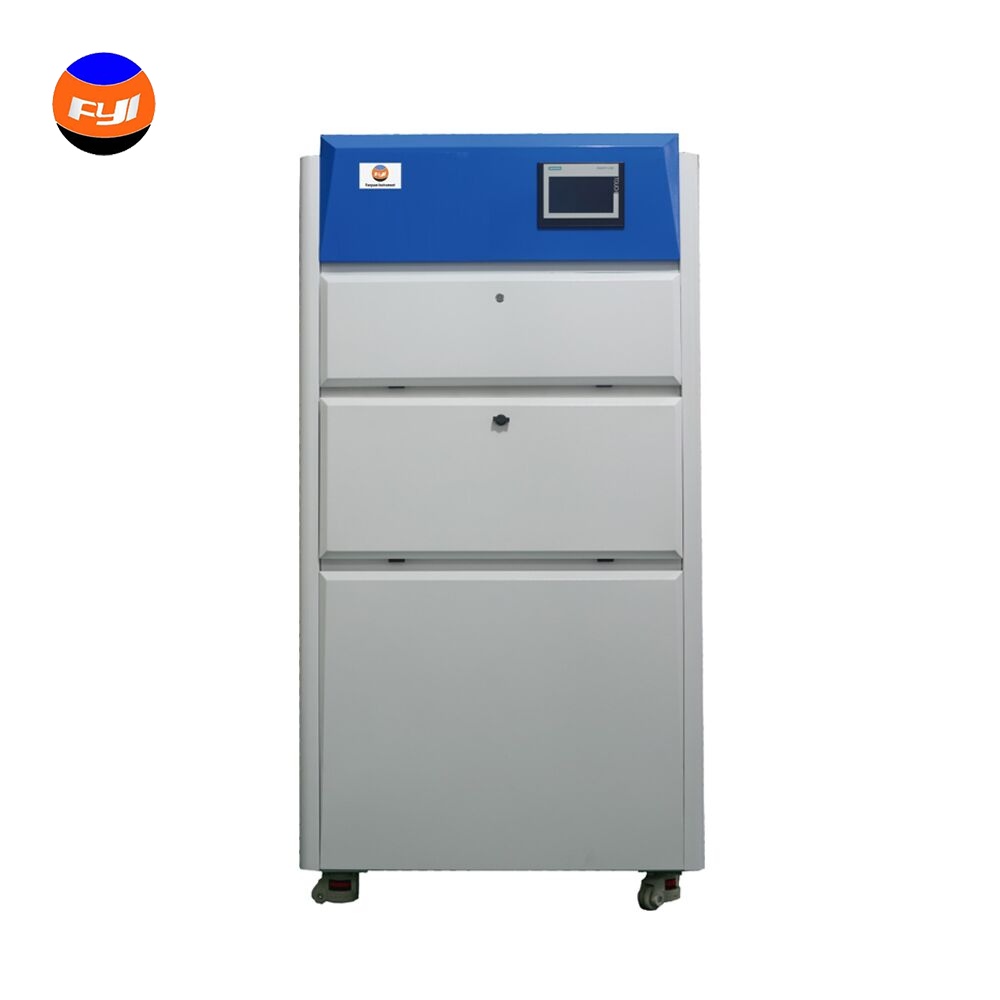

ASTM D4459 ISO 4892-2 Xenon Arc Weatherometer Test Chambers YG611F is adopts xenon-arc lamps
that can simulate and strengthen the full solar spectrum to reproduce the destructive light waves in different environments. Excellent accelerated fastness to light and weathering tests can be carried out on materials.
It can be used for screening new materials, improving existing materials or evaluating changes in durability
after changes in material composition in multiple industries.
Related Standards:
GB/T 1865-2009 | ISO 4892-2 | ASTM G155-1/4/5 |
GB/T 16422.2-2014 | ISO 11341 | ASTM D4459 |
GB/T1189-1991 | SAE_J_2412_2004 |
Note: this Xenon Arc Test Chambers can conform to but not limit to all the standards above, for more standards conformance, please contact us.
DETAILS & FEATURES OF Xenon Weathering Test Chamber :
1.The imported xenon lamps and independently developed high-performance power supplies are specially
designed for weathering tests, which provide optimal spectral power distribution across the lamp's
entire 1500 hours service life
2. All solar spectrum (including UV-light, visible light and infrared light) can be simulated and strengthened
for weathering tests;
3. Daylight filters, window glass filters and UV extended filters are available for different test requirements.
And the performance of daylight filters will not decline with age, making it needless to be replaced under normal operation;
4. The irradiance control system adopts a closed-loop control mode, which can achieve automatic compensation
and has high accuracy;
5. Low irradiance warning: when the irradiance drops below the set value by 5%, the built-in warning system of the irradiance control system will issue a warning;
6. Equipped an external irradiance calibration meter for calibrating the irradiance sensor;
7.Two types of temperature sensors are available: black panel temperature (BPT) or black standard temperature
(BST), and BPT/BST temperature calibration meter is provided for optional configuration, which ensures the
accuracy of the surface temperature of the sample greatly;
SPECIFICATIONS of xenon weatherometer
Xenon lamps | Air-cooled, 1800 W, 1500h service life |
Exposure area | 3100cm2 (45cm*70cm) |
Wavelength Control range | 340nm, 420nm, 300-400nm, 300-800nm |
Irradiance control range | Daylight filter: 0.25-0.68 W/(m2žnm) @340nm, precision: ±0.01 W/(m2žnm) 0.50-1.50 W/(m2žnm) @420nm, precision: ±0.01 W/(m2žnm) 25-78 W/m2 @300-400nm, precision: ±2 W/m2 250-750 W/m2@300-800nm, precision: ±5 W/m2 Window glass filter: 0.25-0.61 W/(m2žnm) @340nm, precision: ±0.01 W/(m2žnm) 0.50-1.32 W/(m2žnm) @420nm, precision: ±0.01 W/(m2žnm) 25-65 W/m2 @300-400nm, precision: ±2 W/m2 250-670 W/m2@300-800nm, precision: ±5 W/m2 |
Irradiance calibration | With external irradiance calibration meter |
Filter | Daylight, Window glass, UV extended |
Temperature sensor (Alternative) | BPT(Standard), temperature range: 45℃-90℃ (light cycle), 35℃-65℃ (dark cycle) BST(Optional), temperature range: 50℃-120℃ (light cycle), 35℃-65℃ (dark cycle) Fluctuation: ±3℃ |
Chamber Temperature | 35℃~65℃, uniformity: ≤3℃ |
Specimen tray | Single tier, flat structure |
Humidity range | 10~75%RH (Light cycle) 10~95%RH (Dark cycle) Fluctuation:±4%, Uniformity: ≤5% |
Power supply | AC380V, 50Hz, 3 phases |
Installation power | 9.5 kW |
Dimensions | 850×950×2,000mm (L×W×H) |
