YG605 serials
FYI
Silver+Black
1pcs
China
APPLICATION:

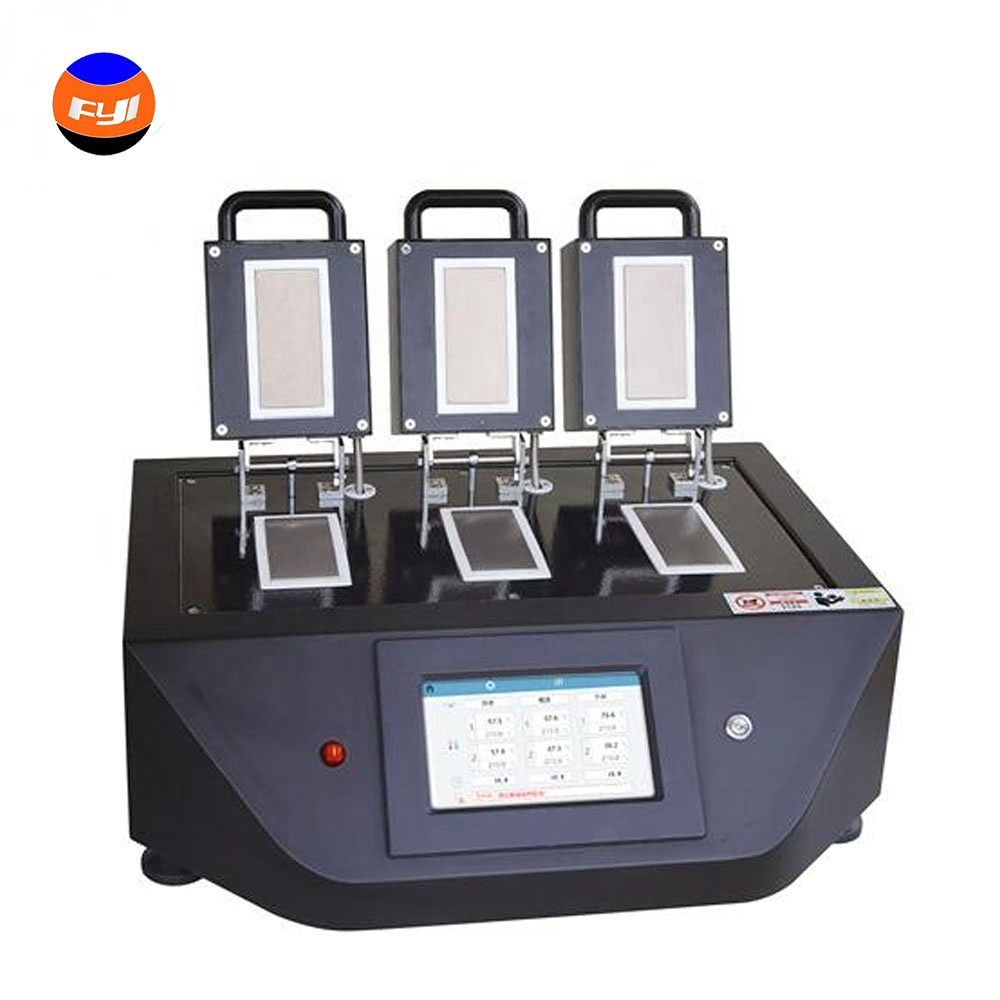

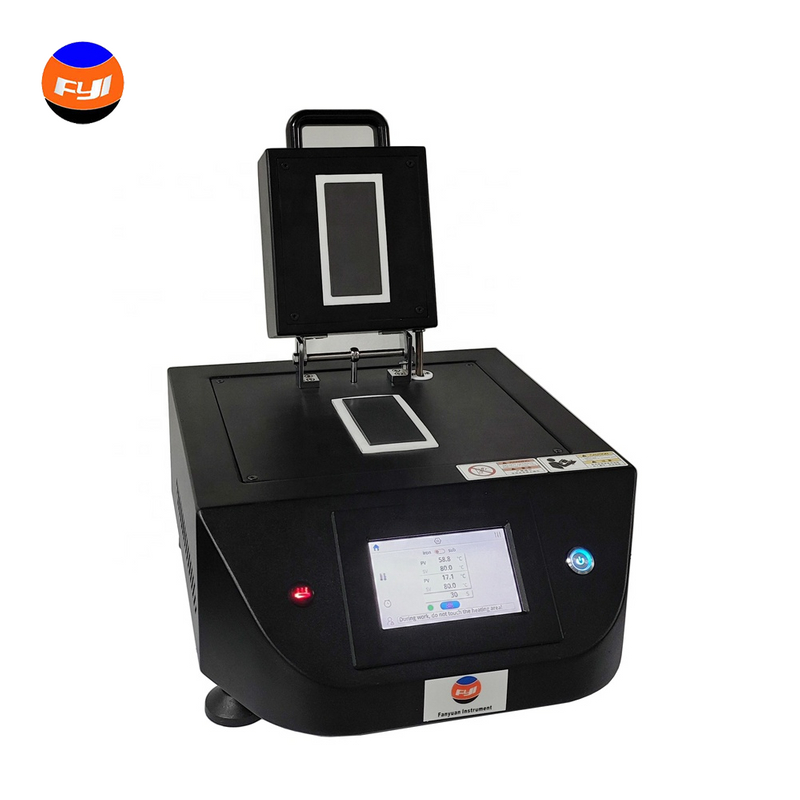

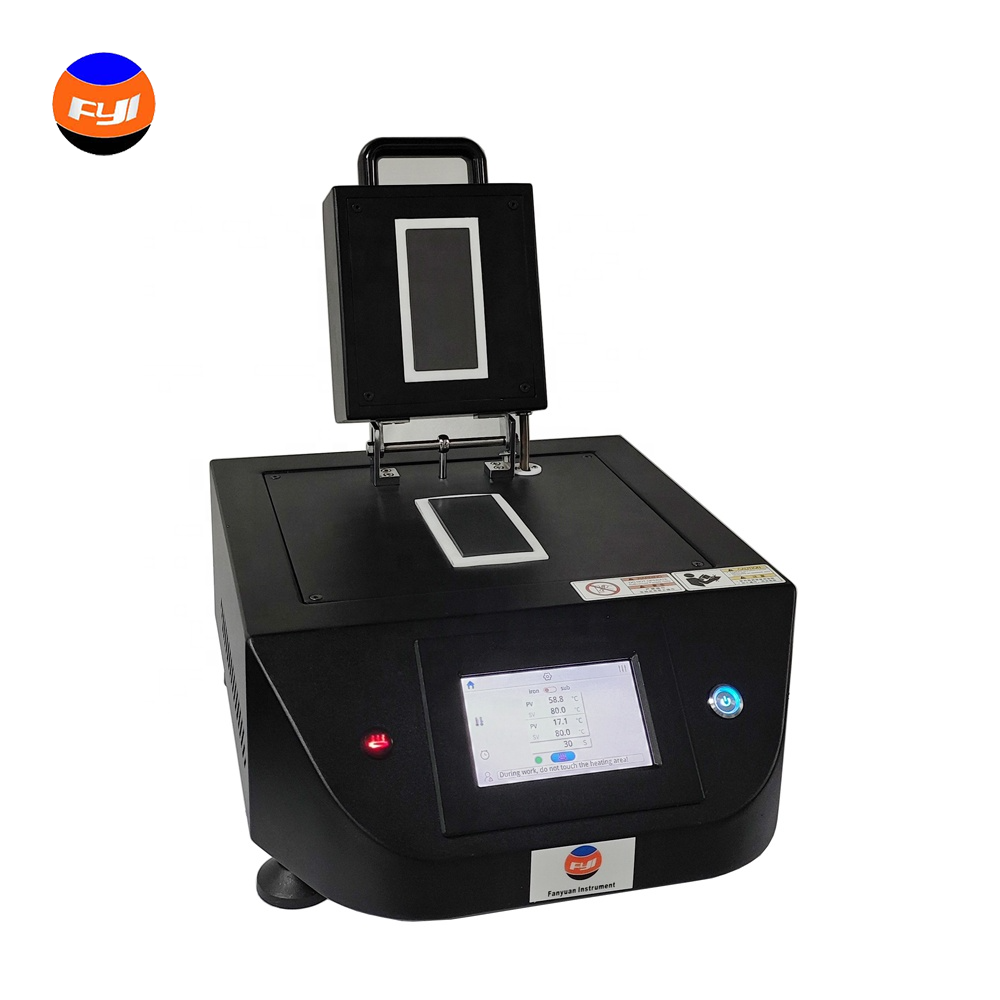

Sublimation Fastness Scorch Tester YG605 serials are used to determine the color fastness
to hot pressing and dry heat and also to conduct sublimation tests.
Providing controlled conditions of dry heat and pressure with top and bottom heated surfaces,
advanced temperature controller and carefully controlled top plate weight.
RELATED STANDARDS:
STANDARDS | GB/T 5718, 6152 | JIS L0850, L0879 | |
AATCC 117, 133 |
Note: this Sublimation Fastness can conform to but not limit to the standards above, for more standards conformance,
please contact us.
FEATURES pf Sublimation Fastness:
1. Industrial color touch screen is used for display and operation control.
2.Friendly man-machine interface is simple and easy to use, stable and reliable operation;
3.Chinese and English can be switched manually.
4. Advanced temperature control technology makes the heating block have good temperature uniformity.
5.The upper and lower heating blocks are made of aluminum alloy, which undergoes grinding and hard anodizing treatment to ensure excellent coupling between the heating blocks and the sample. The insulation surrounding the heating blocks is formed by polytetrafluoroethylene (PTFE) die-casting, providing superior thermal insulation properties.
6. Equipped with a high-temperature warning light, it promptly alerts the operator to avoid burns from high temperatures.
7. Prompt alarm after completion of testing time.
KEY SPECIFICATION of Sublimation Fastness tester :
Model | YG605S | YG605S-3 | YG605SA |
No. of position | 1 position | 3 positions | 1 position |
Heating block size | 50×110mm | 50×110mm | 125×125mm (5inch×5inch) |
Upper block weight | 16N | 16N | 62.5N |
Heating power | 360W | 1080W | 720W |
Heating mode | Scorch: single side heating Sublimation: dual sides heating | ||
Test pressure | 4kPa±1kPa | ||
Temperature range | RT~250℃ | ||
Temperature accuracy | ≤ ±2℃ | ||
Time range | 1~999s | ||
Display | Color touch screen | ||
Power supply | AC220V, 50Hz | ||
Machine dimensions | 360×430×250(mm) | 560×450×270(mm) | 360×464×250(mm) |
Weight | 15kg | 35kg | 20kg |
STANDARD CONFIGURATION:
No. | Item | YG605S | YG605S-3 | YG605SA |
1. | Main machine | 1 set | 1 set | 1 set |
2. | Asbestos sheet | 2 pcs | 6 pcs | 2 pcs |
APPLICATION:
Sublimation Fastness Scorch Tester YG605 serials are used to determine the color fastness
to hot pressing and dry heat and also to conduct sublimation tests.
Providing controlled conditions of dry heat and pressure with top and bottom heated surfaces,
advanced temperature controller and carefully controlled top plate weight.
RELATED STANDARDS:
STANDARDS | GB/T 5718, 6152 | JIS L0850, L0879 | |
AATCC 117, 133 |
Note: this Sublimation Fastness can conform to but not limit to the standards above, for more standards conformance,
please contact us.
FEATURES pf Sublimation Fastness:
1. Industrial color touch screen is used for display and operation control.
2.Friendly man-machine interface is simple and easy to use, stable and reliable operation;
3.Chinese and English can be switched manually.
4. Advanced temperature control technology makes the heating block have good temperature uniformity.
5.The upper and lower heating blocks are made of aluminum alloy, which undergoes grinding and hard anodizing treatment to ensure excellent coupling between the heating blocks and the sample. The insulation surrounding the heating blocks is formed by polytetrafluoroethylene (PTFE) die-casting, providing superior thermal insulation properties.
6. Equipped with a high-temperature warning light, it promptly alerts the operator to avoid burns from high temperatures.
7. Prompt alarm after completion of testing time.
KEY SPECIFICATION of Sublimation Fastness tester :
Model | YG605S | YG605S-3 | YG605SA |
No. of position | 1 position | 3 positions | 1 position |
Heating block size | 50×110mm | 50×110mm | 125×125mm (5inch×5inch) |
Upper block weight | 16N | 16N | 62.5N |
Heating power | 360W | 1080W | 720W |
Heating mode | Scorch: single side heating Sublimation: dual sides heating | ||
Test pressure | 4kPa±1kPa | ||
Temperature range | RT~250℃ | ||
Temperature accuracy | ≤ ±2℃ | ||
Time range | 1~999s | ||
Display | Color touch screen | ||
Power supply | AC220V, 50Hz | ||
Machine dimensions | 360×430×250(mm) | 560×450×270(mm) | 360×464×250(mm) |
Weight | 15kg | 35kg | 20kg |
STANDARD CONFIGURATION:
No. | Item | YG605S | YG605S-3 | YG605SA |
1. | Main machine | 1 set | 1 set | 1 set |
2. | Asbestos sheet | 2 pcs | 6 pcs | 2 pcs |
