Y902H
FYI
Silver+Black
1pcs
China
APPLICATION:

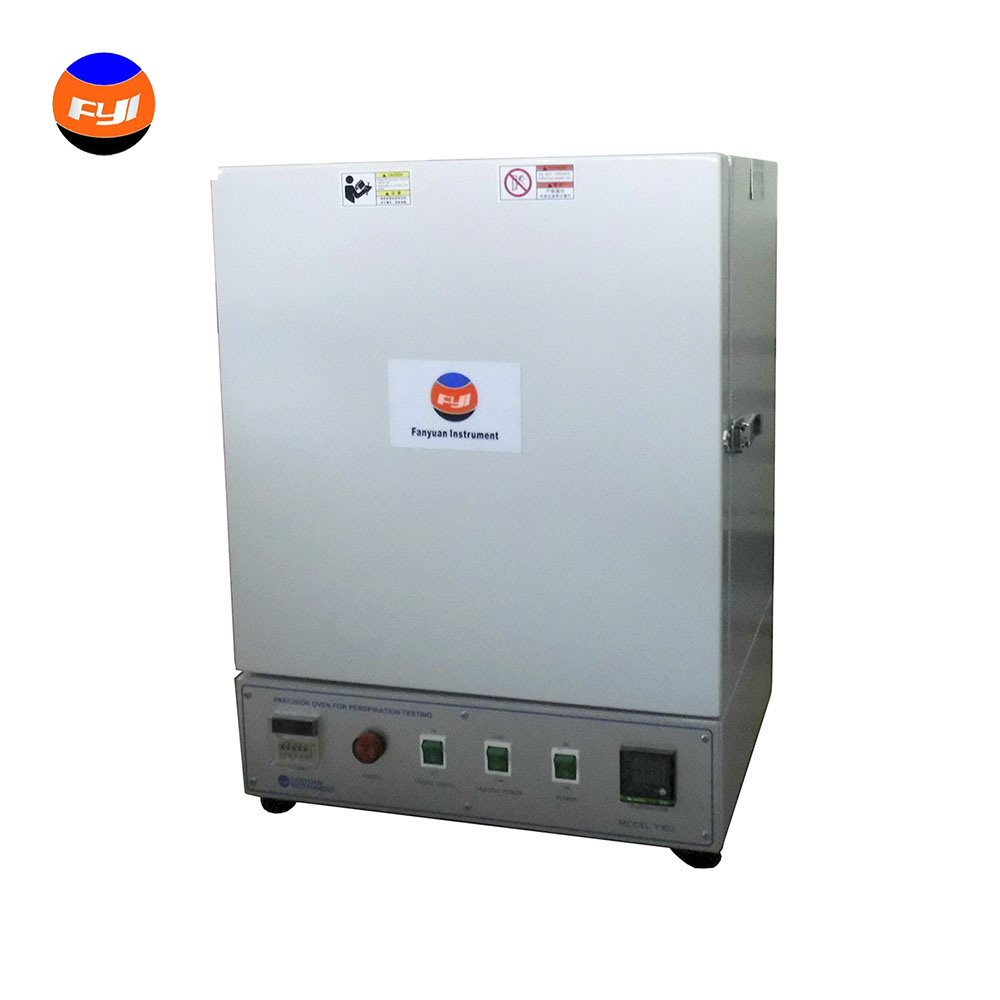

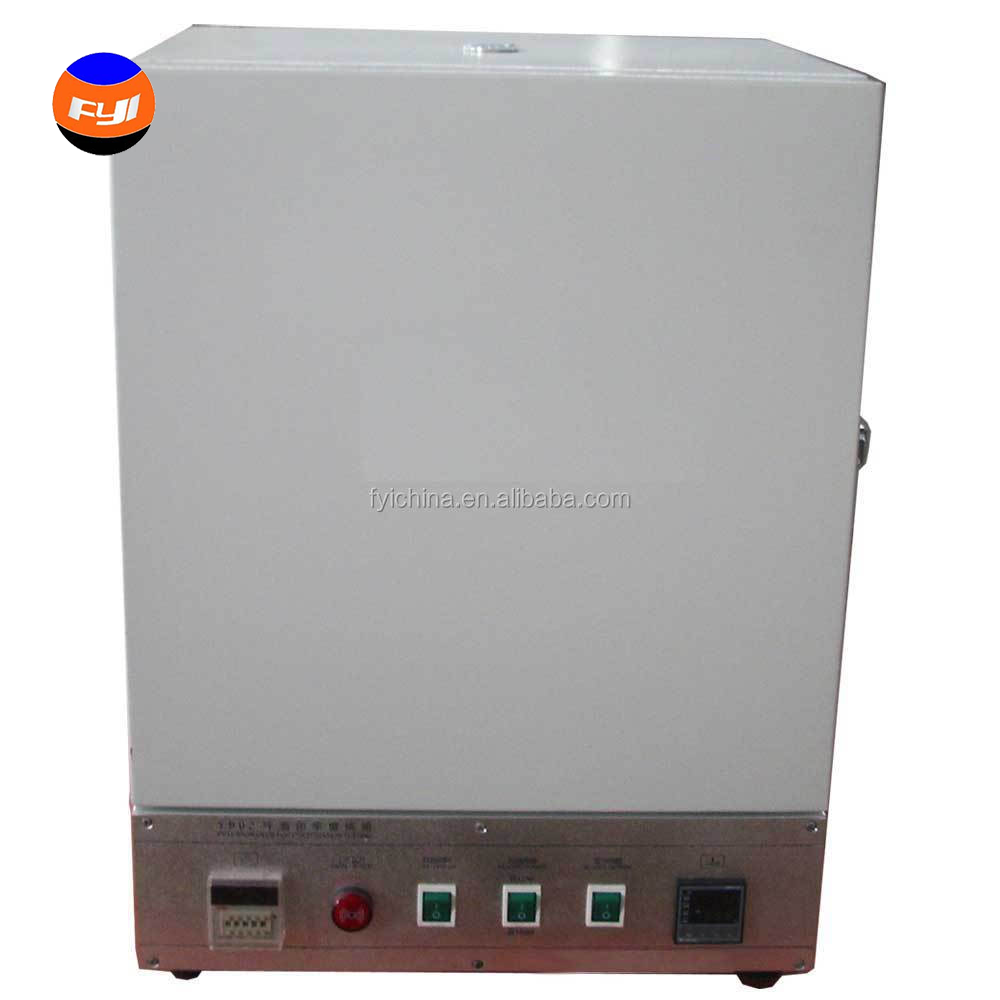

Y902H Perspirometer Oven for Color Fastness To Perspiration is suit for color fastness
to perspiration tester and precision oven for perspiration testing.
AATCC 15 AATCC 165 ISO 105 Perspirometer Color Fastness To Perspiration YG631M
consists of two parts: color fastness to perspiration tester and precision oven for perspiration testing.
The kit is used to determine color fastness to water and perspiration of textiles, etc.
RELATED STANDARDS :
STANDARDS | ATCC 15, 106, 107, 165 | ISO 105-E01, E02, E04 |
GB/T 3922, 5713, 5714 | JIS L 0846, 0847, 0848 |
Note: this tester can conform to but not limit to the standards above, for more standards conformance,
please contact us.
FEATURES:
Y902H Perspirometer Oven :
1.Mechanical convection oven;
2. Micro-computer with PID parameters controlling function, avoid temperature overshoot;
3.Adopt advanced design of blast system, and the temperature fluctuation is low, Temperature uniformity is stable;
4.Heater is controlled by contactless solid state relay, no noise, long service life;
5. Oven temperature and time are pre-settable with temperature duly displayed;
6. Digital timer with audible alarm when the preset time is over;
7. The working chamber is made of 304 mirror-like stainless steel plate, effectively prevent acid and alkali corrosion;
8. With two layers of stainless steel shelf, each layer can be placed two test frames, there are max. four test frames for each test, it surely saves energy and improve work efficiency;
9. The door has a large size of double tempered glass observation window
KEY SPECIFICATION:
YG631 Series color fastness to rubbing | ||
Model | YG631M | YG631 |
Total pressure on test specimens | ISO: (12.5±0.9) kPa AATCC: 4.54 kg (10 lb) | ISO: (12.5±0.9) kPa |
Resin plate area | 60×115mm | |
Dimensions | 210×100×160mm (L×W×H) | |
Net weight | 12kg | |
Y902H Precision Oven for Perspiration Testing | |
Temperature range | RT ~ 99.9oC, settable |
Temperature fluctuation | ±1oC |
Temperature uniformity | ±2oC |
Timer | 1~99h/99min/99s |
Working chamber volume | 28L |
Max number of test frame | 4 |
Power supply | AC220V, 50Hz, 450W |
Working chamber dimensions | 340×320×260mm (L×W×H) |
External dimensions | 620×500×490mm (L×W×H) |
Net weight | 55kg |
