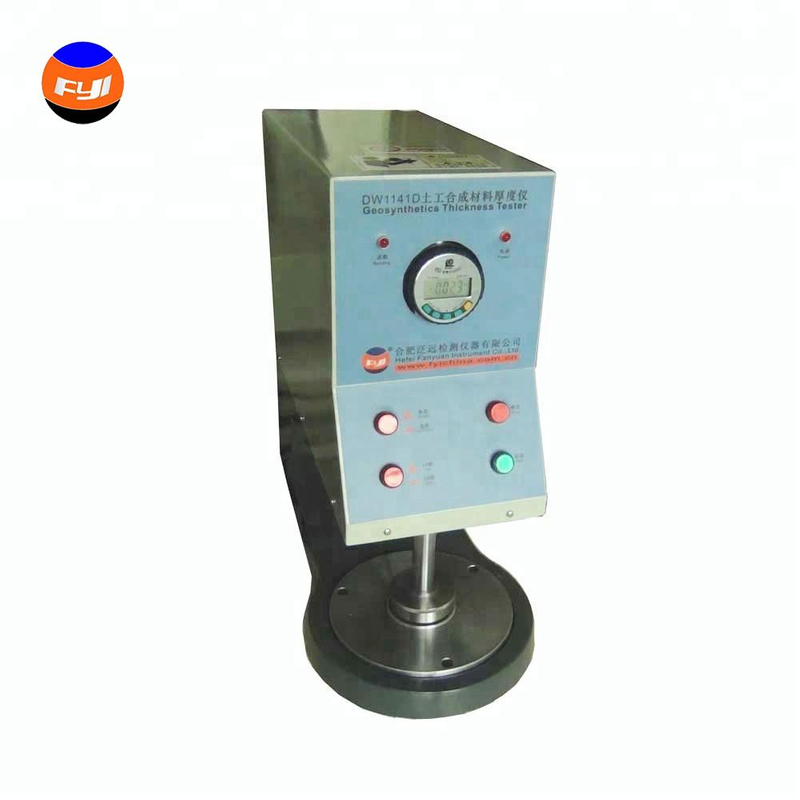

ASTM D5199 D1777 Digital Thickness Gauge DW1141D is used to determine the thickness of various geosynthetics, woven, nonwoven and knitted fabrics under a certain pressure
DW1141D
FYI
White or Black
1PCS
China
ASTM D5199 D1777 Digital Thickness Gauge DW1141D is used to determine the
thickness of various geosynthetics, woven, nonwoven and knitted fabrics under a certain pressure
STANDARDS | ISO 9863-1(Φ10mm) | ASTM D5199, D1777 |
Note: Fabric Thickness Gauge can conform to but not limit to the standards above, for more standards conformance, please contact us.
1. Lifting up and down electrically; display thickness automatically by digital LED;
2. With continuous and single measuring function, improve measuring efficiency;
3. Pressuring time pre-settable, avoid error caused by manual operation;
4. Provide two units of thickness for choosing, mm or inch;
5. Dead weight loading system.
KEY SPECIFICATIONS
Measuring range | 0.001~20mm | |
Resolution | 0.001mm | |
Accuracy | 0.01mm | |
Diameter of presser foot | Standard: | Φ10±0.5mm |
Optional: | Φ56.4±0.05mm, Φ6.35±0.05mm, | |
Φ28.7±0.02mm, Φ9.5±0.02mm | ||
Pressure | Φ10±0.5mm: | 2kPa±0.5%, 20kPa±0.5%, 200kPa±0.5% |
Φ56.4±0.05mm: | 2±0.02kPa | |
Φ6.35±0.05mm: | 20±0.2kPa, 200±2kPa, 172±14kPa | |
Φ28.7±0.02mm: | 4.14±0.21kPa, 0.7±0.07kPa, 7.58±0.21kPa | |
Φ9.5±0.02mm: | 23.4±0.7kPa | |
Pressing duration | 10s, 30s (3s, 5s can be customized) | |
Power supply | AC220V, 50Hz | |
Dimensions | 410*160*300mm (L*W*H) | |
Weight | 25kg | |
