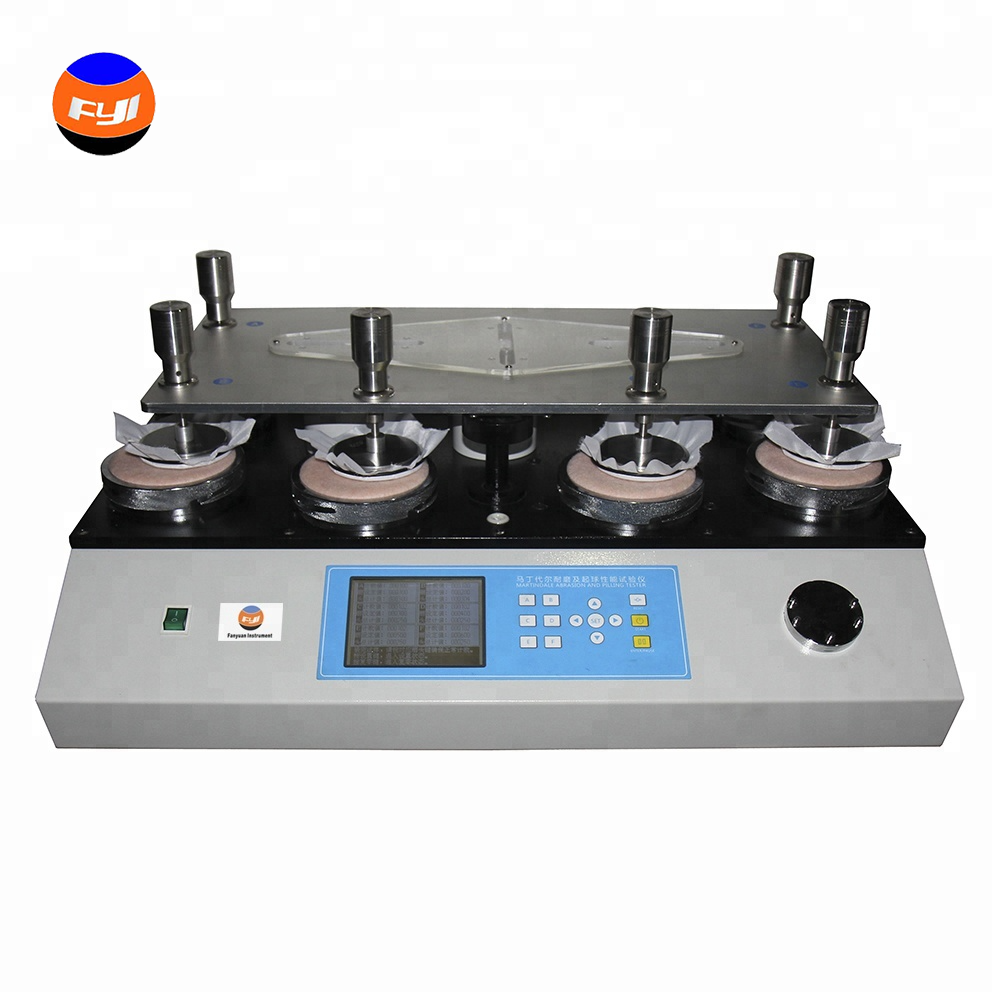

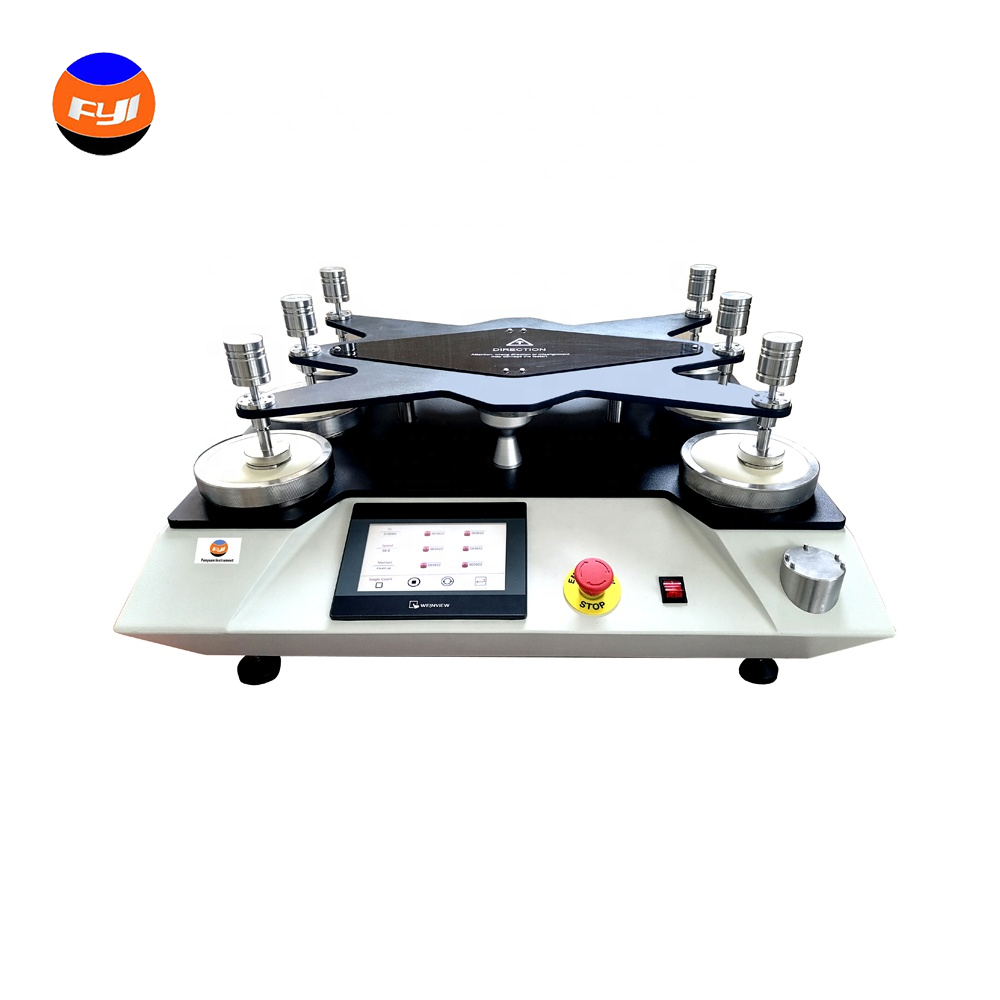

ISO 12945 ISO 12947 Martindale Abrasion and Pilling tester YG401D is used to determine the abrasion resistance of wool and wool blends woven fabrics, knitted fabrics and nonwovens under certain pressures.
YG401D
FYI
White or Black
1PCS
China
ISO 12945 ISO 12947 Martindale Abrasion and Pilling tester YG401D is used to determine the abrasion
resistance of wool and wool blends woven fabrics, knitted fabrics and nonwovens under certain pressures.
Also used for pilling property test of most fabrics (especially woolen woven fabrics) under low pressure.
It was designed to give a controlled amount of multi-directional abrasion, between the fabric surface
and a crossbred wool abrading fabric, at comparatively low pressure until thread breakdown,
or unacceptable change in color or appearance occurs.
STANDARDS | Abrasion | GB/T 21196.1, GB/T 19089, ISO 12947-1, ISO 5470-2, ISO 17704, ASTM D4966, BS 3424-24 (Method 27A), EN 388, IWS TM 112, JIS L1096, BS 5690 (Superseded by BS EN ISO 12947-1), SATRA TM31 (Method A, B) |
Pilling | GB/T 4802.2, ISO 12945-2, ASTM D4970, IWS TM 196 |
Note: Martindale Abrasion Tester can conform to but not limit to the standards above,
for more standards conformance, please contact us.
1. Adopts microcomputer of touch screen control system;
2. With memory function when power interrupted, and can save the data when power interrupted;
3. Sport guide plate is made of aluminum alloy, beautiful and endurable;
4. Rail is made of stainless steel, easy to unload and without mechanical failure
5.l Multi-working position, satisfies 4, 6, 8 or 9 specimens to be tested at the same time;
6. Stainless steel load piece, artistry and durable;
7. Two counting methods, counting up and counting down.
Number of Working Position | 6 |
Presetting Number | 0~99999 times |
Pressure Weight(abrasion) | 9kPa, 12kPa |
Pressure Weight (pilling) | 260g |
Effective diameter of Abrading head | Φ28.8mm, Φ90mm |
Abrading Device Speed | 50±2r/min |
Pressing weight | 2385±10g |
Power Supply | AC220V, 50Hz |
Instrument Dimensions (L×W×H) | 600×600×450mm |
Net Weight | 130KG |
OPTIONAL ACCESSORIES:
No. | Item |
EMPA Photographic Standard (3*4 Woven, 3*4 Knit) | |
2. | SM50 Photographic Standard |
3. | SDC Wool Abradant Fabric SM25, wide 160cm, 5m/pack |
4. | SDC Polyetherurethane Foam Sheets SM28, 25sheets/box, each 25 x 20cm |
5. | SDC Woven Felt Discs, 140mm diameter x 2.5mm thick, 24pcs/box |
6. | SDC Woven Felt Discs, 90mm diameter x 2.5mm thick, 24pcs/box |
ISO 12945 ISO 12947 Martindale Abrasion and Pilling tester YG401D is used to determine the abrasion
resistance of wool and wool blends woven fabrics, knitted fabrics and nonwovens under certain pressures.
Also used for pilling property test of most fabrics (especially woolen woven fabrics) under low pressure.
It was designed to give a controlled amount of multi-directional abrasion, between the fabric surface
and a crossbred wool abrading fabric, at comparatively low pressure until thread breakdown,
or unacceptable change in color or appearance occurs.
STANDARDS | Abrasion | GB/T 21196.1, GB/T 19089, ISO 12947-1, ISO 5470-2, ISO 17704, ASTM D4966, BS 3424-24 (Method 27A), EN 388, IWS TM 112, JIS L1096, BS 5690 (Superseded by BS EN ISO 12947-1), SATRA TM31 (Method A, B) |
Pilling | GB/T 4802.2, ISO 12945-2, ASTM D4970, IWS TM 196 |
Note: Martindale Abrasion Tester can conform to but not limit to the standards above,
for more standards conformance, please contact us.
1. Adopts microcomputer of touch screen control system;
2. With memory function when power interrupted, and can save the data when power interrupted;
3. Sport guide plate is made of aluminum alloy, beautiful and endurable;
4. Rail is made of stainless steel, easy to unload and without mechanical failure
5.l Multi-working position, satisfies 4, 6, 8 or 9 specimens to be tested at the same time;
6. Stainless steel load piece, artistry and durable;
7. Two counting methods, counting up and counting down.
Number of Working Position | 6 |
Presetting Number | 0~99999 times |
Pressure Weight(abrasion) | 9kPa, 12kPa |
Pressure Weight (pilling) | 260g |
Effective diameter of Abrading head | Φ28.8mm, Φ90mm |
Abrading Device Speed | 50±2r/min |
Pressing weight | 2385±10g |
Power Supply | AC220V, 50Hz |
Instrument Dimensions (L×W×H) | 600×600×450mm |
Net Weight | 130KG |
OPTIONAL ACCESSORIES:
No. | Item |
EMPA Photographic Standard (3*4 Woven, 3*4 Knit) | |
2. | SM50 Photographic Standard |
3. | SDC Wool Abradant Fabric SM25, wide 160cm, 5m/pack |
4. | SDC Polyetherurethane Foam Sheets SM28, 25sheets/box, each 25 x 20cm |
5. | SDC Woven Felt Discs, 140mm diameter x 2.5mm thick, 24pcs/box |
6. | SDC Woven Felt Discs, 90mm diameter x 2.5mm thick, 24pcs/box |
