YG522N
FYI
Silver+Blue
1pcs
China
APPLICATION:

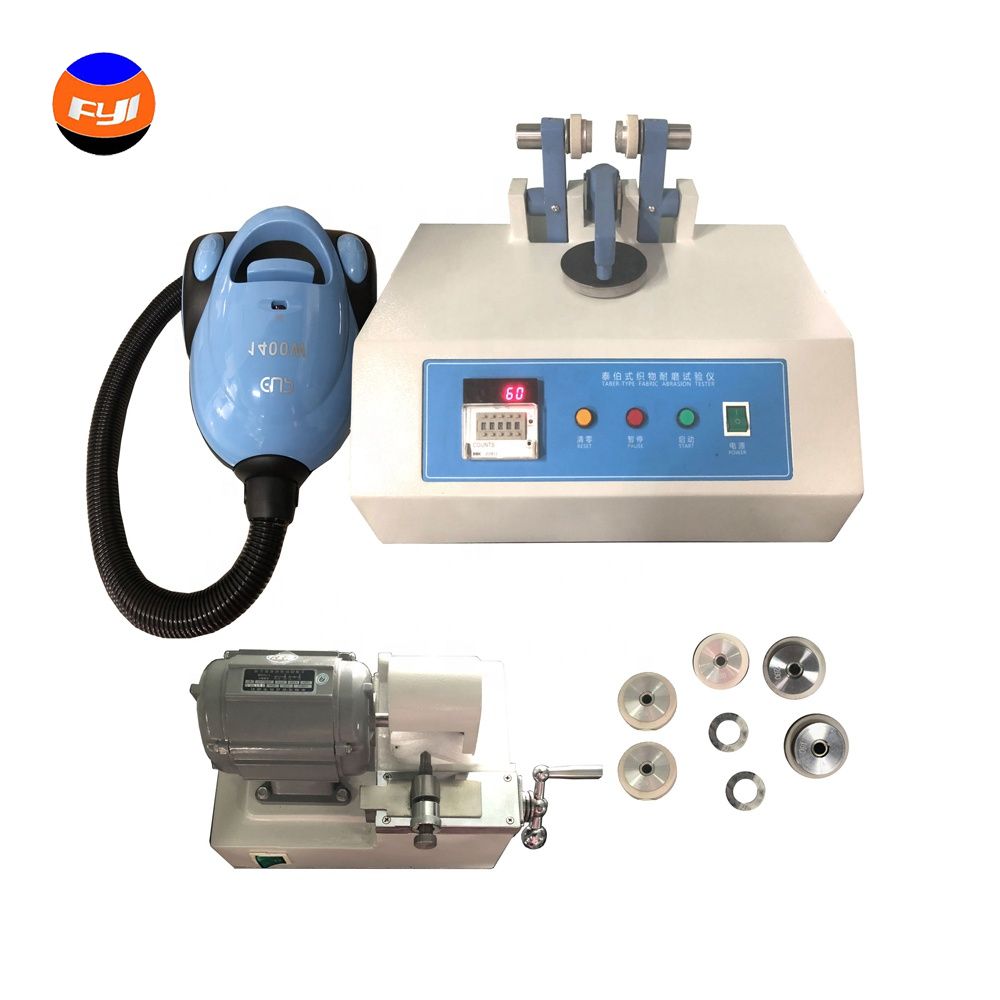

Taber Abrasion Resistance Tester Y522N is used to test the abrasive wear resistance of textile fabrics,
coated fabrics, etc. The test specimen is mounted on the rotary platform and abraded by a pair
of abrasive wheels under a specified load. Resistance to abrasion is evaluated by observing the
wear condition or weighing the mass loss after abrasion.
RELATED STANDARDS:
STANDARDS | ASTM D3884, D4060, D3389 |
Note: this Taber Abrasion Resistance Tester Y522N can conform to but not limit to the standards above,
for more standards conformance, please contact us.
FEATURES :
1. Equipped with a counter to record the number of revolutions.
The test can be stopped automatically when the counter reaches a preset value.
2. A variety of standard abrasive wheels are optional to meet different test requirements and ensure accurate test results.
KEY SPECIFICATION:
Turntable diameter | |
Speed of rotation | 60r/min |
Distance between the inside face of abrasive wheel and the center point | 26.2mm |
Load weight | 125g(2 pcs), 250g(2 pcs), 750g(2 pcs) |
Counting range | 1 ~ 99,999, LED display |
Power supply | AC220V, 50Hz |
Dimensions | 740*540*330mm (L*W*H) |
Net weight | 50kg |
STANDARD CONFIGURATION :
No. | Item | Quantity |
1. | Main machine (excluding abrasive wheels) | 1 set |
2. | Vacuum cleaner | 1 set |
3. | Clamp ring | 3 pcs |
4. | Load weight (125g, 250g, 750g) | 2 pcs for each |
5. | Brush | 1 pc |
