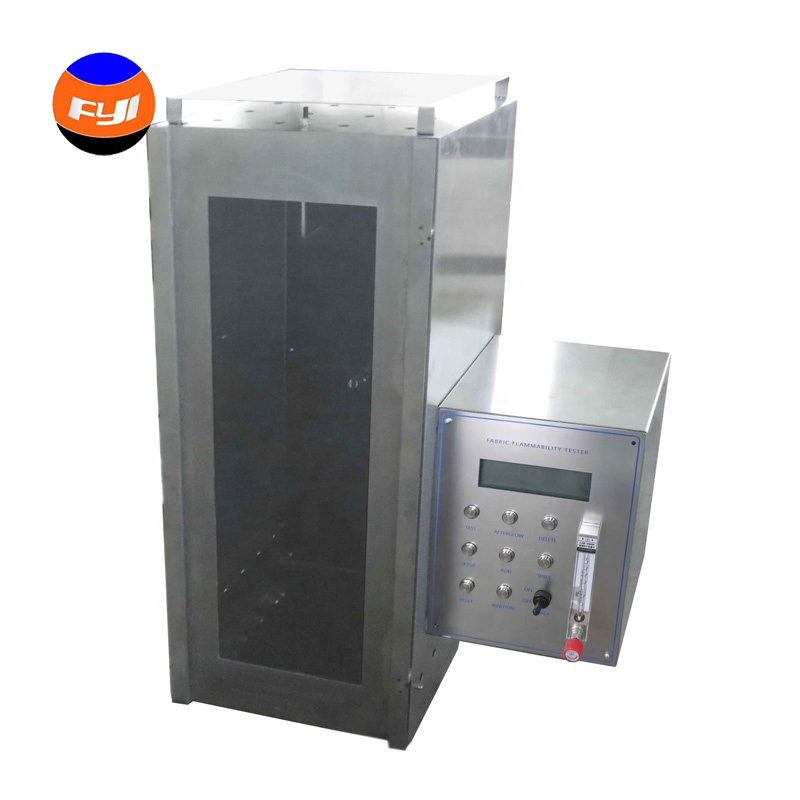

ASTM D6413 16 CFR Part 1615 Vertical Flammability Tester YG815A is used to determine the flame spread properties of vertically-oriented specimens from children’s sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture of textiles in a vertical direction. The flame spread properties are expressed by the after-flame time, after-glow time and char length.
YG815A
FYI
1PCS
Made in China
APPLICATION:
ASTM D6413 16 CFR Part 1615 Vertical Flammability Tester YG815A
is used to determine the flame spread properties of vertically-oriented specimens from children’s sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture of textiles in a vertical direction. The flame spread properties are expressed by the after-flame time, after-glow time and char length.
RELATED STANDARDS:
STANDARDS | GB/T 5455 | ASTM D6413 | 16 CFR Part 1615 |
Note: this ASTM D6413 16 CFR Part 1615 Vertical Flammability Tester can conform to but not limit to the standards above, for more standards conformance, please contact us.
FEATURES:
1.Metal buttons and LCD display;
2. Purpose-designed test chamber;
3.A stainless steel construction, large glass-viewing window;
4. Gas pipeline system special designed, low space occupied, and convenience to move;
5. With flow-meter for controlling the flame height;
6. Excellent reliability and minimum maintenance.
KEY SPECIFICATION of of ASTM D6413 16 CFR Part 1615 Flammability Testing Chamber
FYI Brand Vertical Flammability Tester
Temperature error | ±1oC |
Measuring range of flow meter | 0~60ml/min |
Required pressure of gas supply | ≤0.2Mpa |
Flame height | (40±2)mm |
Number of tests | 1~30 |
Preheat time | 1~999s, settable |
Igniting time | 1~999s, settable |
Timing range | 0.1~999.9s |
Inner diameter of burner | Φ11mm (0.43in.) |
Angle between head of burner and vertical line | 25° |
Space between top of burner and specimen | 17mm |
Power supply | AC220V, 50Hz |
Dimensions | 525×355×800mm(L×W×H) |
Weight | 35kg |
